ADF
D062/D063/D065/D066 4-122 SM
2. Lower cover [B] ( x 4)
3. Original length sensor 1 – B5 [C] (
x 1)
4. Original length sensor 2 – A4 [D] (
x 1)
5. Original length sensor 3 – LG [E] (
x 1)

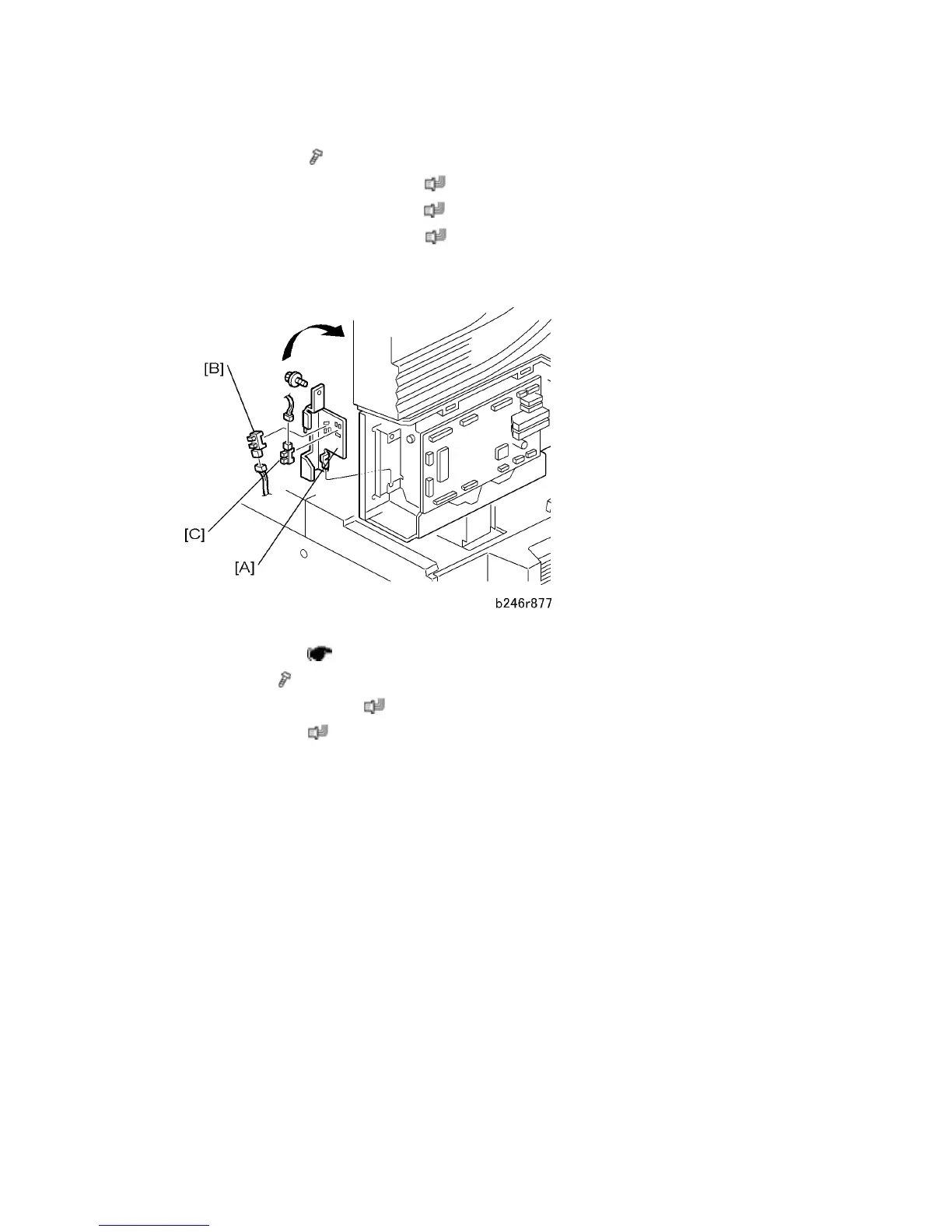

4.13.9 DF POSITION AND APS SENSORS
1. Open the ADF.
2. ADF rear cover (
p.4-115)
3. Bracket [A] (
x 1)
4. ADF position sensor [B] (
x 1)
5. APS sensor [C] (
x 1)
