Installation Requirements
D062/D063/D065/D066 2-2 SM
8. Do not install the machine at any location over 2,000 m (6,500 feet) above sea level.
9. Place the copier on a strong and level base with the front and back of the machine
within ±5 mm (0.2") of level.
10. Do not place the machine where it may be subjected to strong vibrations.
11. Do not connect the machine to a power source shared with another electrical
appliance.
12. The machine can generate an electromagnetic field which could interfere with radio or
television reception.
2.1.2 MACHINE LEVEL
Front to back: Within ±5 mm (0.2") of level
Right to left: Within ±5 mm (0.2") of level
The machine legs may be screwed up or down in order to level the machine. Set a
carpenter’s level on the exposure glass.

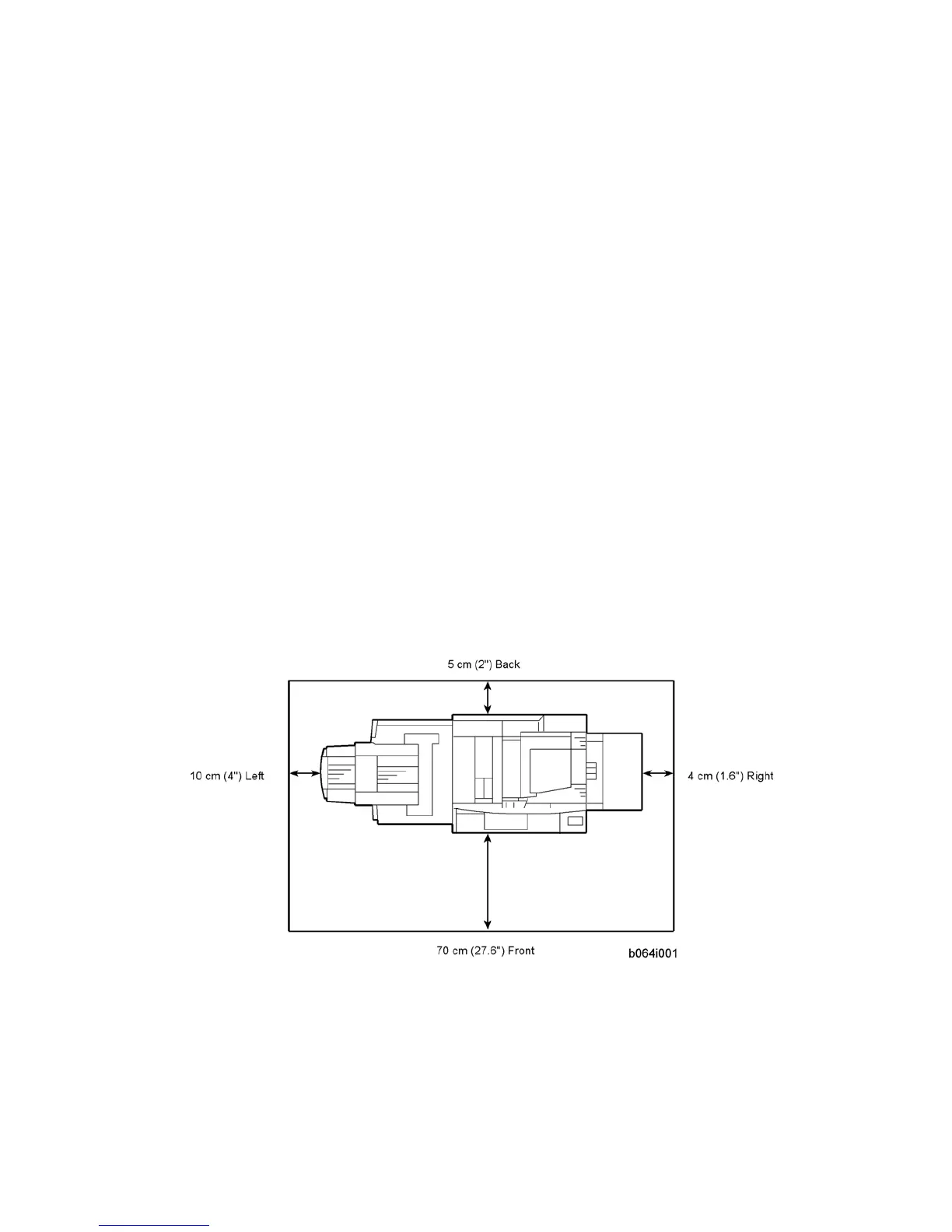

2.1.3 MINIMUM SPACE REQUIREMENTS
Place the copier near the power source, providing minimum clearance as shown below.
The same amount of clearance is necessary when optional peripheral devices are
installed.
