Fusing Unit
D062/D063/D065/D066 4-72 SM
4.9.11 FUSING/EXIT MOTOR
Remove:
 Rear upper cover (
p.4-8 "Rear Covers")

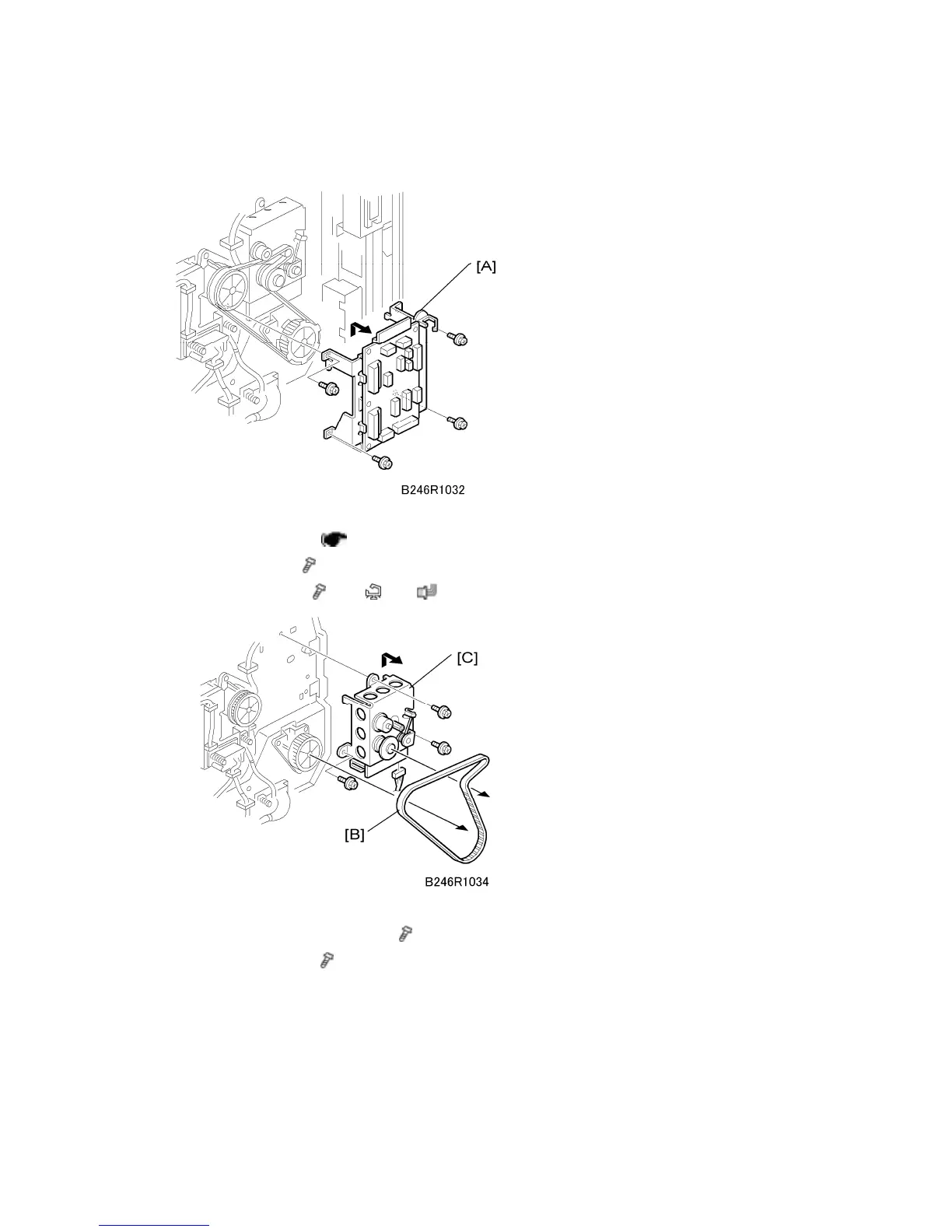

1. Open the BCU (
x 4)
2. CNB bracket [A] (
x 4, x1, x all)
3. Timing belt [B]
4. Fusing/exit motor bracket [C] (
x 3)
5. Fusing/exit motor (
x 2) inside the bracket (not shown)
