ADF
D062/D063/D065/D066 4-1
16
SM

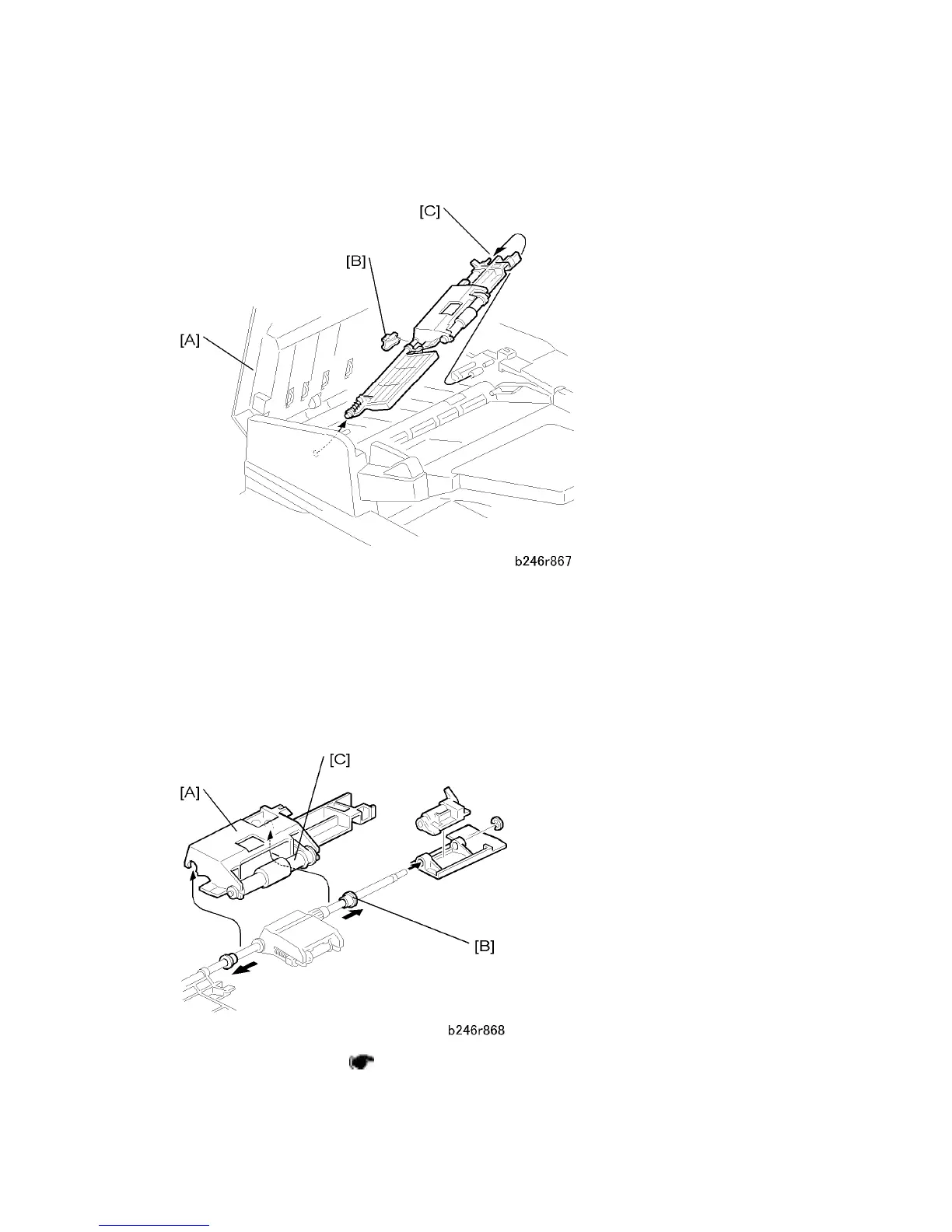

4.13.2 FEED
UNIT
1.
Open the feed cover [A].
2.
Remove the snap fitting [B].
3.
Push the feed unit slowly to the left to
disengage the shaf
t [C] on the right, then lift it
out.
4.13.3
FEED BELT AND PICK-UP ROLLER
1.
Remove the feed unit (
p.4-1
16).
2.
Remove the pick-up roller unit [A].
302
