Cover Interposer Tray (B704)
SM 2-75 D062/D063/D065/D066
Installation
5. Attach the bottom front cover extension [D] ( x 2, M4 x 8).
Attach this cover first.
6. Attach the top front cover extension [E] (
x 2, M4 x 8).
7. Set two screws into the holes provided for the rear cover extension [F] (
x 2, M3 x 6).
8. Set the keyholes of the rear cover extension over of the heads of the screws.
9. Press up on the bottom of the rear cover extension to close the gap at the top of the
cover, then tighten the screws.

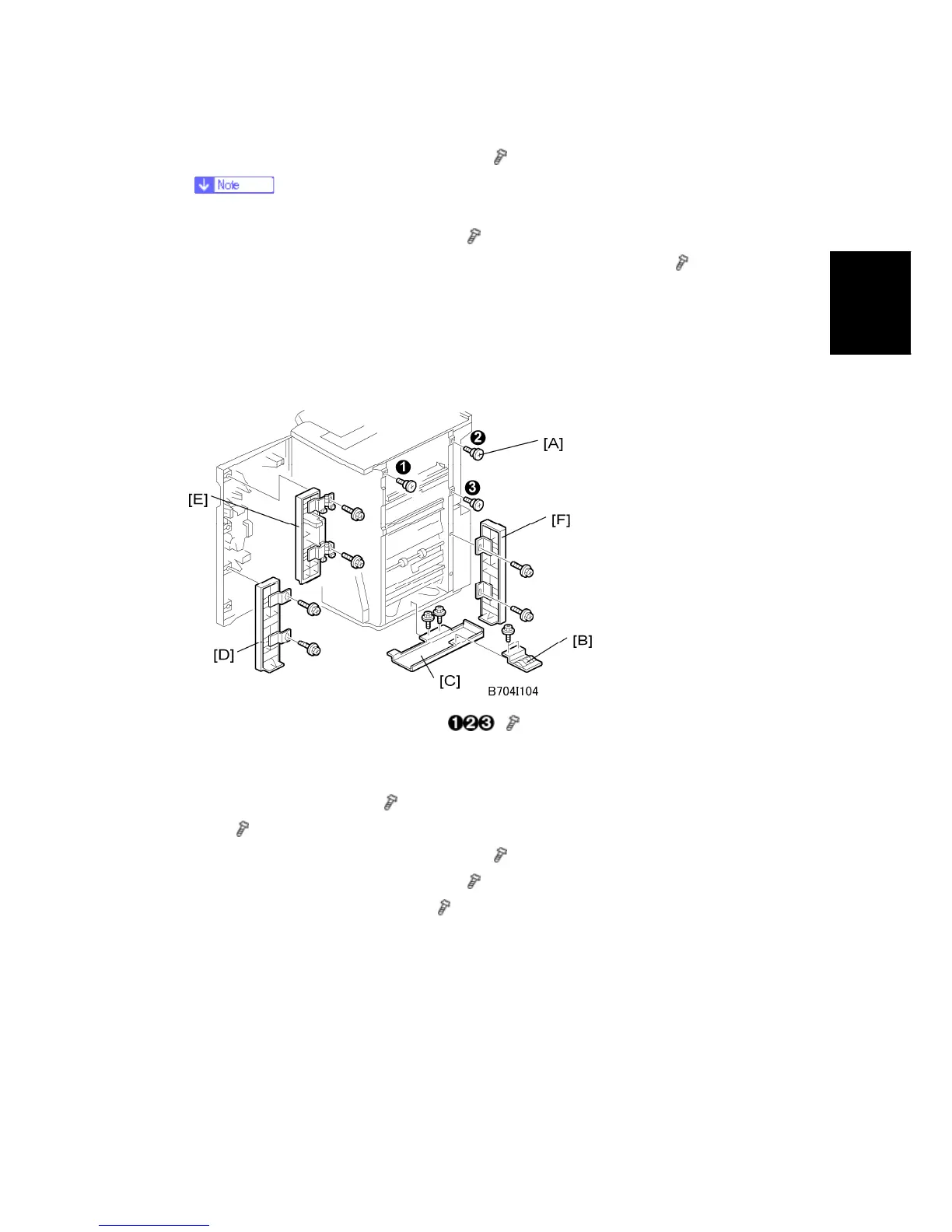

Attaching the Extensions for the D373/D374
1. Attach the three shoulder screws [A]
( x 3).
2. If the finisher has been previously installed, remove the ground plate [B] from the
finisher and save the screws
3. Attach the bottom plate [C] (
x 2, M3 x 6) then attach the ground plate to the bottom
plate (
x 2).
4. Attach the bottom front cover extension [D] (
x 2, M4 x 8).
5. Attach the top front cover extension [E] (
x 2, M4 x 8).
6. Attach the rear cover extension [F] (
x 2, M3 x 6).
