Corner Stapling
D373/D374 50 SM
size. This pushes the positioning roller [C] onto the sheet and pushes it down onto
bottom fence. This aligns the edge of the stack.
Next, the jogger fence motor:
 Switches on again and moves the jogger fences to within 2.6 mm of the sides of the
stack to align the sides of the stack.
 Reverses and moves the fences to the standby position (7.5 mm away for the sides)
and waits for the next sheet.
 The jogger fence HP sensor [D] switches off the jogger motor at the end of the job.
After the last sheet feeds:
 The stapling edge pressure plate solenoid [E] (SOL4) switches on and pushes the
pressure plate [F] onto the stack to press down the edge for stapling.
 The corner stapler staples the stack.

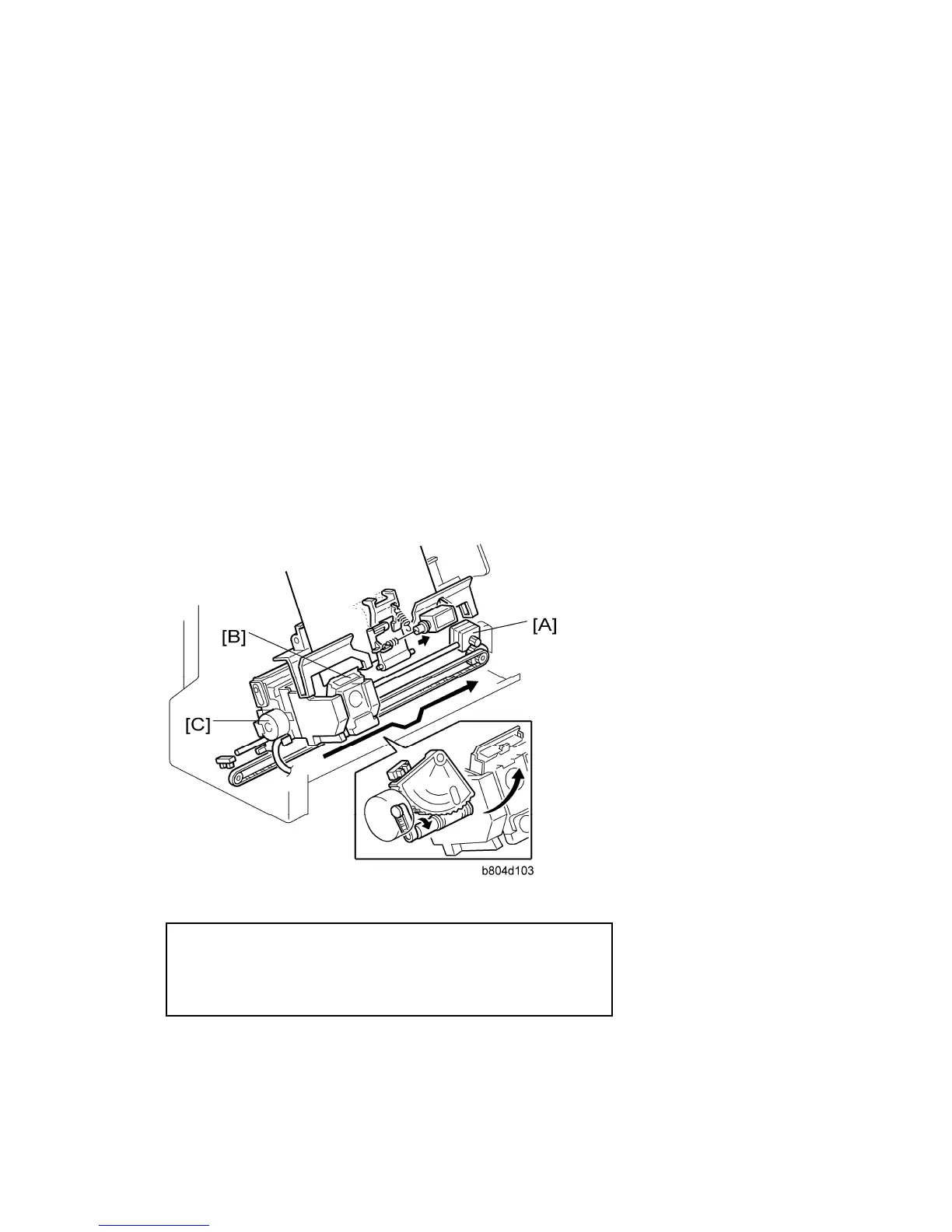

2.5.2 STAPLER MOVEMENT
[A]: Stapler Movement Motor
[B]: Stapler
[C]: Stapler Rotation Motor
