Ricoh D065 - Reinstalling; Td Sensor

Development Unit
SM 4-47 D062/D063/D065/D066
Replacement
and
Adjustment
seals.
Reinstalling

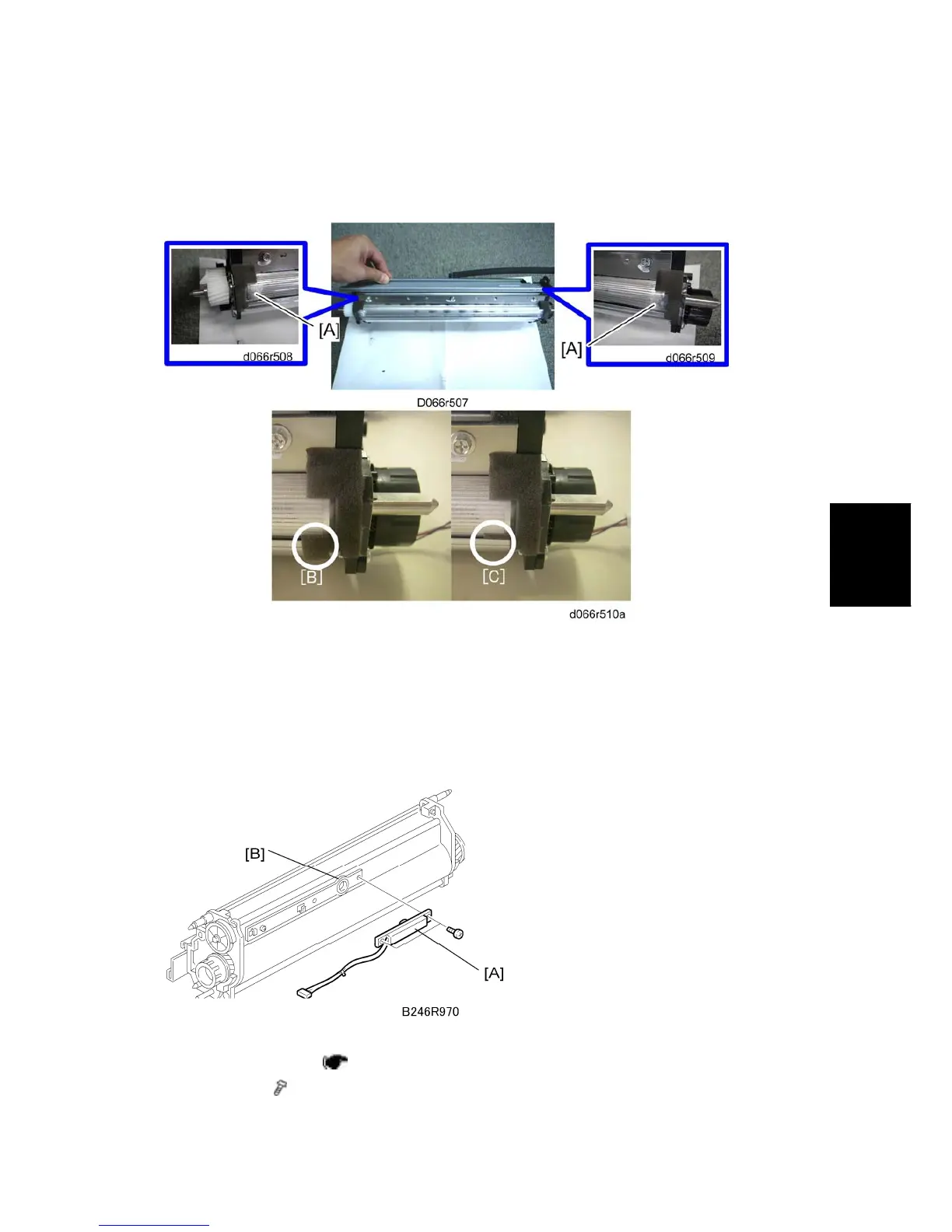

1. Attach the seals [A] as shown in the above diagrams.
2. Reinstall the entrance seal bracket.
 [B] is incorrect.
 [C] is correct.
4.7.4 TD SENSOR
Remove:
 Development unit (
p.4-25 "Development Unit Removal")
1. TD sensor (
x 1) [A]
