OVERVIEW
SM 9 B704
Cover
Interposer
Tray
B704

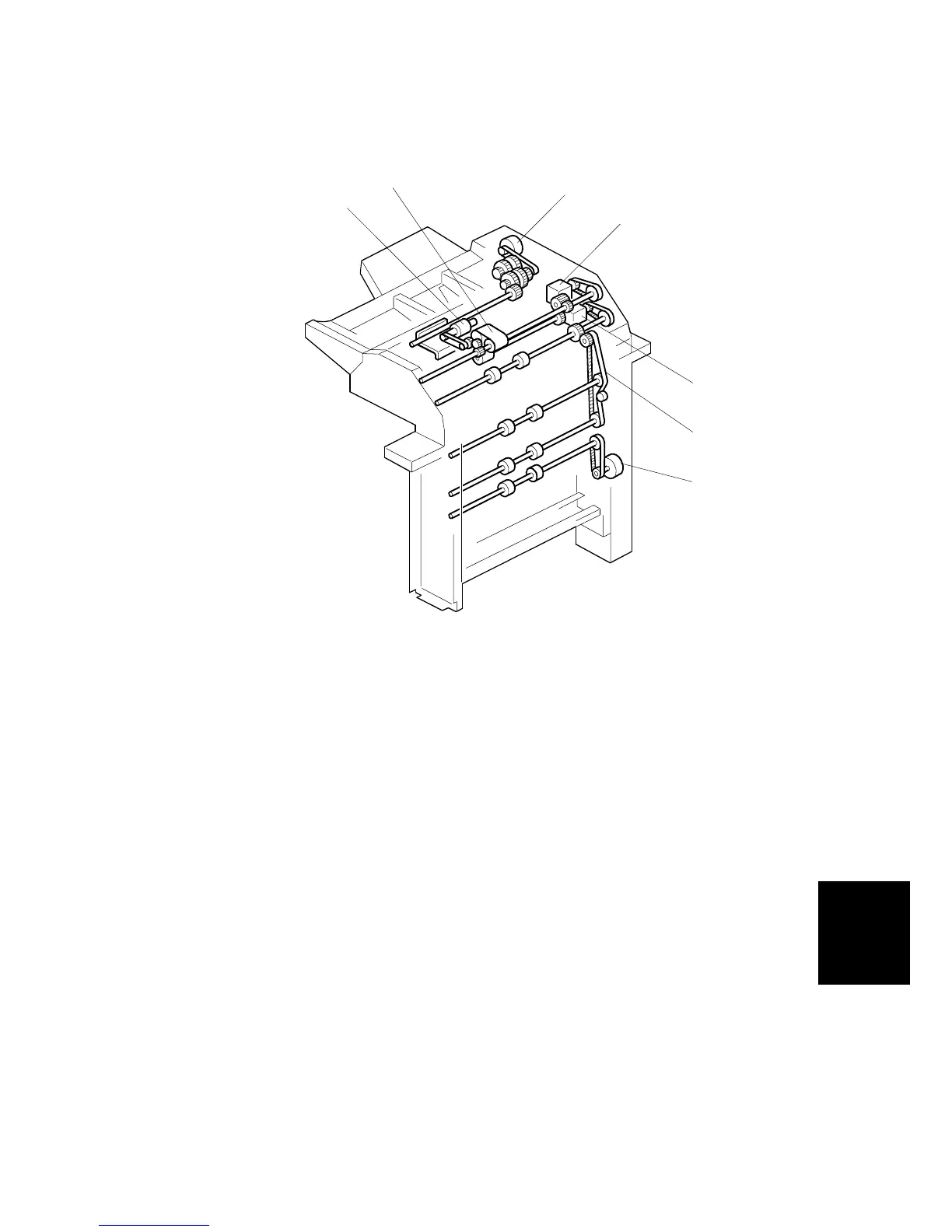

2.1.2 DRIVE LAYOUT
1. Pick-up Roller
2. Feed Belt
3. Bottom Plate Lift Motor
4. Feed Motor
5. Transport Motor
6. Timing Belt
7. Vertical Transport Motor
B470D003.WMF
4
6
7
5
3
1
2
