Paper Feed
D062/D063/D065/D066 4-86 SM

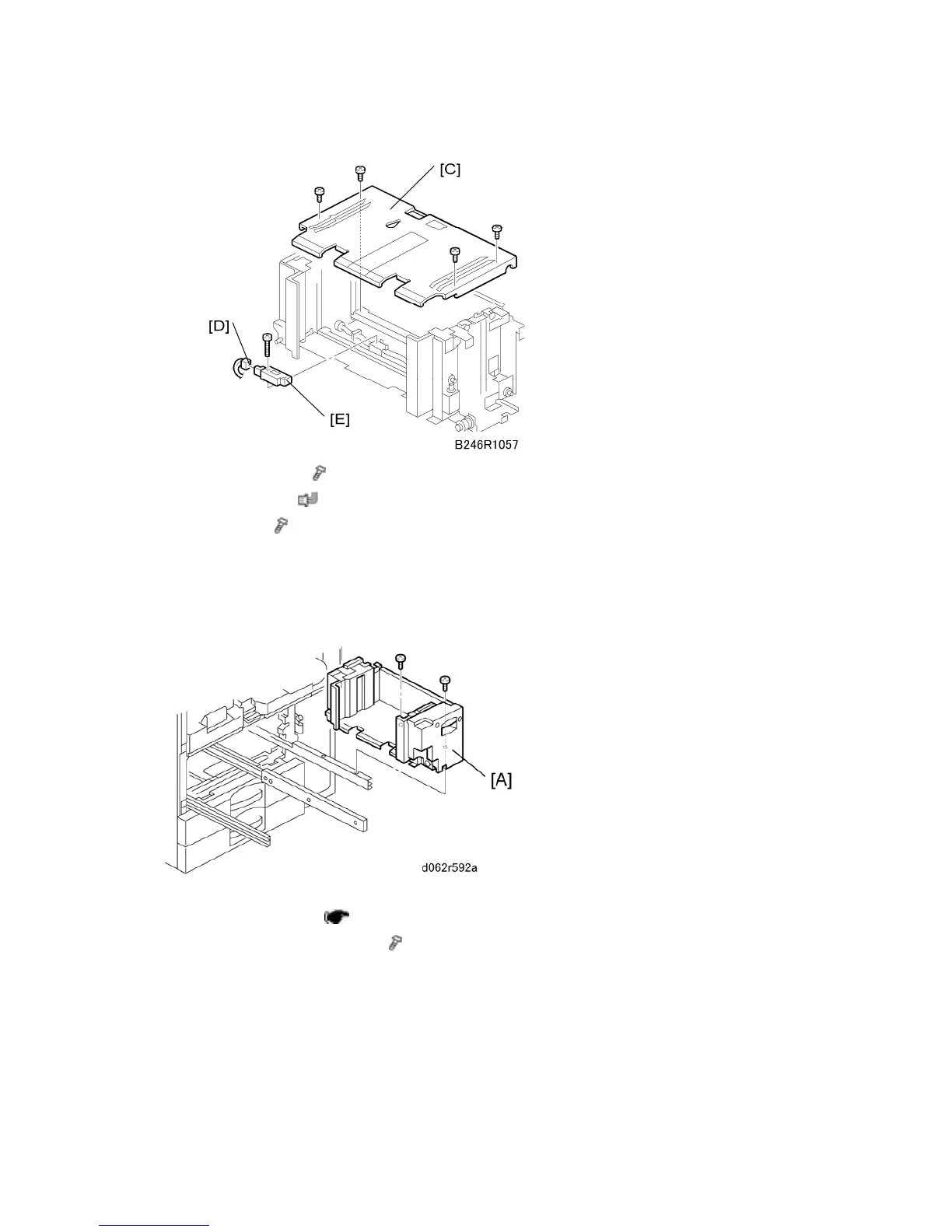

5. Bottom plate [C] (
x 4)
6. Connector [D] (
x 1)
7. Sensor [E] (
x 1)
4.11.5 BOTTOM PLATE LIFT WIRE REPLACEMENT
Before replacing the rear bottom plate lift wire, remove the front bottom plate lift wire. The
shaft must be removed to replace the lift wire of the bottom plate.
Remove:
 Right tandem tray (
p.4-82 "Tandem Tray")
1. Remove the inner cover [A] (
x 2)
