Paper Feed
D062/D063/D065/D066 4-100 SM

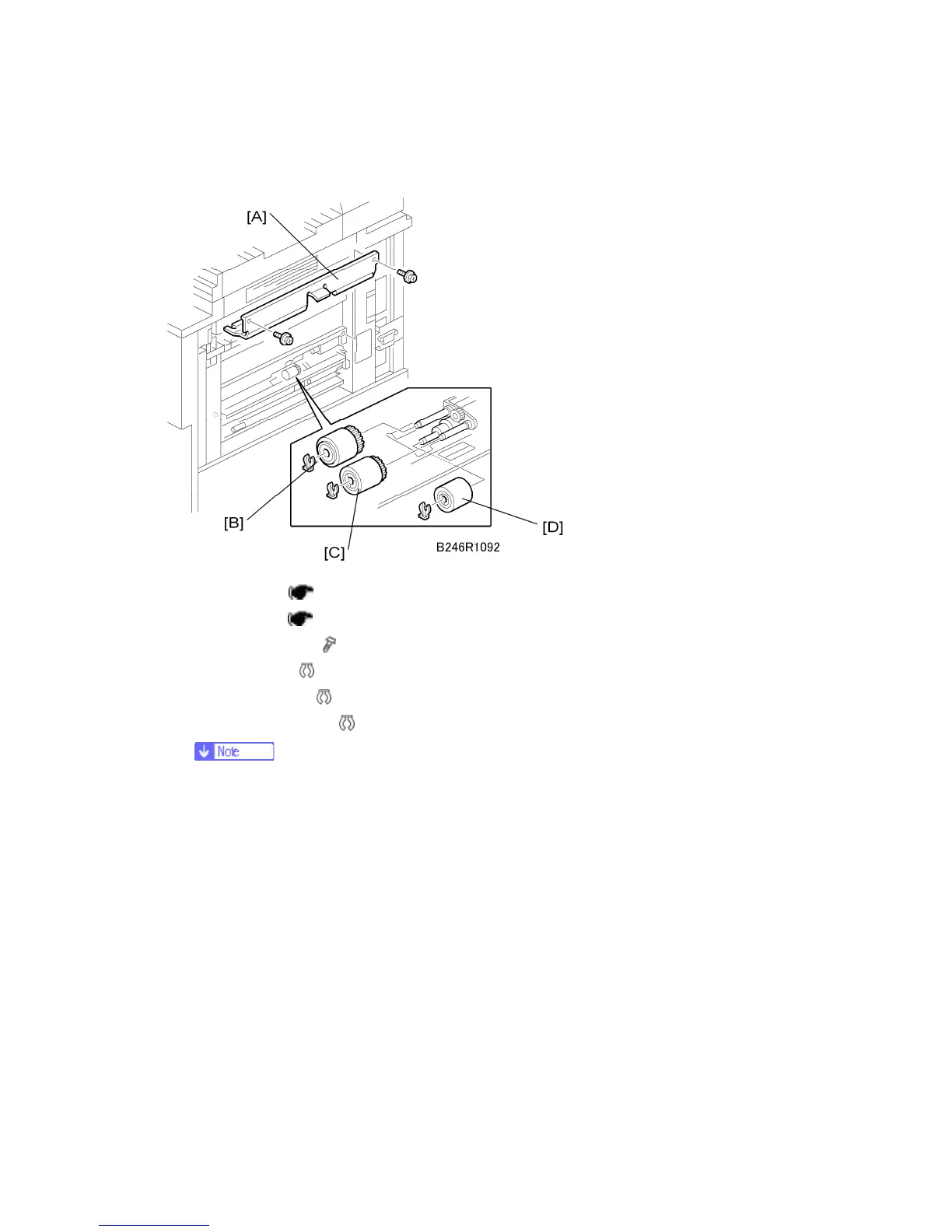

4.11.14 BY-PASS TRAY ROLLERS
1. Right covers (
p.4-7)
2. By-pass tray (
p.4-98 "By-Pass Paper Size Detection Board")
3. By-pass cover [A] (
x 2)
4. Feed roller [B] (
x 1)
5. Pick-up roller [C] (
x 1)
6. Separation roller [D] (
x 1)
Even though the FRR mechanisms for the tandem tray (Tray 1), universal
trays (Tray 2, Tray 3) by-pass tray and ADF are similar, the only rollers that are
interchangeable are the tandem and universal trays (Trays 1, 2, 3).
Do not touch the surface of new rollers during replacement.
