REPLACEMENT AND ADJUSTMENT

B513/B531 20 SM

3.7.1 STACKING ROLLER/ROLLER DRAG MOTORS, RETURN HP

SENSOR

1. Do the procedures to remove the front door and all covers, with the exception

of the left lower cover and top cover (labeled [C]: and [E]).

NOTE: Be sure to lower the shift tray by pulling the gear toward you. The shift

tray must be down.

2. Remove the shift tray motor. ( 3.7)

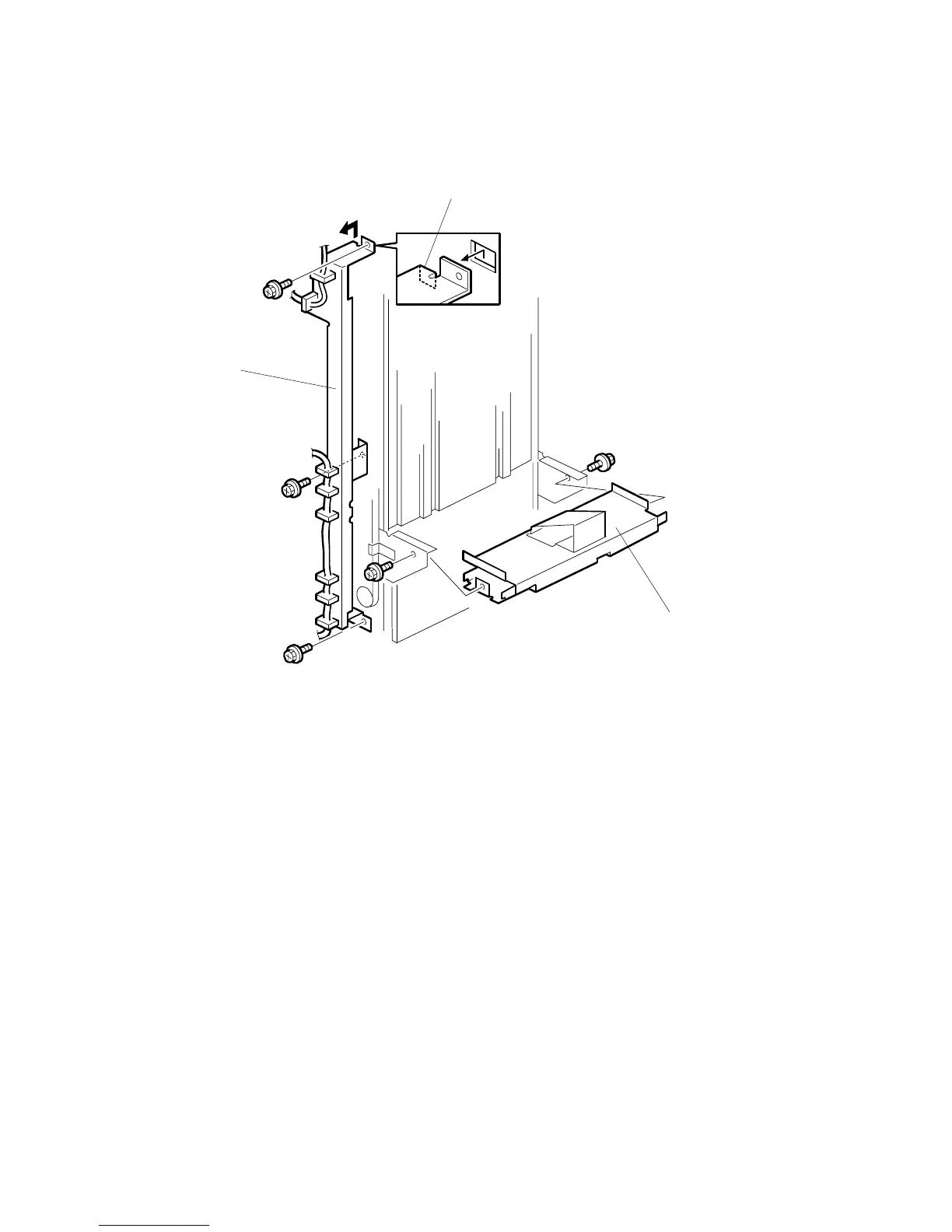

3. Remove the left stay [A] ( x 3).

4. Unhook the stay at top [B].

5. Remove the shift tray mounting plate [C] ( x 2).

B478R526.WMF

[A]

[B]

[C]
