Ricoh D065 User Manual

Main Unit
SM 3 D373/D374
Finisher
D373/D374
1.2 MAIN UNIT

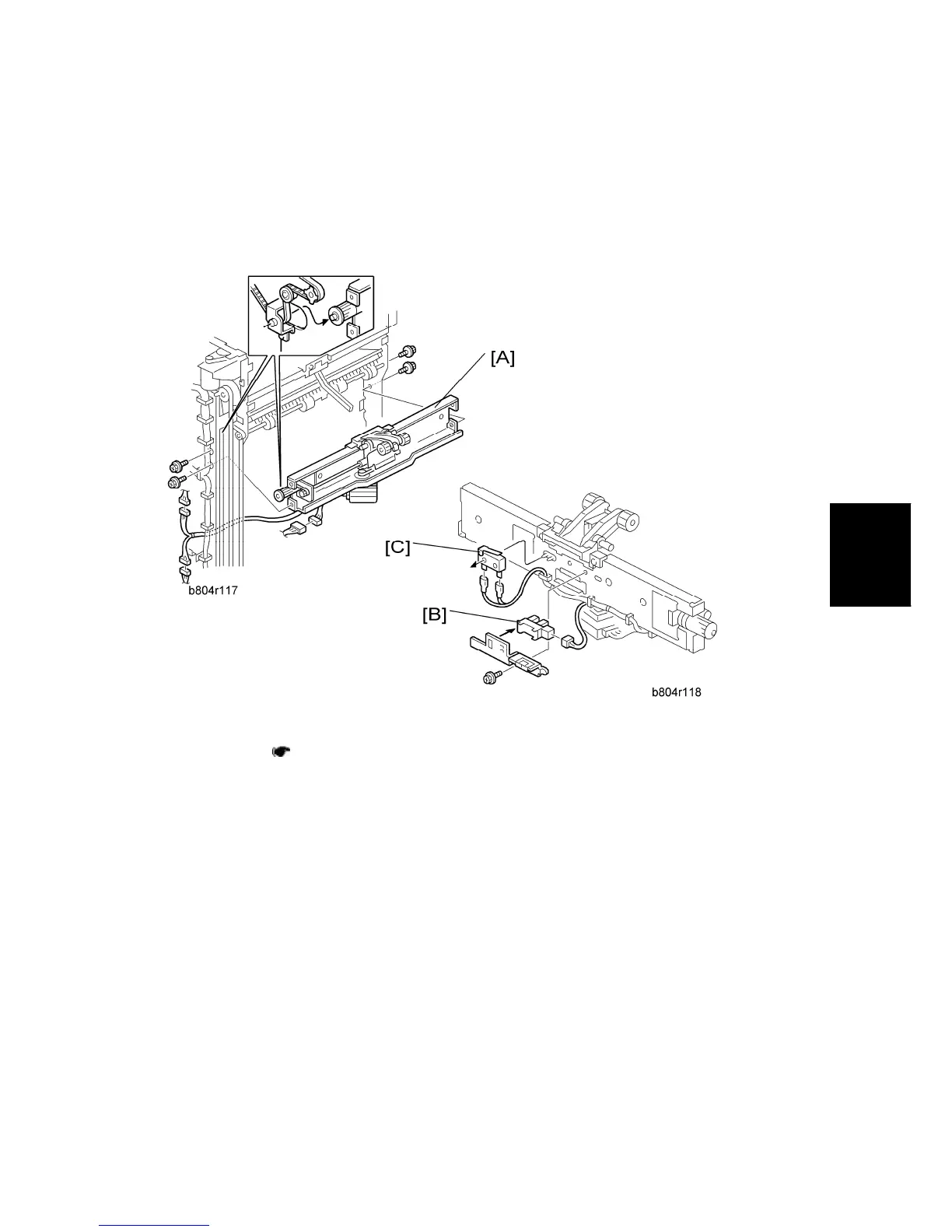

1.2.1 UPPER TRAY LIMIT SENSOR, LIMIT SWITCH
1. Front door, front left side cover, rear cover, upper cover ( "Exterior Cover")
2. End fence (
1.1.2 "Upper Tray, End Fence")
3. Upper tray exit mechanism [A] ( x4,  x3)
4. Upper tray limit sensor [B] ( x1,  x1)
5. Upper tray limit switch [C] ( x2)
