Fold Unit
D373/D374 12 SM

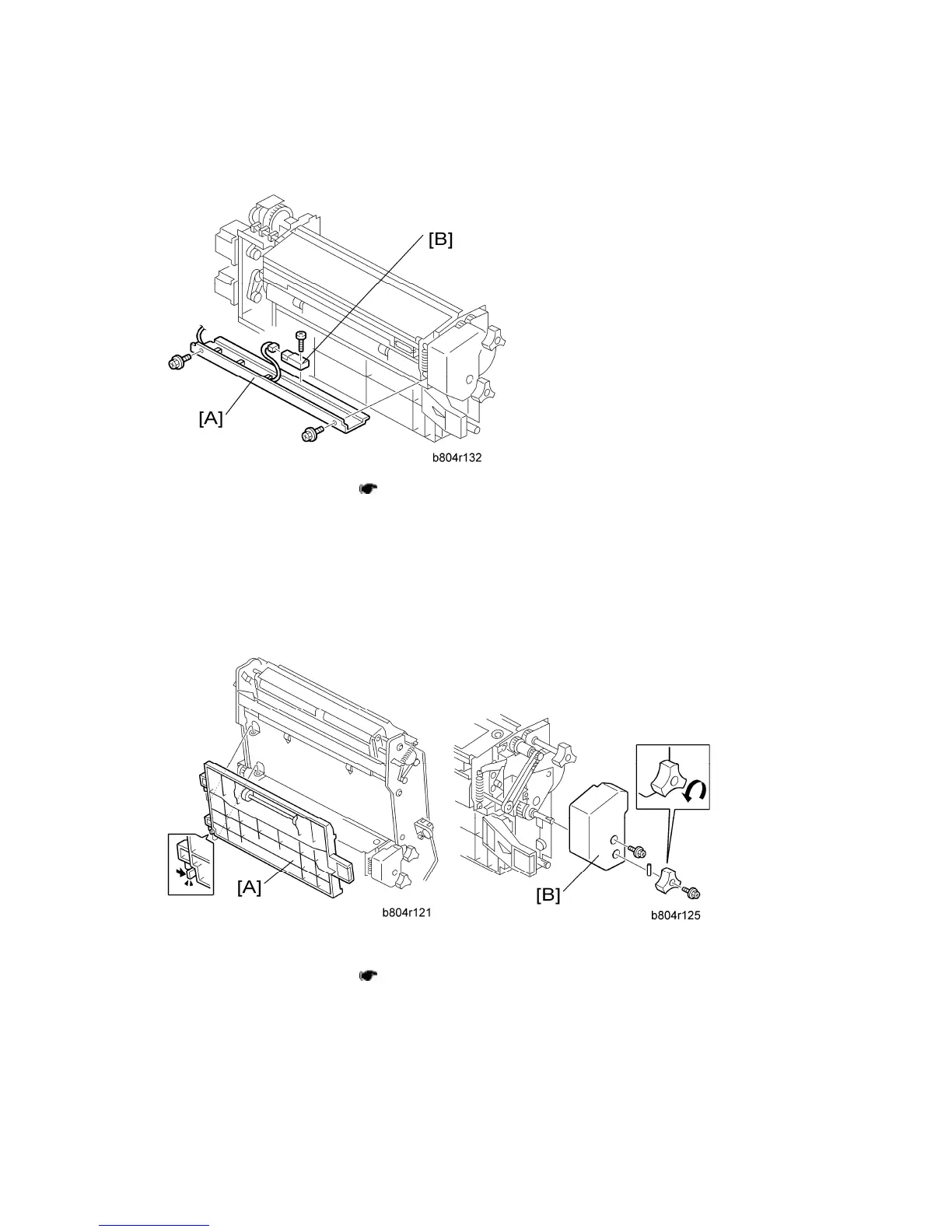

1.4.2 FOLD UNIT ENTRANCE SENSOR
1. Pull out the stapler unit (
1.3.2 "Positioning Roller").
2. Fold unit entrance sensor bracket [A] ( x2)
3. Fold unit entrance sensor [B] (S26) ( x1,  x1)
1.4.3 FOLD UNIT EXIT SENSOR
1. Open the front door.
2. Pull out the stapler unit (
1.3.2 "Positioning Roller").
3. Fold unit vertical guide plate [A]
4. Fold unit inner cover [B] ( x2, Spring pin x1)
