Drum Unit
SM 4-37 D062/D063/D065/D066
Replacement
and
Adjustment

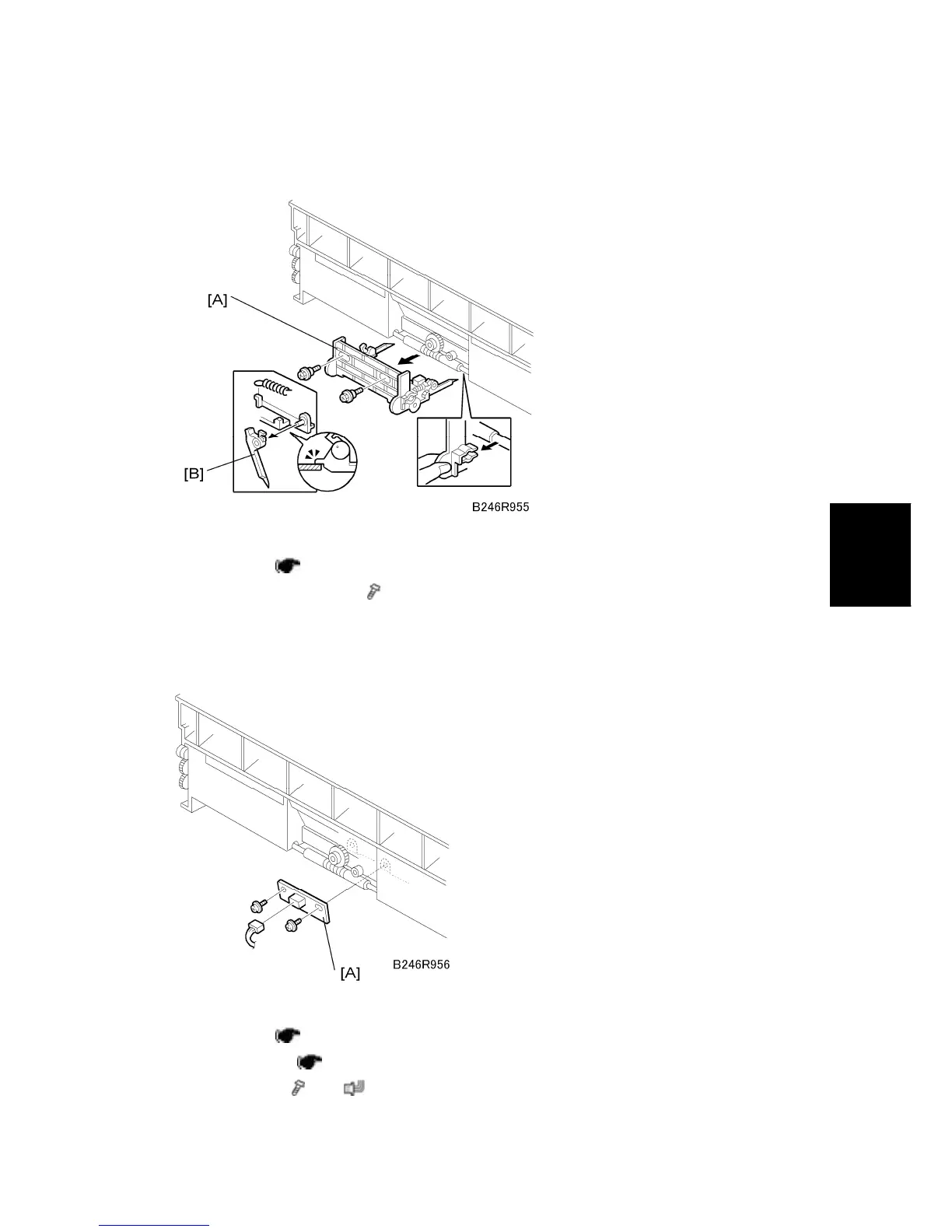

4.6.12 PICK-OFF PAWLS
Remove:
OPC drum (
p.4-30)
1. Pick-off pawl bracket [A] (
x 2)
2. Pick-off pawl [B] (spring x 1)
4.6.13 ID SENSOR
Remove:
OPC drum (
p.4-25)
Pick-off pawls (
p.4-37)
1. ID sensor [A] (
x 2, x 1)
