Fusing Unit
SM 4-71 D062/D063/D065/D066
Replacement
and
Adjustment
width.
The nip band width can be adjusted by changing the position of the springs [B]
on either end of the pressure roller.
The fusing temperature can also be adjusted with SP1105 (Fusing
Temperature Adjustment) for Normal, OHP, and Thick Paper.
4.9.10 FUSING UNIT EXIT SENSOR
Remove:
Fusing unit (
p.4-57)

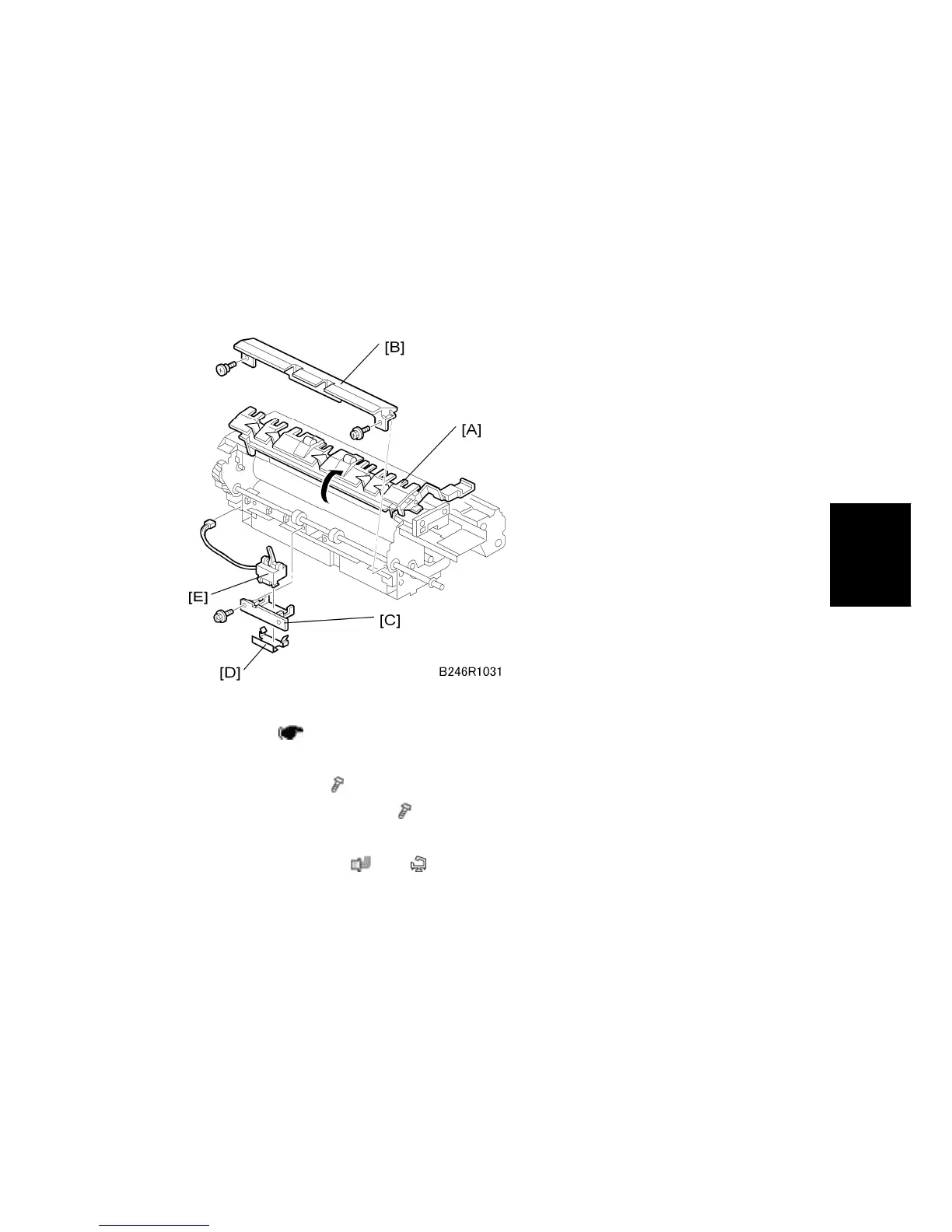

1. Open the hot roller stripper pawl unit [A]
2. Exit guide plate [B] (
x 2)
3. Fusing exit sensor holder [C] (
x 2)
4. Plate spring [D]
5. Fusing exit sensor [E] (
x 1, x 3)
