PCBs and HDD
SM 4-105 D062/D063/D065/D066
Replacement
and
Adjustment
4.12 PCBS AND HDD

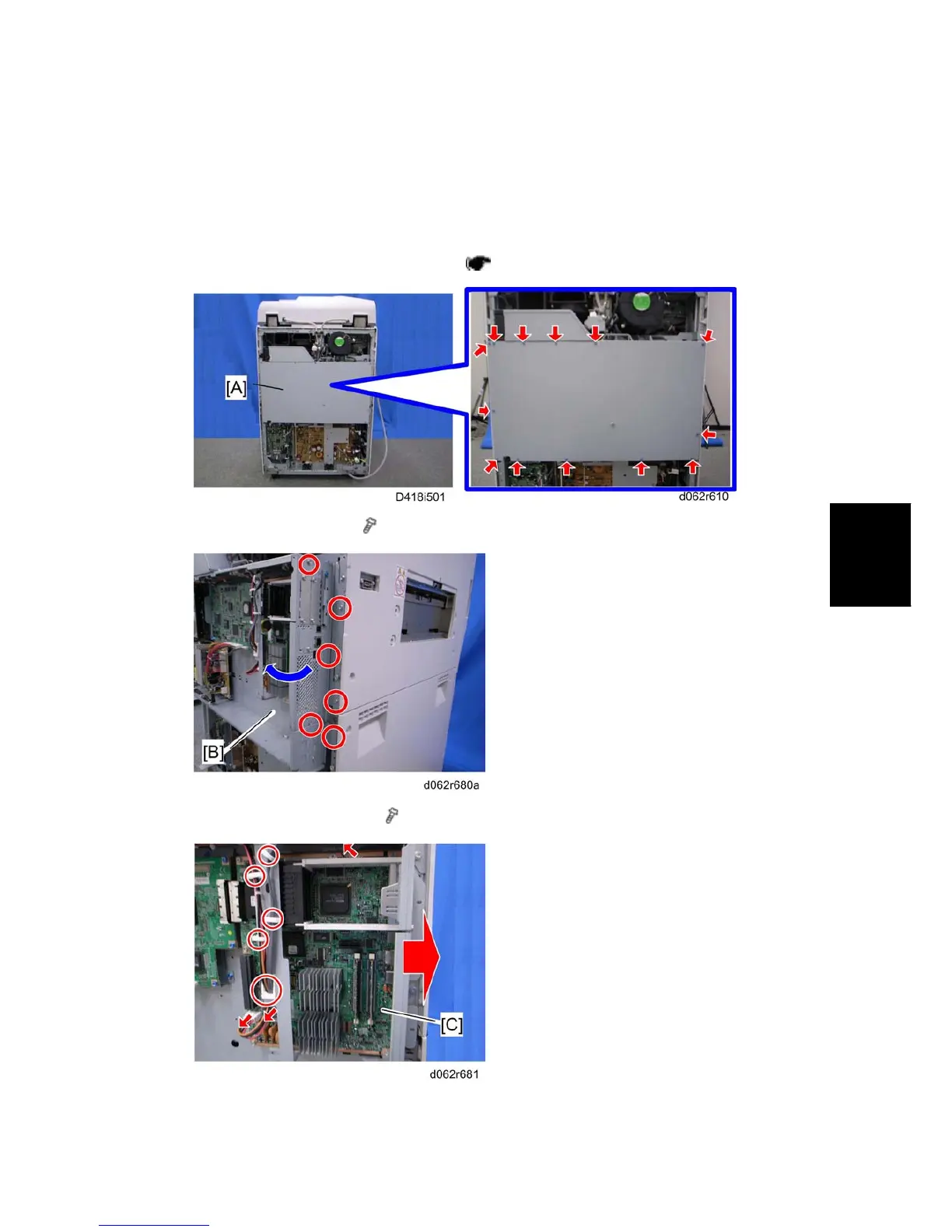

4.12.1 CNT BOARD (CONTROLLER BOARD)
1. Rear upper cover and rear lower cover ( p.4-8)
2. Controller box cover [A] (
x 13)
3. Open the controller box [B] (
x 6)
