6.5 TIMING CHARTS

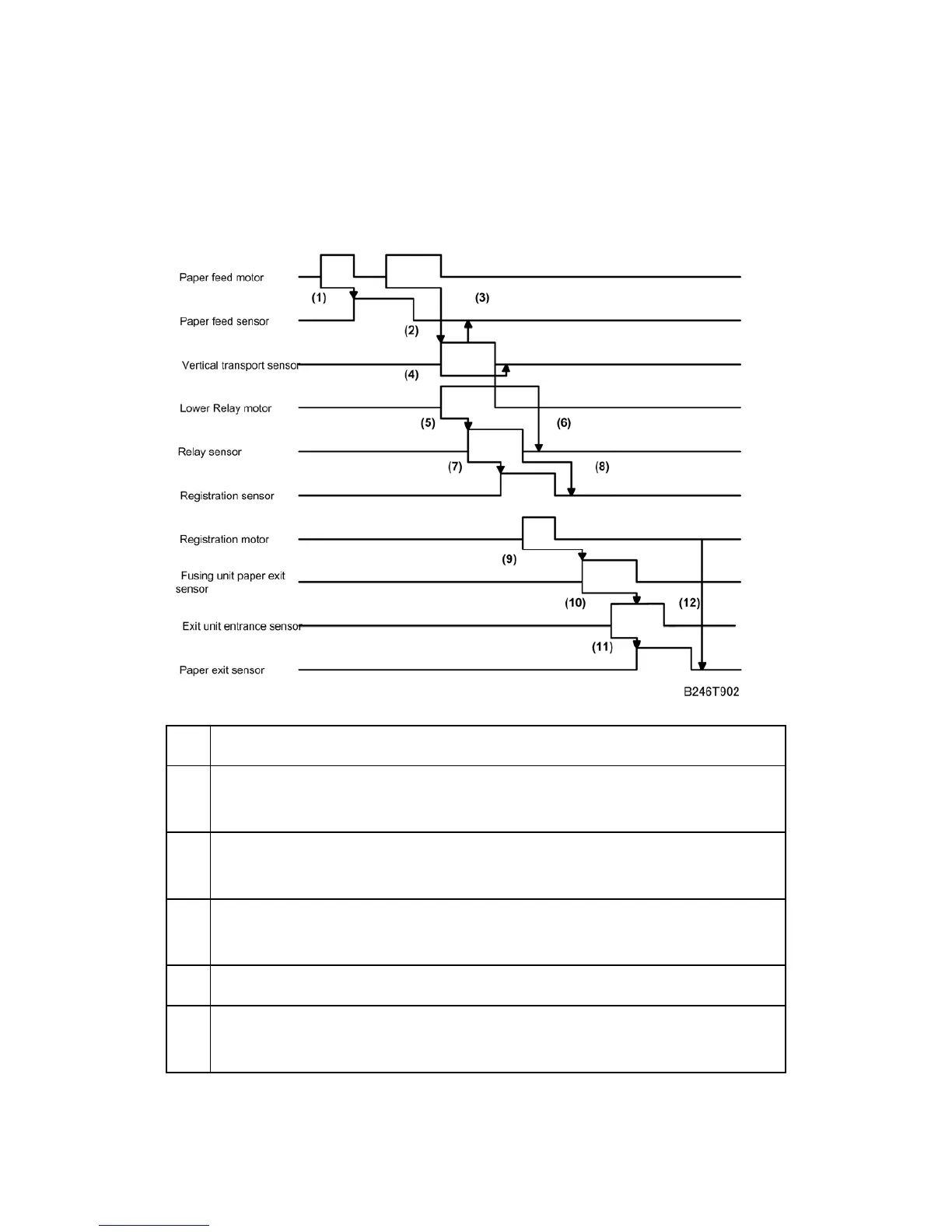

6.5.1 FEED, TRANSPORT, FEED OUT: FACE-UP
(1): Paper feed motor ON > Paper feed sensor does not switch ON at the correct time.
(2):
Paper feed motor ON > Vertical transport sensor does not switch ON at the correct
time.
(3):
Vertical transport sensor ON> Paper feed sensor does not switch OFF at the
correct time.
(4):
Vertical transport sensor ON > Vertical transport sensor does not switch OFF at the
correct time.
(5): Lower relay motor ON> Relay sensor does not switch ON at the correct time.
(6):
Vertical transport sensor OFF > Relay sensor does not switch OFF at the correct
time.
