Electrical Component
s: 2nd Stopper
SM 31
D454
Multi-Folding
Unit FD5000
D454
3.

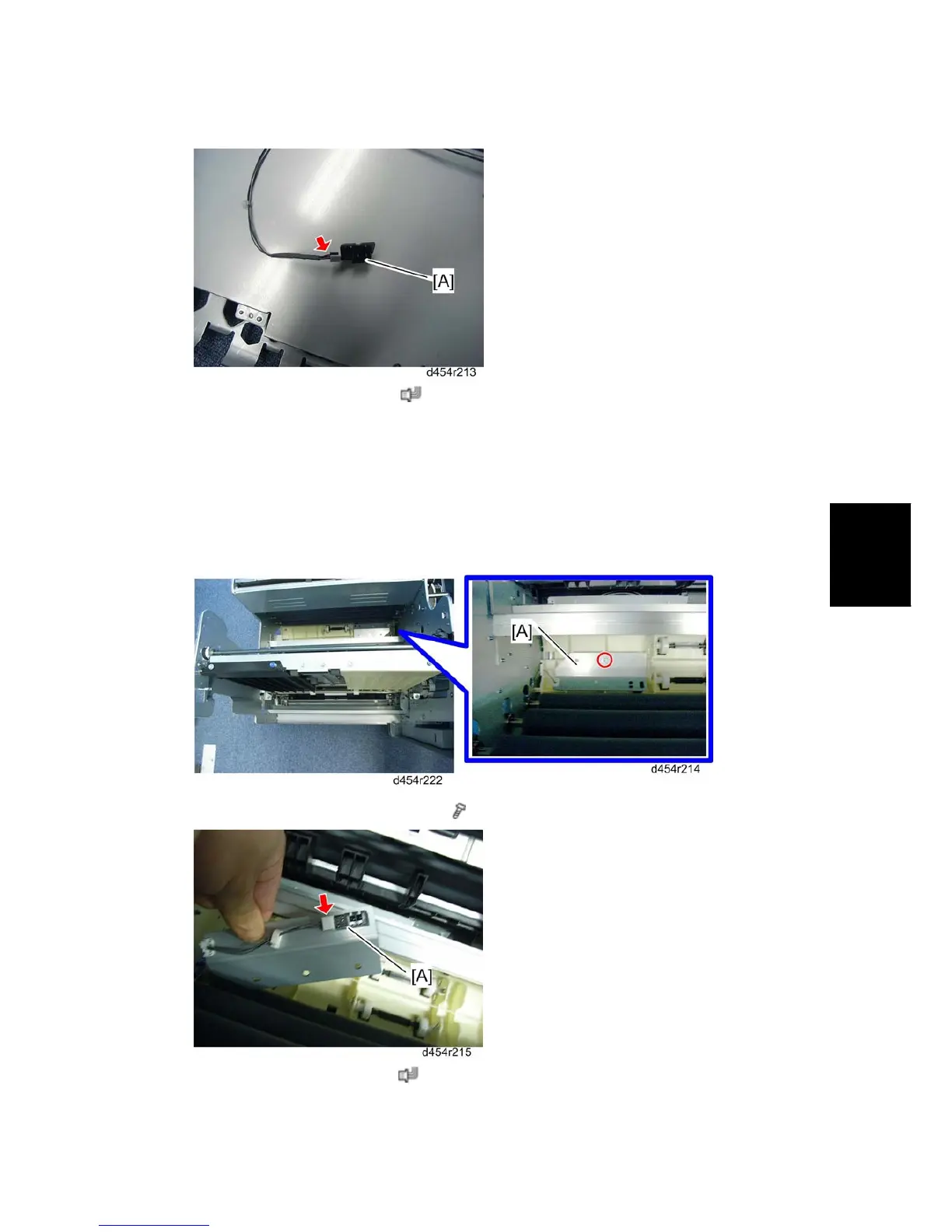

2nd stopper paper sensor [A] (
x
1)
1.4.5
BYPASS EXIT PAPER SENSOR
1.
Pull out the folding unit drawer
.
2.
2nd stopper unit (
p.27)
3.
Bypass exit p
aper sensor bracket [A] (
x
1)
4.
Bypass exit p
aper sensor [A] (
x
1)
1249
