Electrical Components: Rear Side
SM 11 D454
Multi-Folding
Unit FD5000
D454

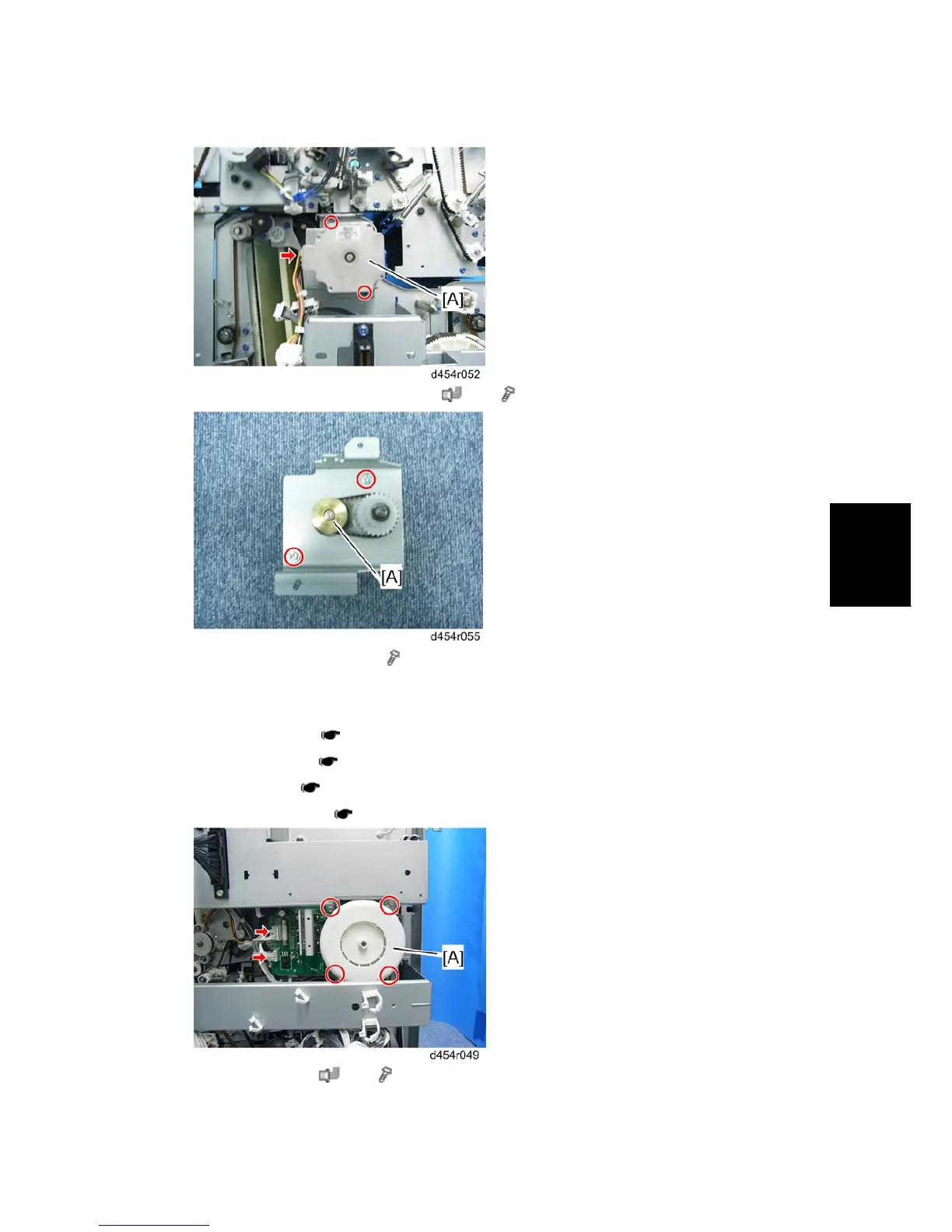

5. Dynamic roller lift motor bracket [A] (
x 1, x 2)
6. Dynamic roller lift motor [A] (
x 2)
1.2.7 CREASE MOTOR
1. Rear upper cover ( p.4)
2. Rear lower cover (
p.4)
3. Top rear cover (
p.5)
4. Main board bracket (
p.8 "Top Tray Transport Motor")
5. Crease motor [A] (
x 2, x 4)
