Overview
SM 1-11 D062/D063/D065/D066
Product
Information

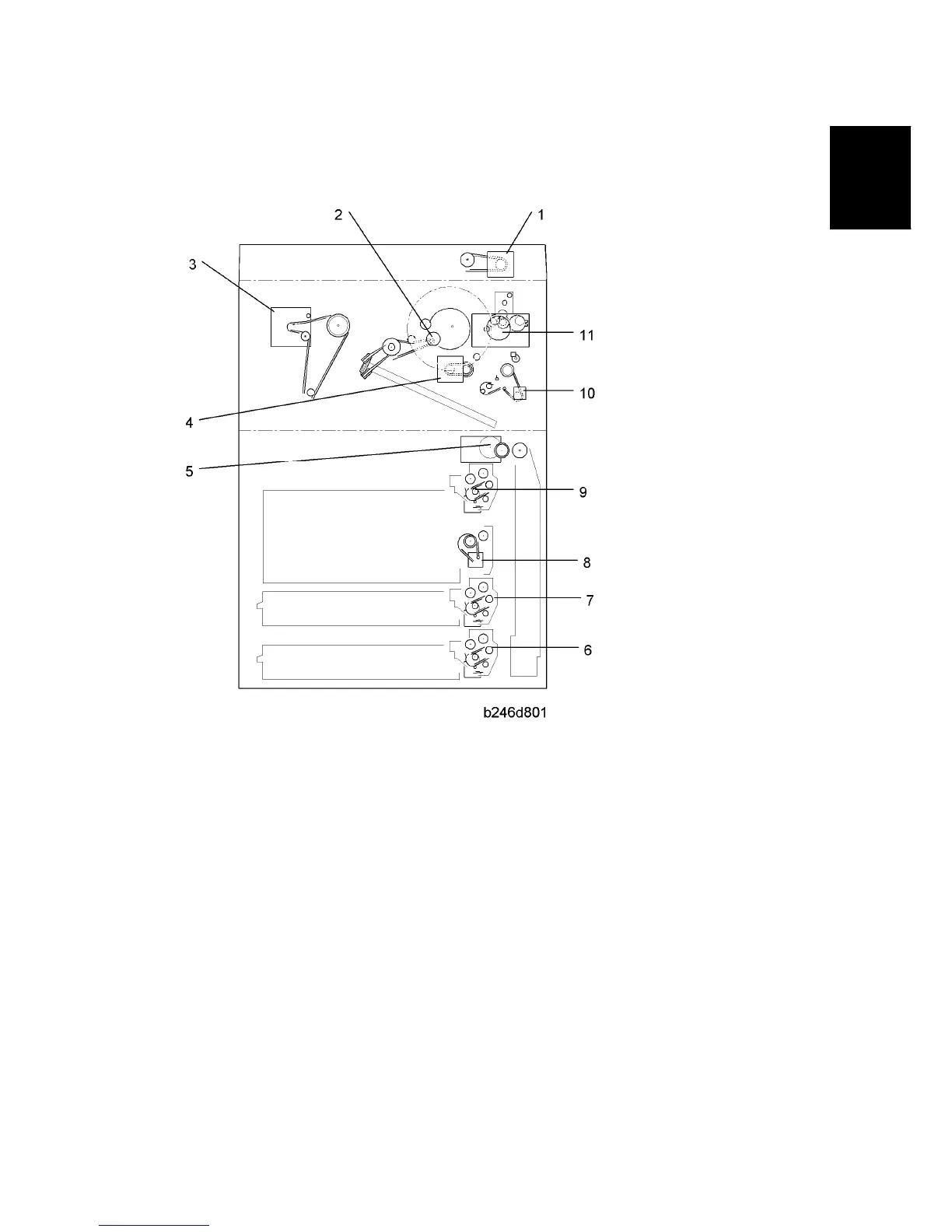

1.4.4 DRIVE LAYOUT
1. Scanner Motor
2. Drum Motor
3. Fusing/Exit Motor
4. Registration Motor
5. Toner Collection Motor
6. Paper Feed Motor 3
7. Paper Feed Motor 2
8. Lower Relay Motor
9. Paper Feed Motor 1
10. By-pass Motor
11. Development Motor
