Development Unit
D062/D063/D065/D066 4-50 SM

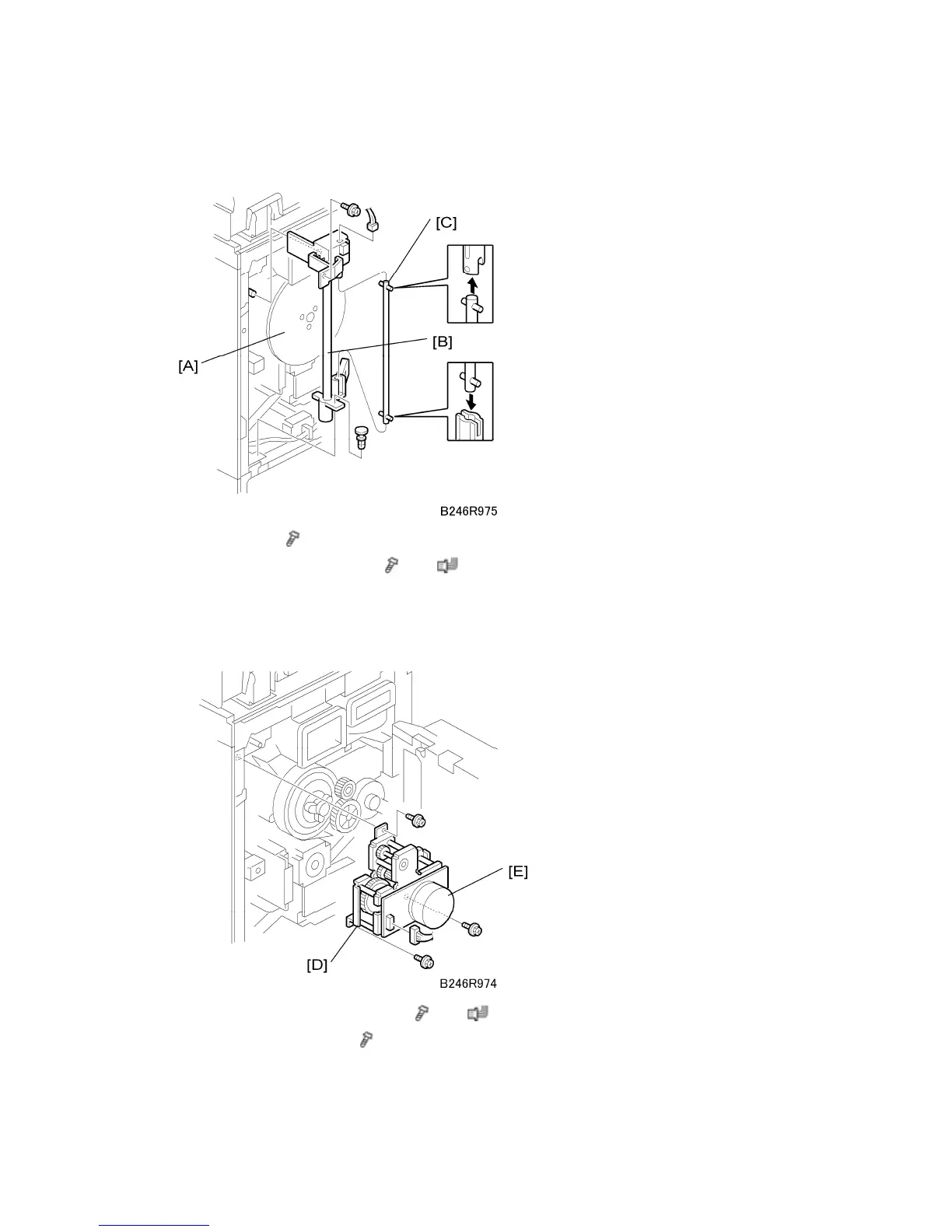

4.7.7 DEVELOPMENT MOTOR
1. Flywheel [A] (
x 3)
2. Waste toner pump tube [B] (
x 1, x 1)
3. Drive rod [C]
 Lift the toner pump tube to disengage the drive rod, pull out the rod, and push the
rubber tube aside.
4. Development motor bracket [D] ( x 3, x 1)
5. Development motor [E] (
x 4)
