REPLACEMENT AND ADJUSTMENT
SM 3 B513/B531
Output
Jogger Unit/
Punch Unit
B513/B53131
3. REPLACEMENT AND ADJUSTMENT
3.1 DOOR AND COVER
Front Door

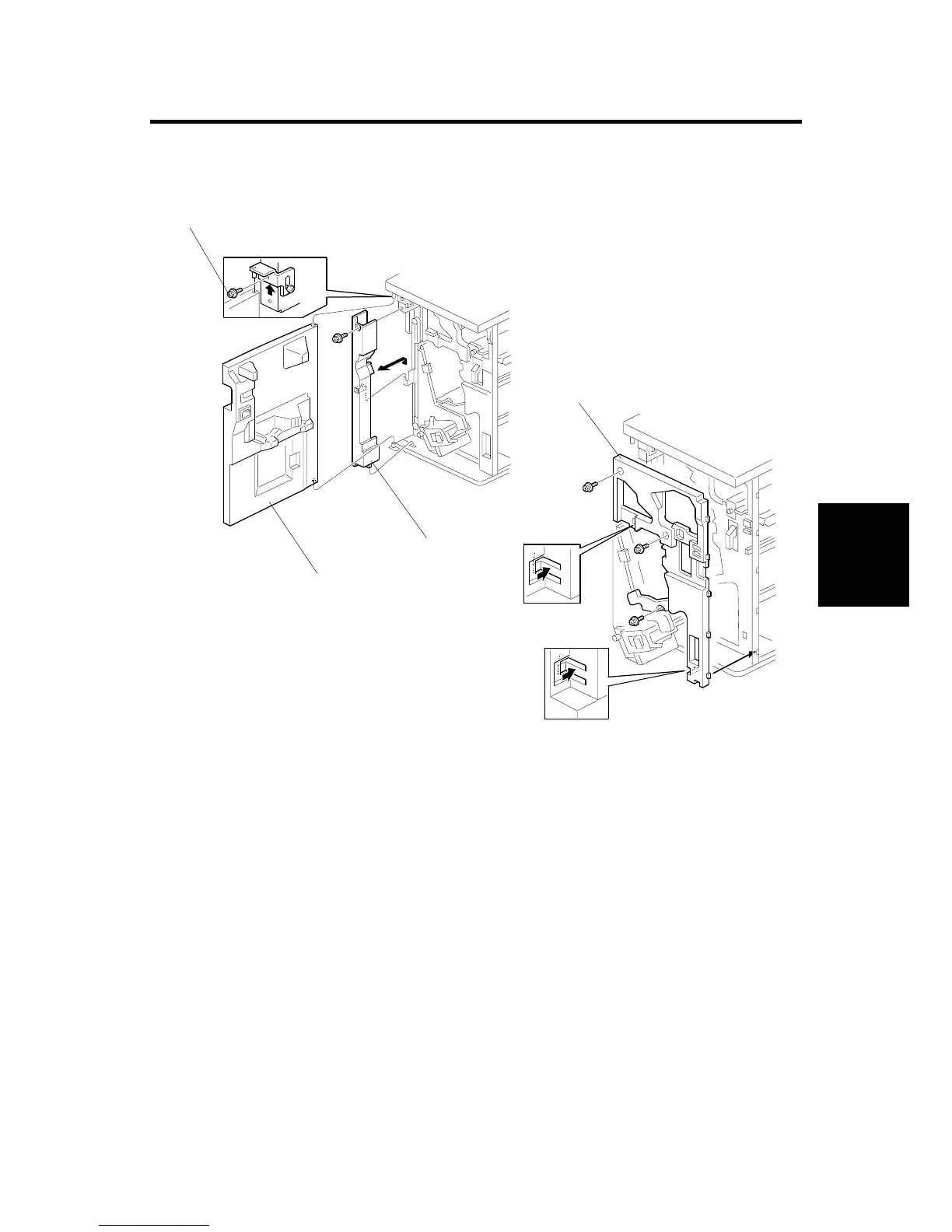

1. Remove the front door screw [A] ( x 1).
2. Remove the front door [B].
Left Inner Cover
1. Remove the front door.
2. Remove the left inner cover [C] ( x 1).
Inner Cover
1. Remove the inner cover [D] ( x 3).
B478R502.WMF
B478R505.WMF
[B]
[D]
[A]
[C]
