Ricoh D065 User Manual

OVERALL MACHINE INFORMATION
SM 51 B513/B531
Output
Jogger Unit/
Punch Unit
B513/B53131

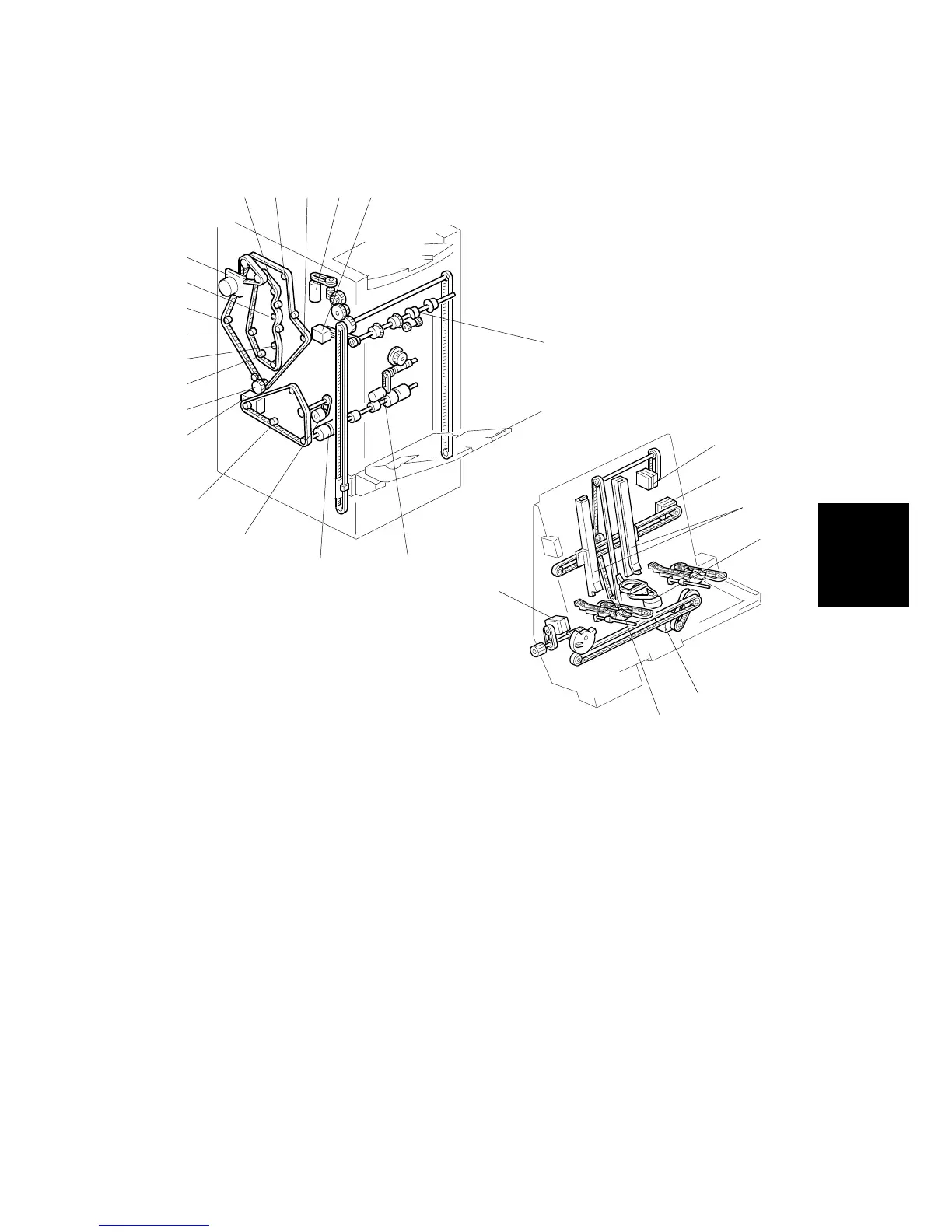

7.3 DRIVE LAYOUT
1. Upper Transport Roller 2
2. Upper Tray Exit Roller
3. Lower Transport Roller 2
4. Shift Tray Lift Motor
5. Shift Tray Exit Motor
6. Shift Tray Exit Roller
7. Shift Tray
8. Shift Motor
9. Staple Tray Exit Roller
10. Positioning Roller
11. Lower Transport Roller 3
12. Lower Transport Motor
13. Lower Transport Rollers 2
14. Lower Transport Roller 1
15. Transport Roller 1
16. Entrance Roller 2
17. Entrance Roller
18. Upper Transport Roller 1
19. Upper Transport Motor
20. Stack Feed-out Motor
21. Jogger Motor
22. Jogger Fence
23. Stack Plate Motor
24. Stapler Motor
25. Stack Feed-out Belt
26. Stapler Rotation Motor
B478V504.WMF
B478V503.WMF
10
13
12
14
15
17
16
18
19
11
9 8
7
1 2 3 4 5
6
25
23
26
24
22
21
20
