Caster Table Type M3
SM 2-45 D146/D147/D148/D149/D150
Installation
2.7 CASTER TABLE TYPE M3

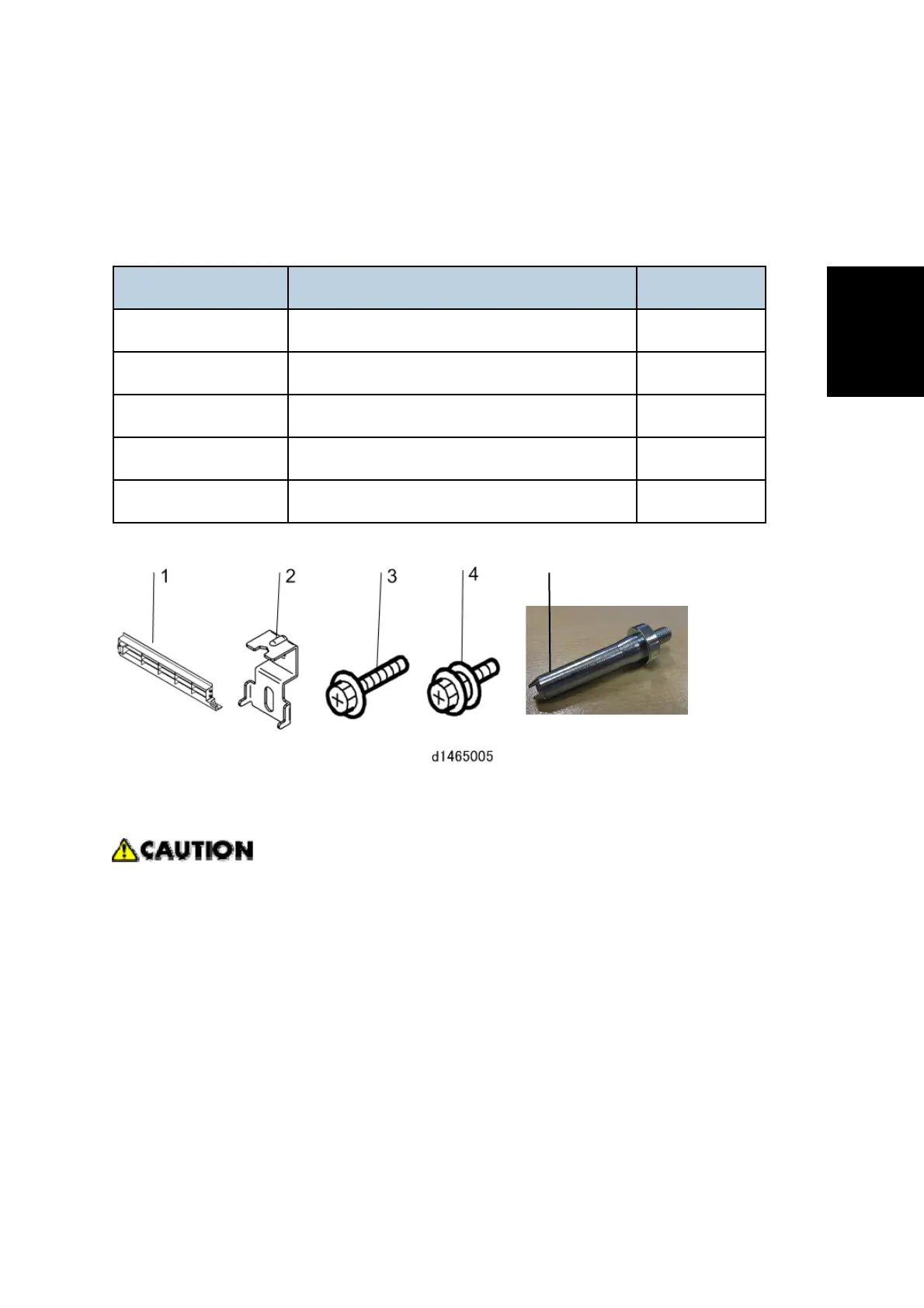

2.7.1 ACCESSORY CHECK
No. Description Q’ty
1 Right Lower Cover 1
2 Securing Bracket 2
3 Screws (M4 × 10) 2
4 Screw with Spring Washer (M4 × 10) 1
5 Stud: Positioning: Table: Caster 3
2.7.2 INSTALLATION PROCEDURE
 Removal of stabilizers must always be with the consent of the customer. Do not remove
them at your own judgment.
 The machine must be held at the correct locations, and must be lifted slowly.
 If it is lifted with force, handled carelessly or dropped, it will result in an injury.
 If installing this option, turn the power to the machine off, and unplug the power plug from
the wall socket.
 If it is installed when the power is on, it will result in an electric shock or malfunction.
 Be sure to join the machine and caster table to prevent equipment from falling over.
 If it is not joined, the machine will move or fall over, which will result in an injury.
