Paper Exit
SM 4-113 D146/D147/D148/D149/D150
Replacement
and Adjustment

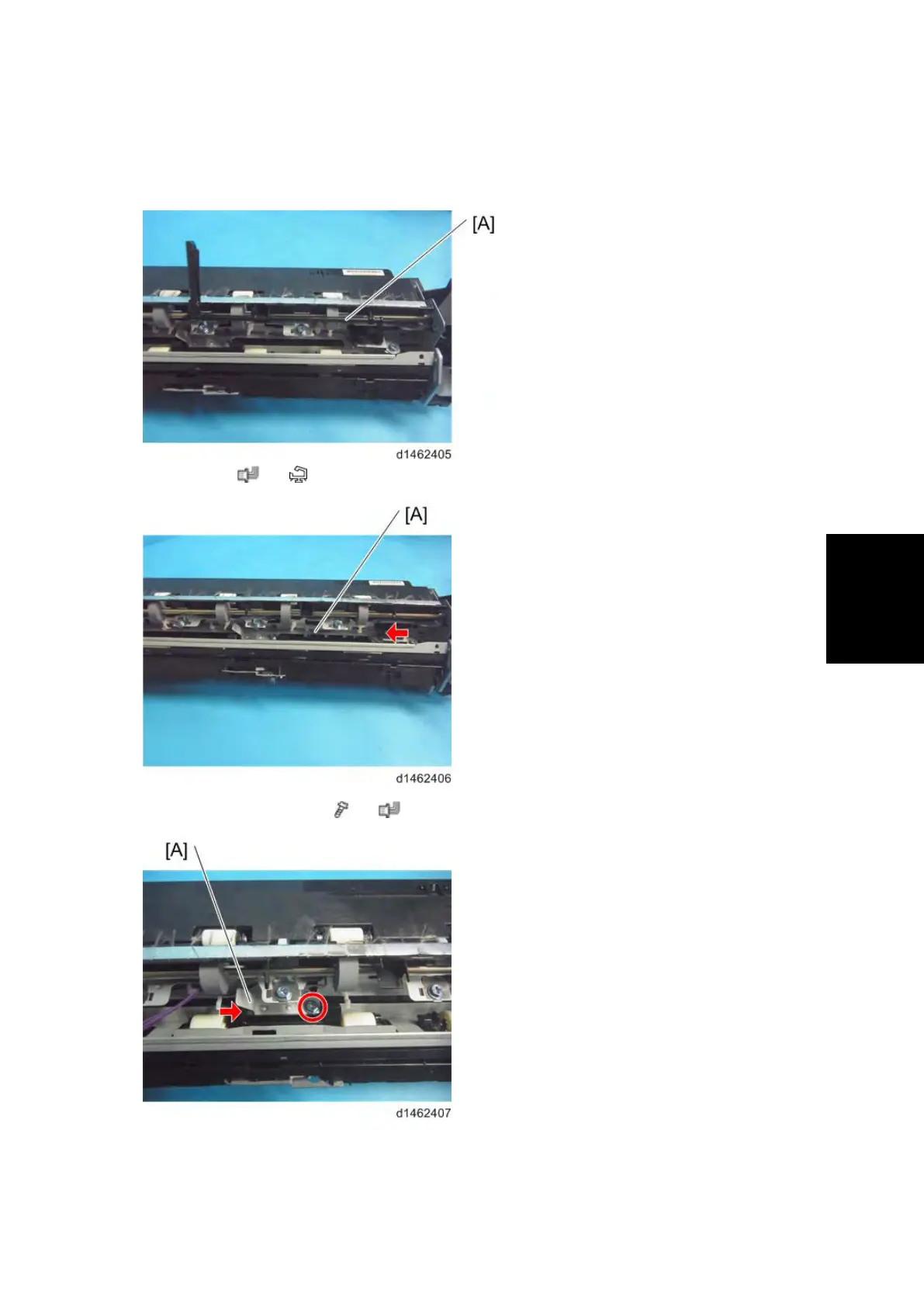

4.13.3 PAPER EXIT SENSOR
1. Paper exit unit
2. Feeler [A]
3. Harness [A] (
×1, ×3)
4. Paper exit sensor unit [A] (
×1, ×1)
5. Paper exit sensor [A]
