Main Unit (Motor)
SM 13 D688/D689
BOOKLET
FINISHER SR3170 /
FINISHER SR3160
(D688/D689)
1.3 MAIN UNIT (MOTOR)
1.3.1 CORNER STAPLING UNIT
1. Remove the following covers (page 4 "Front Cover, Front Left Side Cover")
 Front door
 Front left side cover
 End fence
 Rear upper cover
 Rear lower cover
2. Pull out the booklet unit.

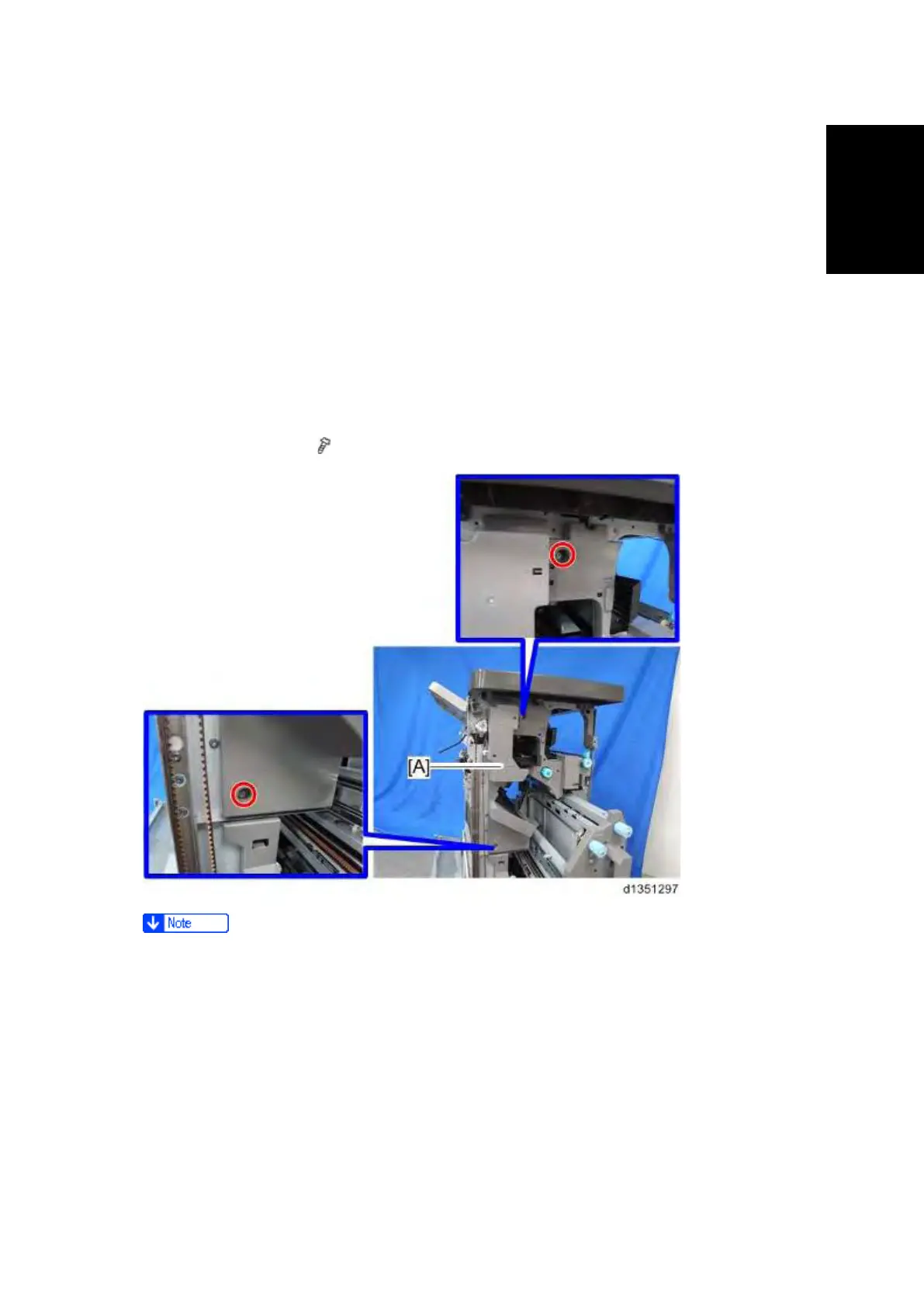

3. Inner upper cover [A] (
×2)
 Disconnect the harness from the back side of the inner upper cover when you
remove the inner upper cover.
