Image Adjustment
D146/D147/D148/D149/D150 4-176 SM
- Text (Letter) Mode, Single Color -

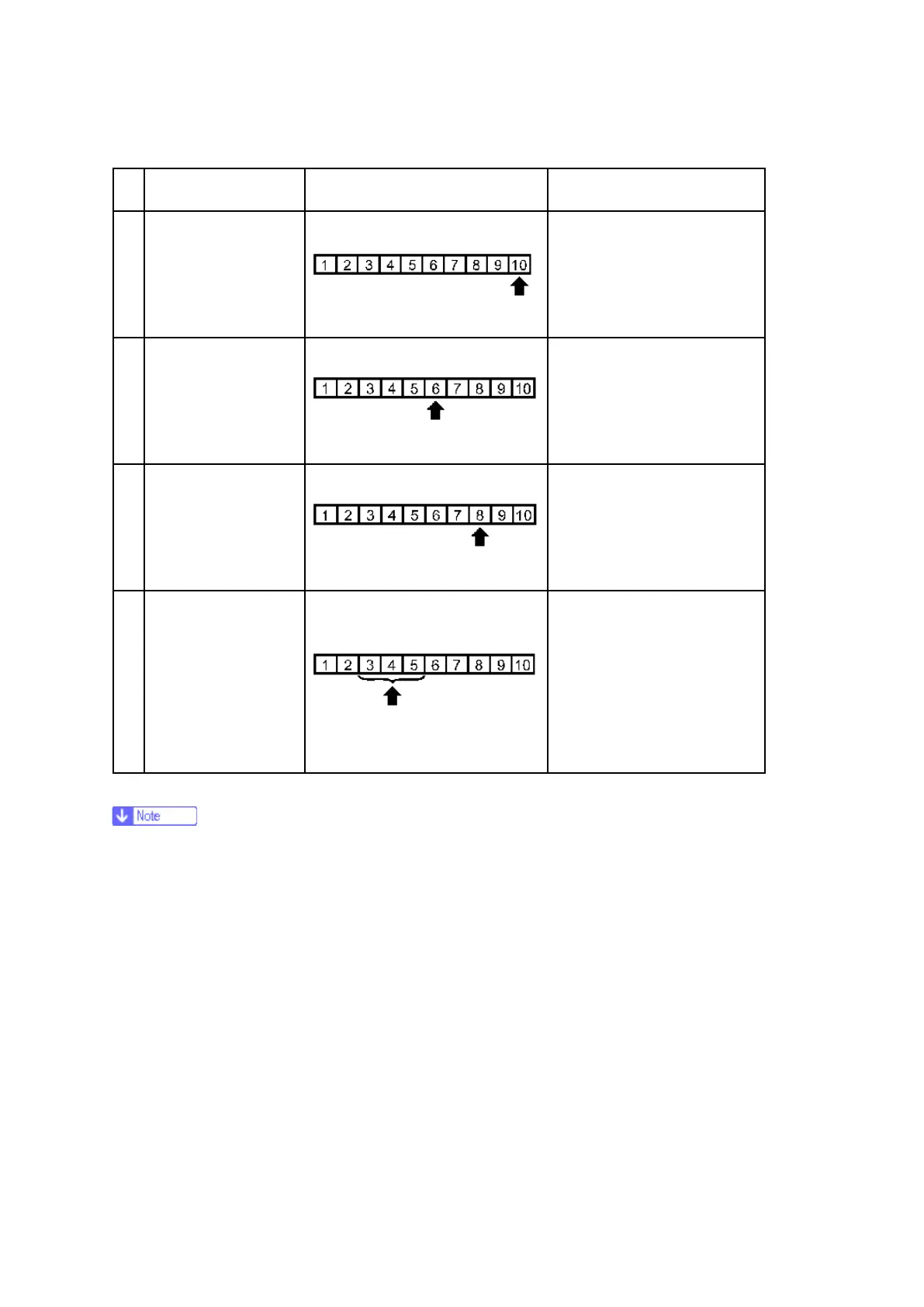

Item to Adjust Level on the C-4 chart (K) Adjustment Standard
1 ID max: (K)
Adjust the offset value so
that the density of level 10
matches that of level 10 on
the C-4 chart.
2
Middle (Middle ID)
(K)
Adjust the offset value so
that the density of level 6
matches that of level 6 on
the C-4 chart.
3
Shadow (High ID)
(K)
Adjust the offset value so
that the density of level 8
matches that of level 8 on
the C-4 chart.
4
Highlight (Low ID)
(K)
Adjust the offset value so
that dirty background does
not show on the copy and
the density of level 3 is
slightly lighter than that of
level 3 on the C-4 chart.
§ Text parts of the test pattern cannot be printed clearly after you adjust "shadow" as shown
above. At this time, check if the 5 line/mm pattern at each corner is printed clearly. If it is
not, adjust the offset value of "shadow" again until it is.
Printer Mode
There are six adjustable modes (select these modes with printer SP1-102-001):
§ 1200 x 1200 photo mode
§ 1200 x 1200 text mode
§ 2400 x 600 photo mode
§ 2400 x 600 text mode
§ 1800 x 600 photo mode
§ 1800 x 600 text mode
§ 600 x 600 photo mode
§ 600 x 600 text mode
