Fusing Unit
D146/D147/D148/D149/D150 4-100 SM
4.12.2 FUSING ENTRANCE GUIDE PLATE
1. Fusing unit (page 4-99 "Fusing Unit")

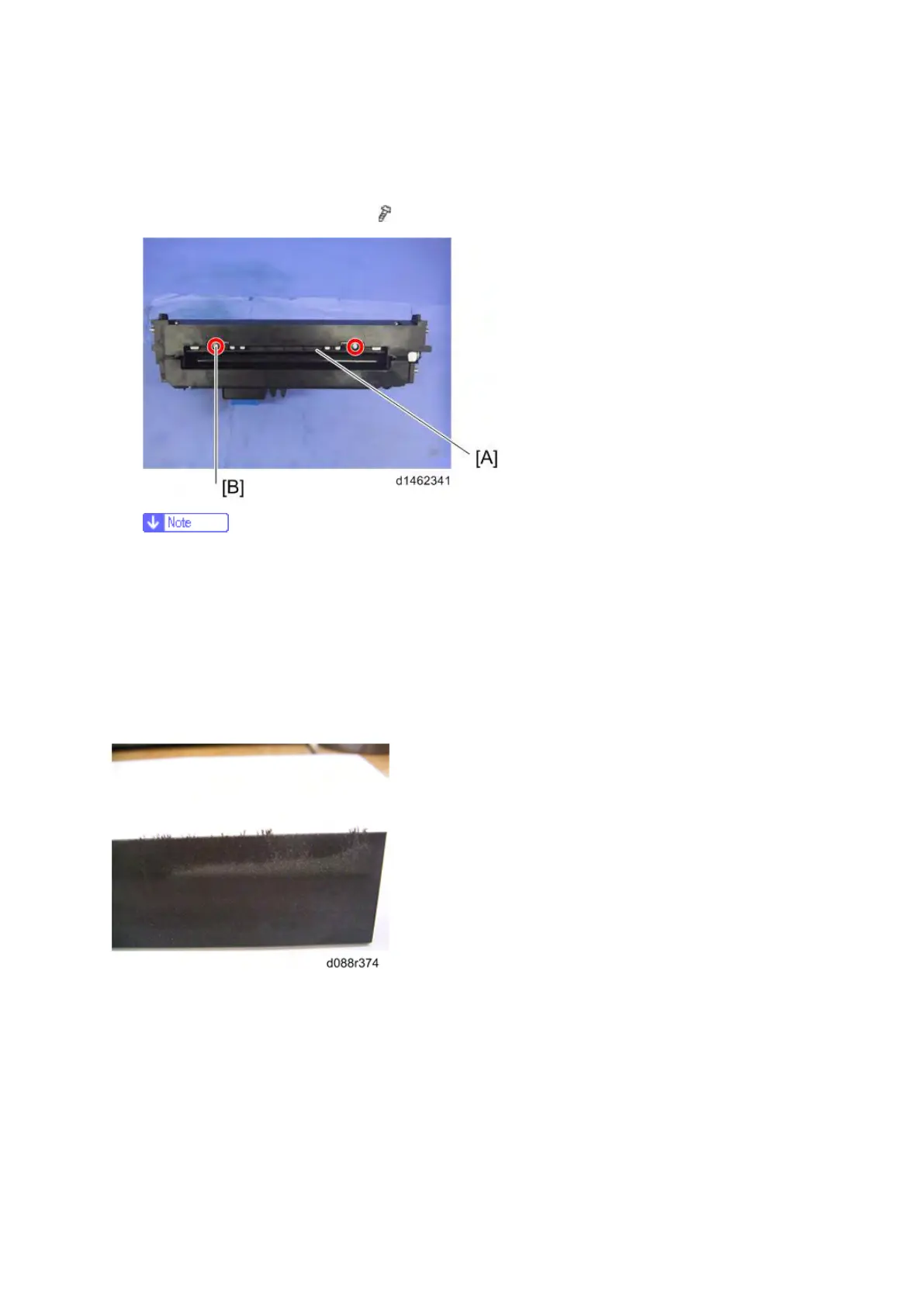

2. Fusing entrance guide plate [A] ( ×2)
§ The screw [B] is a threaded screw. When you assemble the unit, take care not to use
the wrong screws.
§ Attach the fusing entrance guide plate on the outer of the two screw holes.
Cleaning the Fusing Entrance Guide Plate
Carefully remove toner adhering as shown in the diagram below with a dry cloth. Then, wipe with
a cloth moistened with alcohol.
To Next Page
