Laser Unit

D146/D147/D148/D149/D150 4-52 SM

4.7.1 LASER UNIT

§ A polygon motor protection bracket and a red label are attached to each new laser unit.

Remove these before you install the new unit.

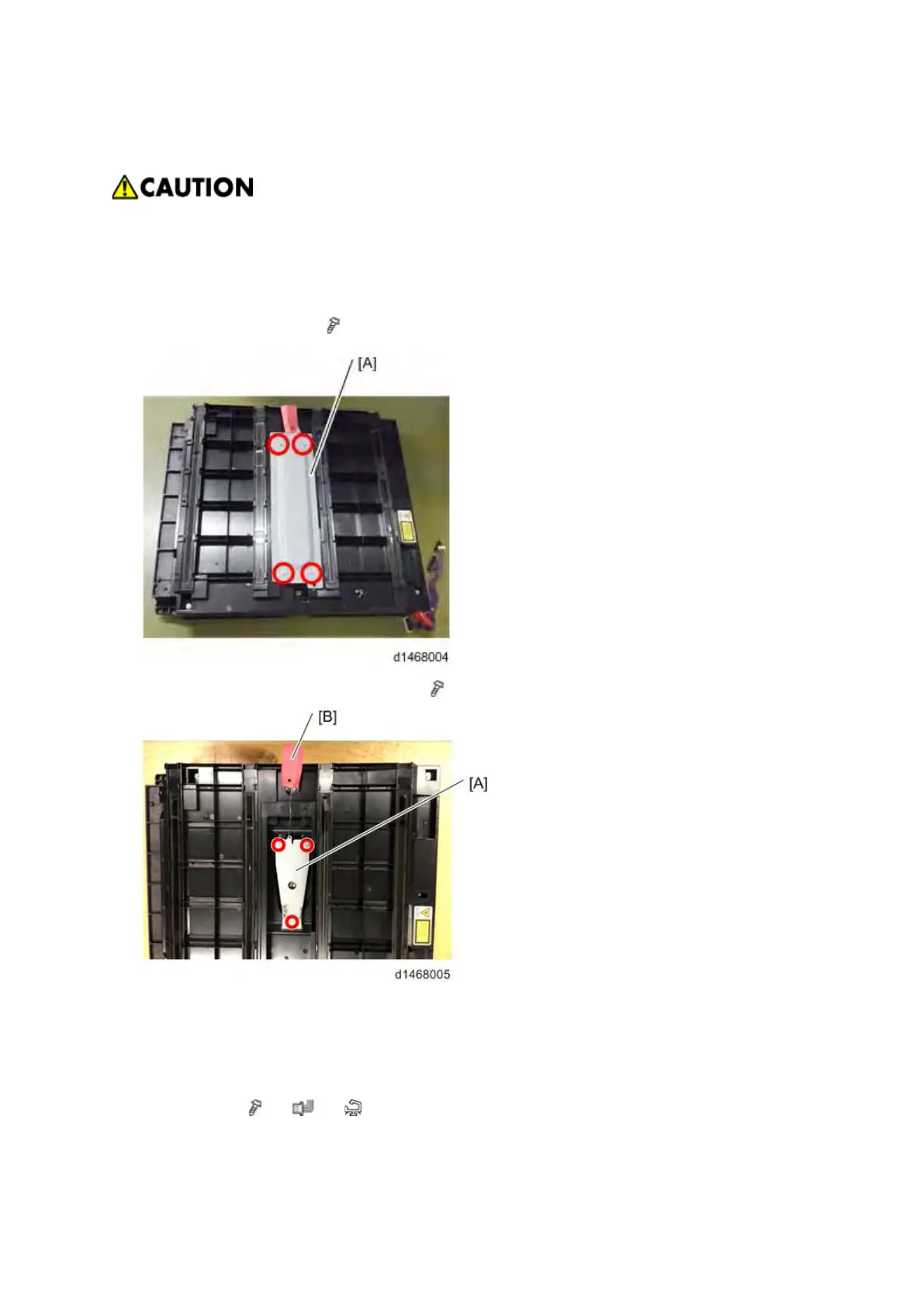

Before Replacement

1. Polygon motor cover [A] ( ×4)

2. Polygon motor bracket [A], Red tag [B] (

×3)

3. Reattach the polygon motor cover.

Removing

1. Left cover (page 4-8 "Left Cover")

2. Laser unit [A] ( ×2, ×4, ×3)
