Image Transfer Unit
D146/D147/D148/D149/D150 4-68 SM
4.10.2 IMAGE TRANSFER CLEANING UNIT
§ When removing the image transfer cleaning unit, to prevent scattering of toner, remove it
so that the image transfer cleaning unit is underneath the image transfer belt unit.
Adjustment before replacing the image transfer cleaning unit
Before replacing the Image Transfer Belt Cleaning, set SP3-701-093 to "1" and switch the power
OFF.
Then replace the Image Transfer Belt Cleaning and switch the power ON.
Replacement
1. Image transfer unit (page 4-65 "Image Transfer Unit")

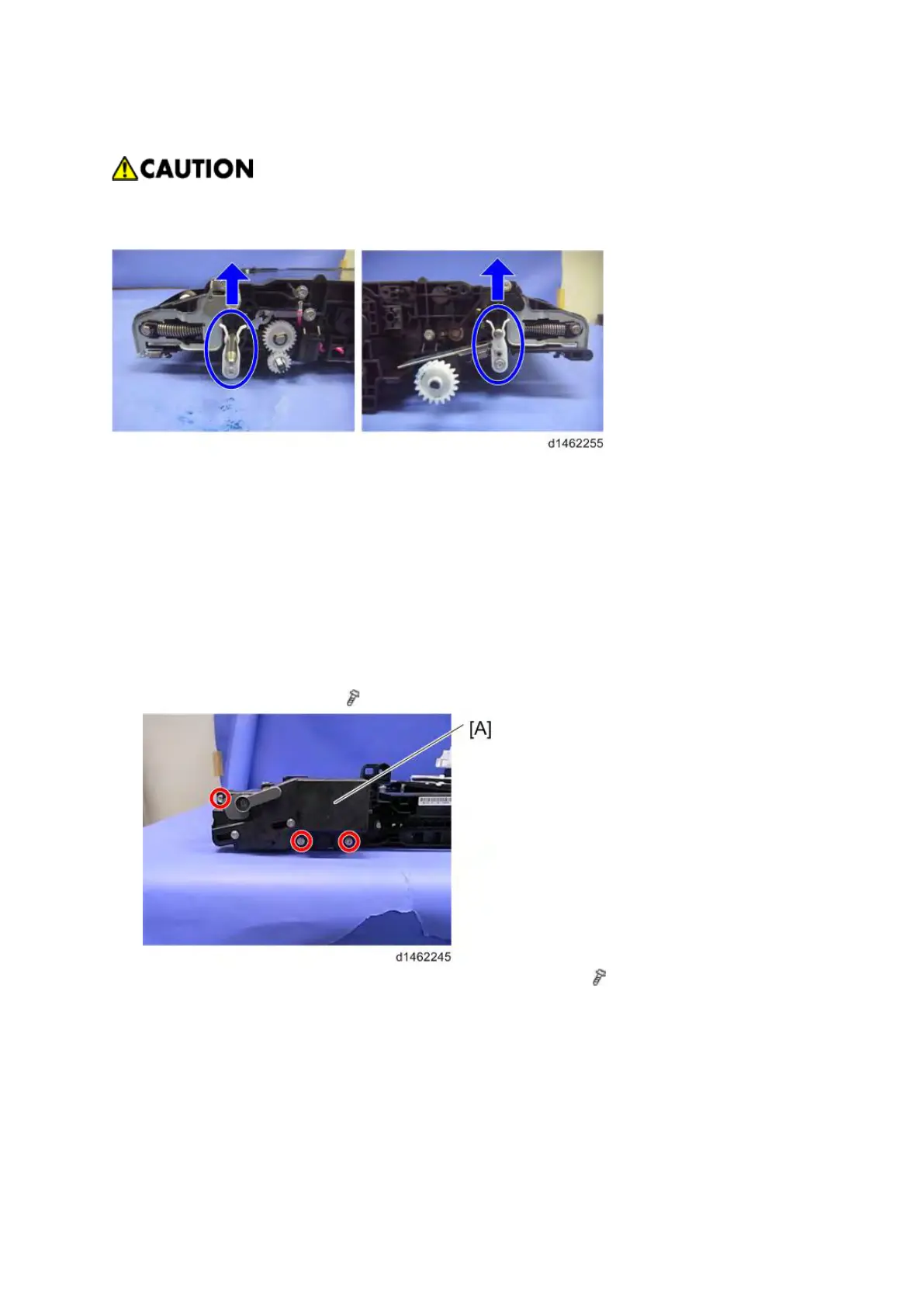

2. Image transfer lock unit [A] ( ×3, Among them, stepping screw ×1)
3. Remove the screw above the image transfer cleaning unit [A] (
×2).
