Pick-up Roller / Transport Belt

SM 11 D683

SPDF DF3080

(D683)

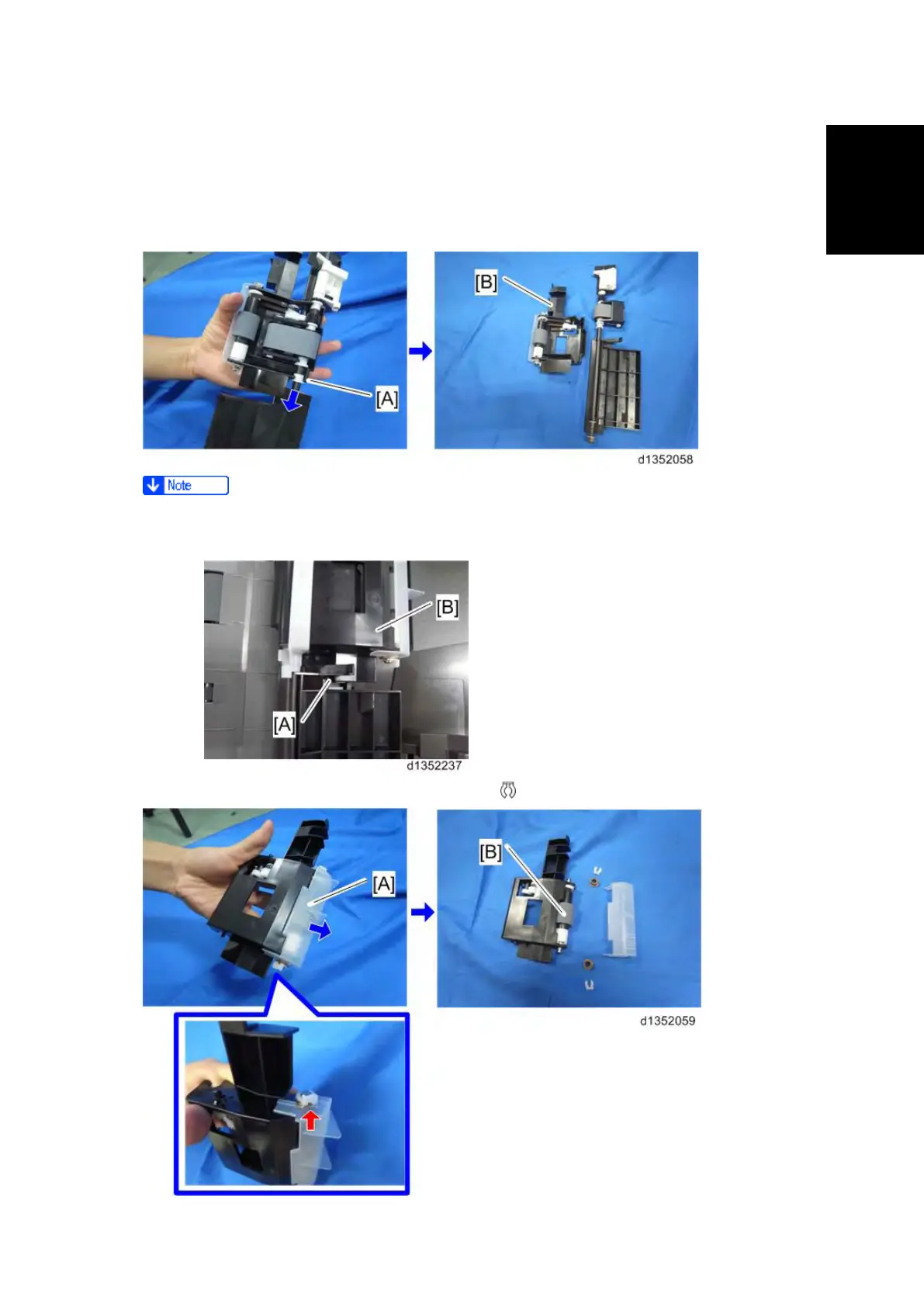

1.8 PICK-UP ROLLER / TRANSPORT BELT

1. Original feed unit (page 10 "Original Feed Unit")

2. Slide the resin bushing [A], and then remove the pick-up roller unit [B].

 At re-assembly, make sure that the tab on the front guide plate [A] is above the

pick-up roller [B].

3. Pick-up roller cover [A] and pick-up roller [B] (

×2, bushing×2, one-way clutch×1)
