Scanner Unit
SM 4-39 D146/D147/D148/D149/D150
and Adjustment
§ Do not touch the mirror and the lamp.
§ When you move the carriage, hold the central part and move it gently.

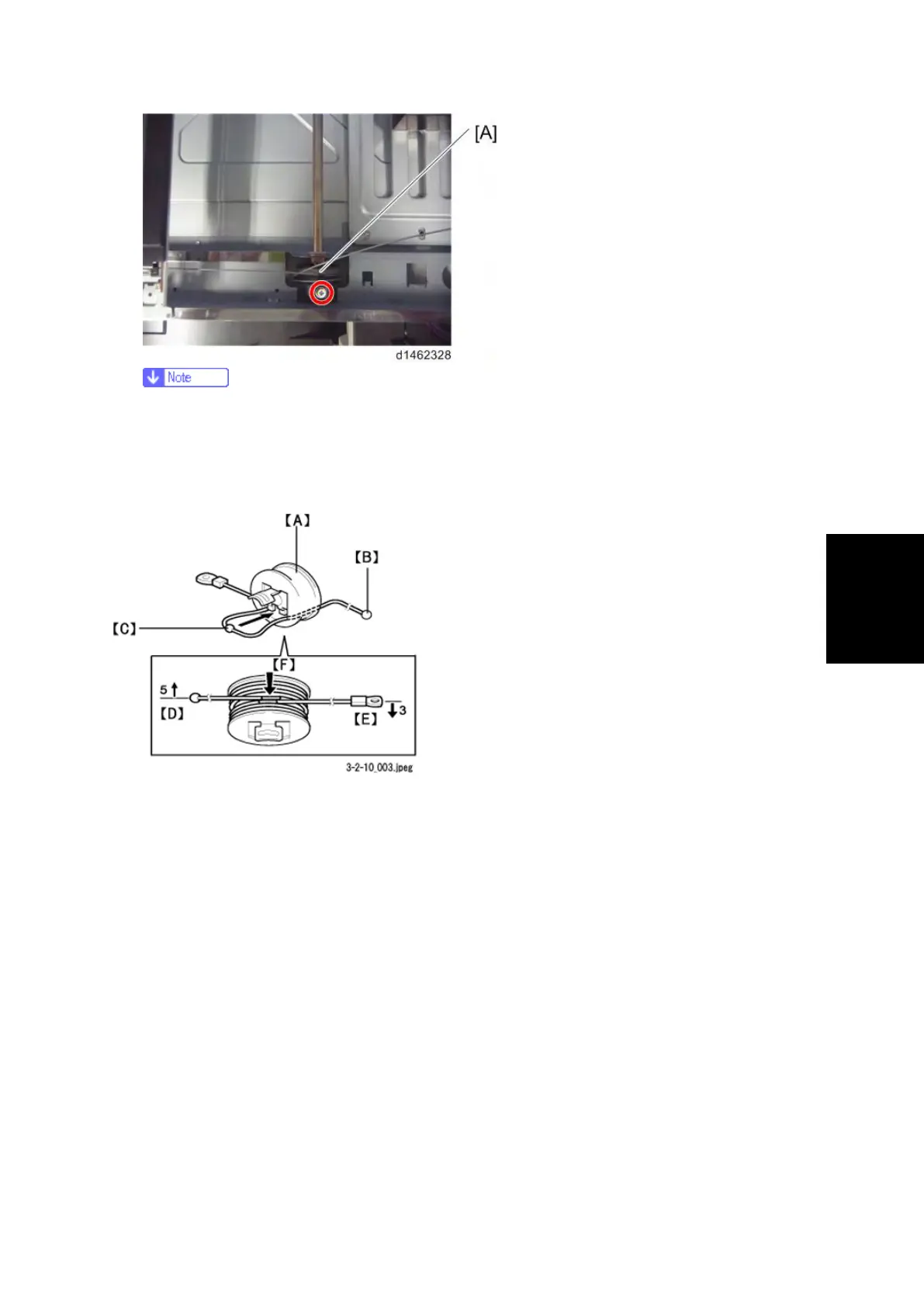

Scanner wire assembly (front side)
1. Pull the scanner wire ball end [B] to the pulley [A] from the left side of the pulley as shown in
the diagram.
2. Set the ball [C] in the center part of the wire on the pulley.
3. Turn the ball end [D] 5 times counterclockwise along the edge on the rear side of the pulley.
4. Turn the ring end [E] 3.5times clockwise along the edge at the front side of pulley.
5. Check that the blue marks [F] of the wire overlap, and secure it temporarily with Teflon tape,
etc.
To Next Page
