1.4 G3 INTERFACE UNIT TYPE M3 (D163)
This G3 interface unit option is used only for Fax Option Type M3 (D163) models.
1.4.1 COMPONENT CHECK

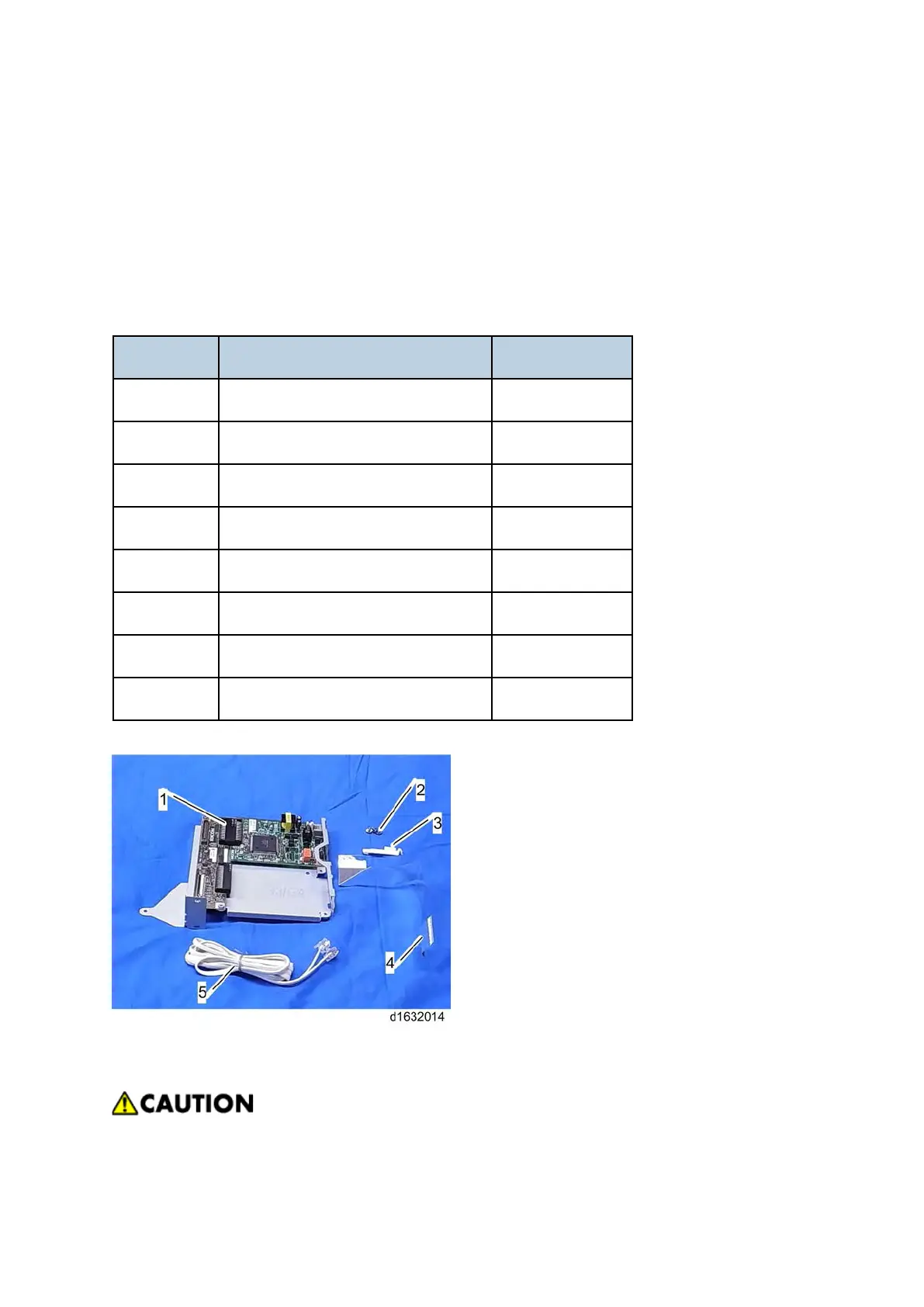

Check the quantity and condition of the components against the following list.
No. Description Q'ty
1 SG3 Interface Unit 1
2 Screw: M3x6 3
3 Harness Clamp 2
4 Flat Cable 1
5 Telephone Cable (NA only) 1
- Ferrite Core 1
- EMC Address Decal (EU only) 1
- FCC Decal (NA only) 1
1.4.2 INSTALLATION PROCEDURE
 Before installing this optional unit:
 Print out all data in the printer buffer.
 Turn off the main switch and disconnect the power cord and the network cable.
To Next Page
