Laser Unit
D146/D147/D148/D149/D150 4-56 SM
Adjustment after replacing the polygon motor
SP2-111-004: Forced Line Position Adj. Mode d
The result can be checked with SP2-194-007 (MUSIC Execution Result Execution Result) (0:
Succeed, 1: Fail).
Also, results for each color can be checked with SP2-194-010 to 013.
4.7.3 IMAGING TEMPERATURE SENSOR (THERMISTOR)
1. Open the controller box (page 4-83 "Transfer Motor Unit")

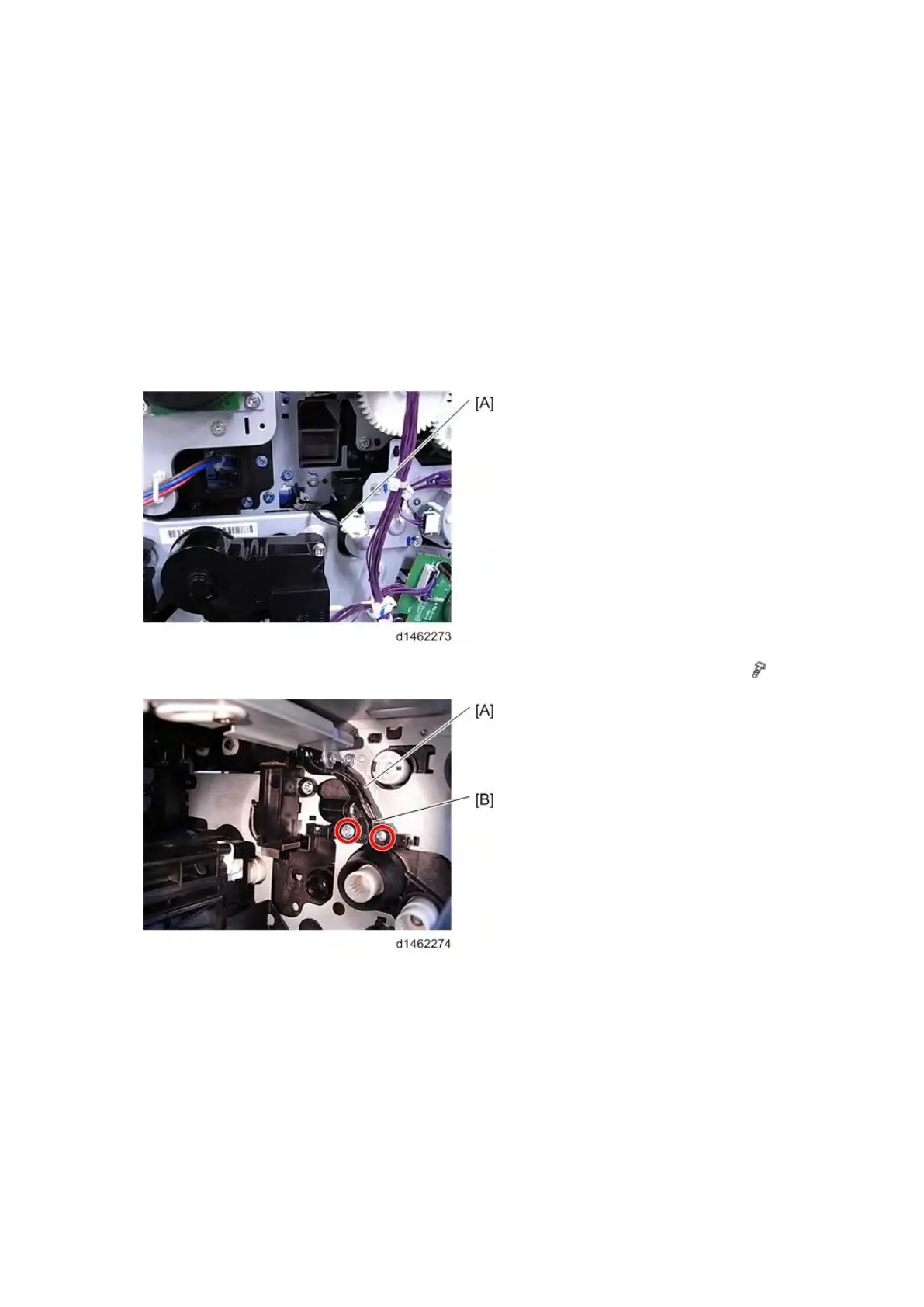

2. Connector [A]
3. Imaging temperature sensor harness guide [A] and Imaging temperature sensor [B] (
×2)
