Exterior Covers
D146/D147/D148/D149/D150 4-8 SM
4.4.4 LEFT REAR COVER
1. Upper left cover (page 4-7 "Upper Left Cover")

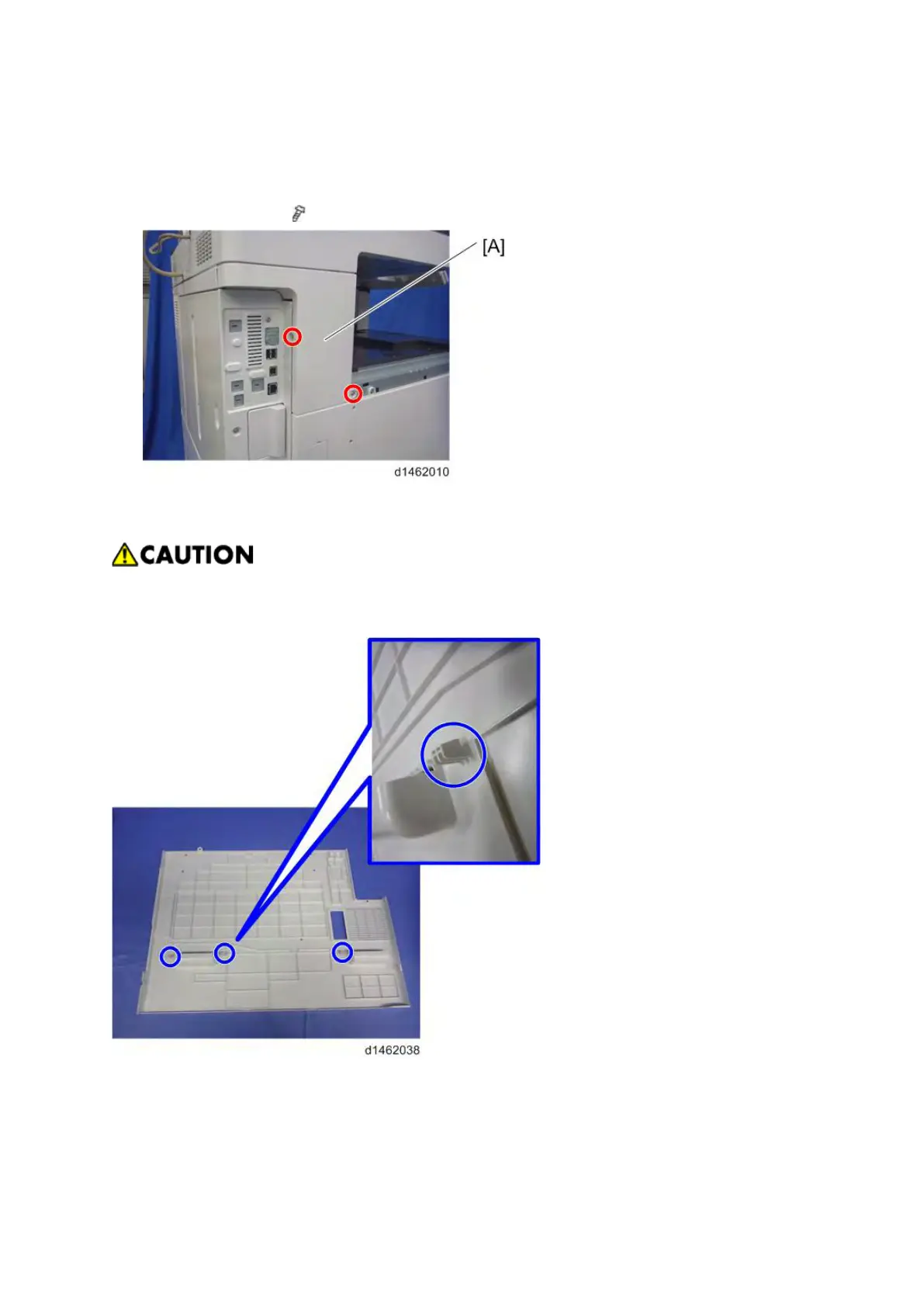

2. Left Rear Cover [A] ( ×2)
4.4.5 LEFT COVER
§ Each part enclosed by a blue circle has a tab. Be careful not to damage it when attaching
and detaching.
1. Controller cover (page 4-6 "Controller Cover")
2. Ozone filter/Dust-shield filter box (page 4-156 "Ozone filter/Dust filter")
3. Upper left cover (page 4-7 "Upper Left Cover")
4. Left rear cover (page 4-8 "Left Rear Cover")
5. Open the 2nd paper feed tray slightly.
To Next Page
