Fusing Unit

SM 4-101 D146/D147/D148/D149/D150

Replacement

and Adjustment

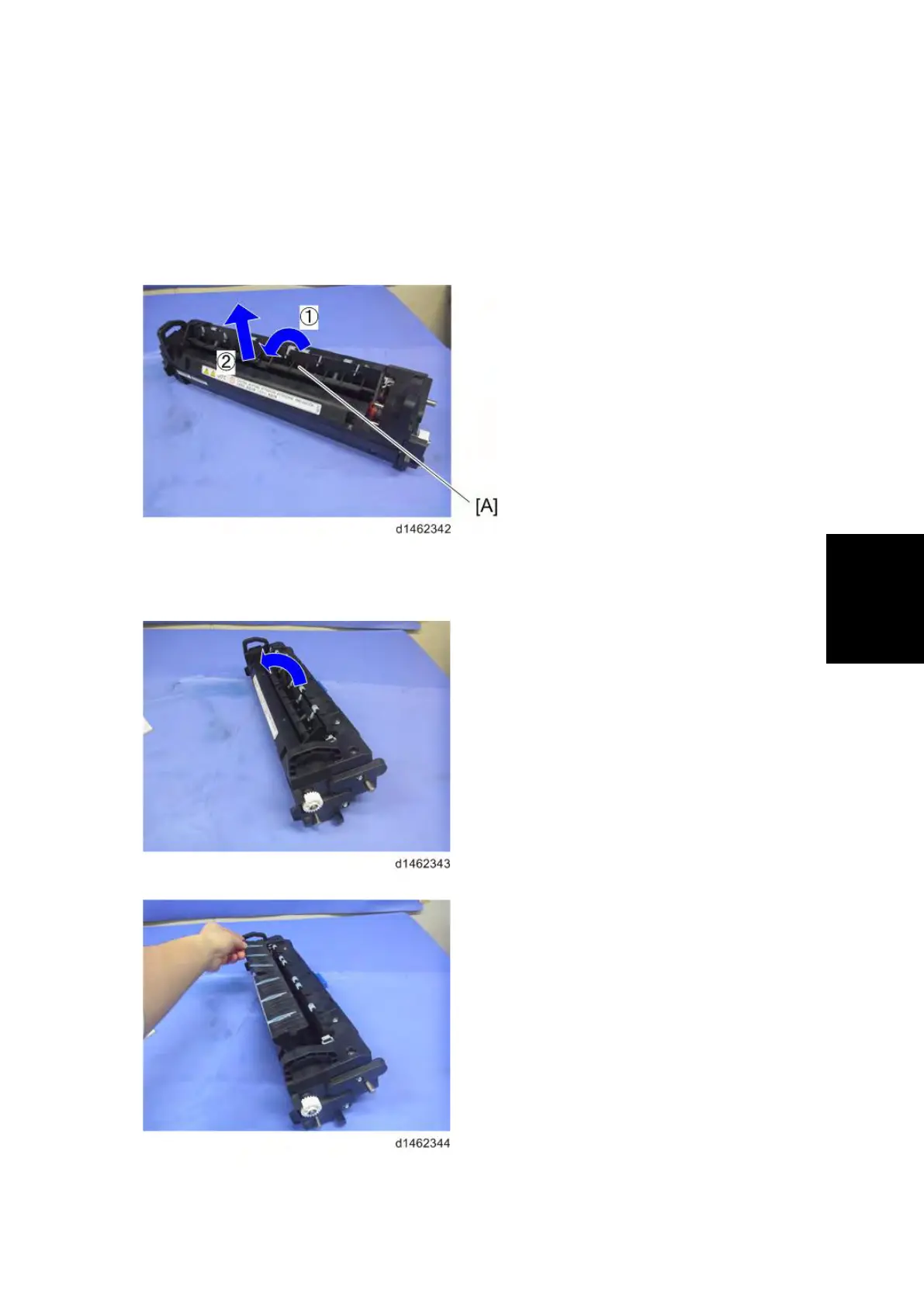

4.12.3 FUSING EXIT GUIDE PLATE

1. Fusing unit (page 4-99 "Fusing Unit")

2. Fusing exit guide plate [A]

1. Open the fusing exit guide plate in the direction of the arrow 1.

2. Remove the fusing exit guide plate in the direction of the arrow 2.

Cleaning the Fusing Exit Guide Plate

1. Open the fusing exit guide plate [A].

2. Wipe clean with a dry cloth. Then wipe clean with a cloth dampened with alcohol.
