IEEE 1284 Interface Board Type A
D146/D147/D148/D149/D150 2-142 SM
2.24 IEEE 1284 INTERFACE BOARD TYPE A
2.24.1 INSTALLATION PROCEDURE
§ When you install this option, Switch the MFP’s power supply OFF, and unplug the power
plug from the mains outlet.
§ Do not put your hand into the controller box. It will result in a malfunction or injury.
§ Before doing any work, touch a metal object to discharge static electricity from the body.
There is a possibility that the IEEE 1284 Interface Board may malfunction due to static
electricity.

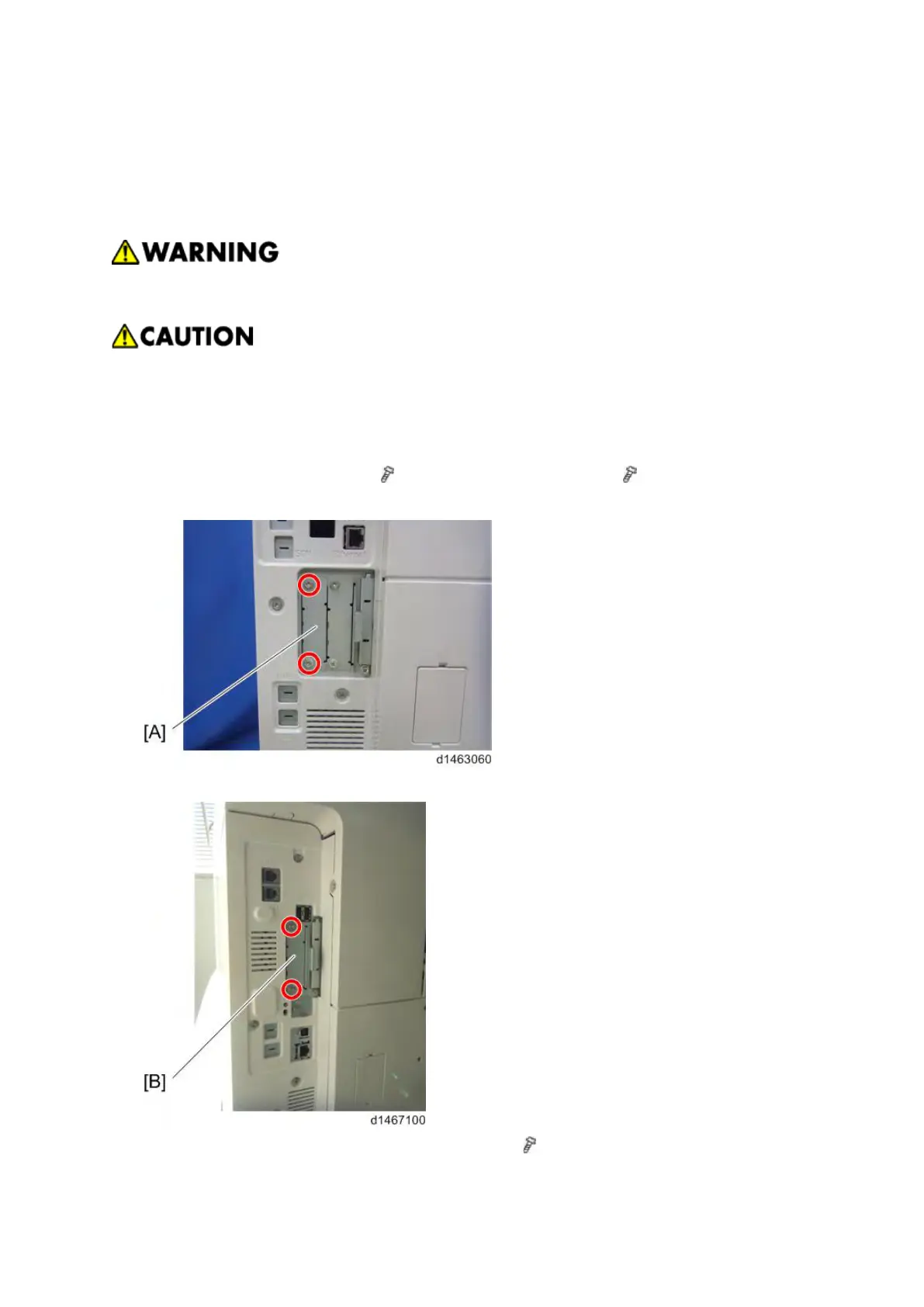

1. I/F slot A (D148/D149/D150) [A] (
×2), I/F slot B (D146/D147) [B] ( ×2) covers.
D148/D149/D150:
D146/D147:
2. Attach the IEEE 1284 Interface Board to the I/F slot (
×2)
3. Check that the system settings list is output, and that the board is recognized correctly.
To Next Page
