Main Machine Installation
D146/D147/D148/D149/D150 2-14 SM
16. Close the front cover.

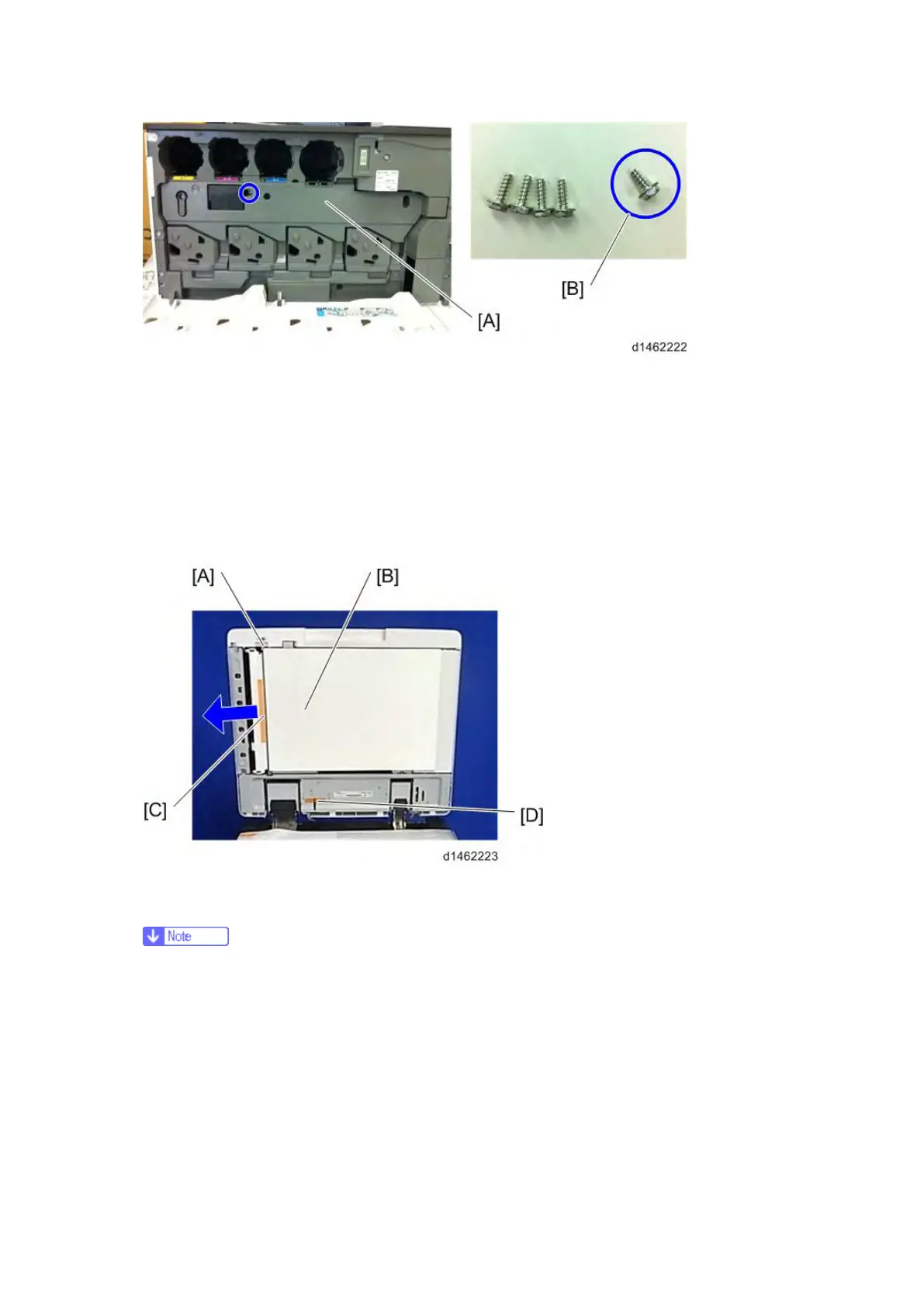

For machines with preinstalled SPDF: Removal of protective sheet
1. Open the SPDF.
2. Release the lever [A], open the pressure plate sheet [B], and pull out the protective sheet [C]
slowly.
At this time, remove the filament tape [D].
3. Close the pressure plate sheet.
4. Close the SPDF.
§ If the protective sheet remains in the SPDF, a paper jam will be detected.
Toner bottle installation
1. Open the front cover.
2. Shake the toner bottle (Bk) 5 to 6 times.
3. Remove the toner bottle protection cap [A].
