Adjustment after Replacing the ADF
D683 4 SM
1.2 ADJUSTMENT AFTER REPLACING THE ADF
1.2.1 CIS RGB ADJUSTMENT
Enter the four-digit numeric values for RGB that are listed on the paper that comes with the ADF
into the following SP.
R: SP4-712-001 (CIS GB Adj Value: R)
G: SP4-713-001 (CIS GB Adj Value: G)
B: SP4-714-001 (CIS GB Adj Value: B)
1.2.2 CHECKING THE VERTICAL REGISTRATION
SP6-006-001 (ADF Adjustment Side-to-Side Regist: Front)
SP6-006-002 (ADF Adjustment Side-to-Side Regist: Rear)

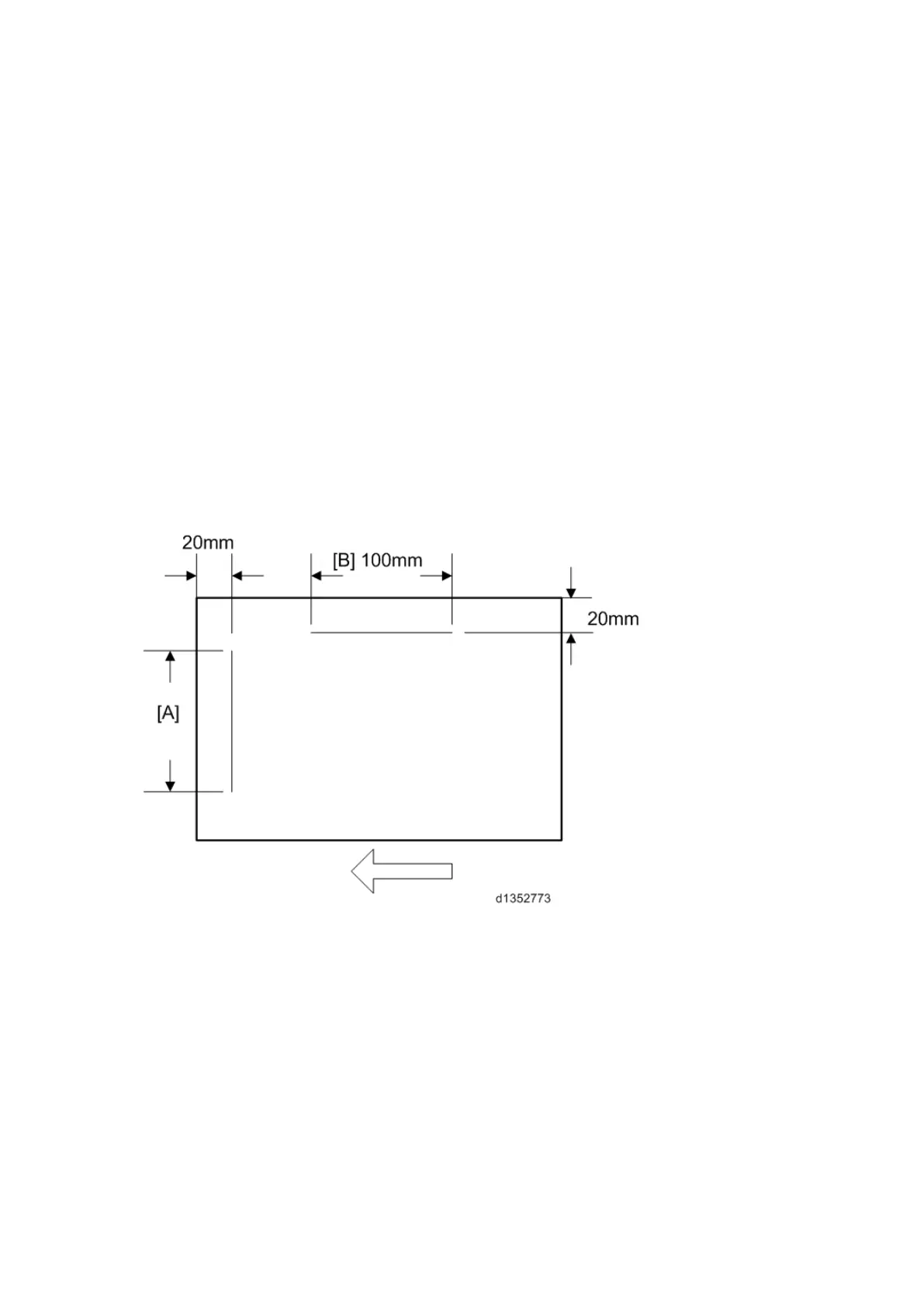

1. Create an original as shown in the following picture.
*The arrows indicate the direction of feed.
2. Copy the original and make sure that the position of the line [A] is within 0±1mm
3. If not within the standard, adjust with the SP modes.
