Adjustment after Replacing the ADF
SM 5 D683
SPDF DF3080
(D683)
1.2.3 CHECKING THE HORIZONTAL REGISTRATION
SP6-006-010 (ADF Adjustment L-Edge Regist (1-Pass): Front)
SP6-006-011 (ADF Adjustment L-Edge Regist (1-Pass): Rear)
1. Copy the original and make sure that the position of the line [B] is within 0±2mm.
2. If not within the standard, adjust with the SP modes.
1.2.4 CHECKING THE SKEW
SP6-006-012 (ADF Adjustment 1st Buckle (1-Pass))
SP6-006-013 (ADF Adjustment 2nd Buckle (1-Pass))
1. Make sure that the difference between both end positions of the line [A] is within 0±2mm.

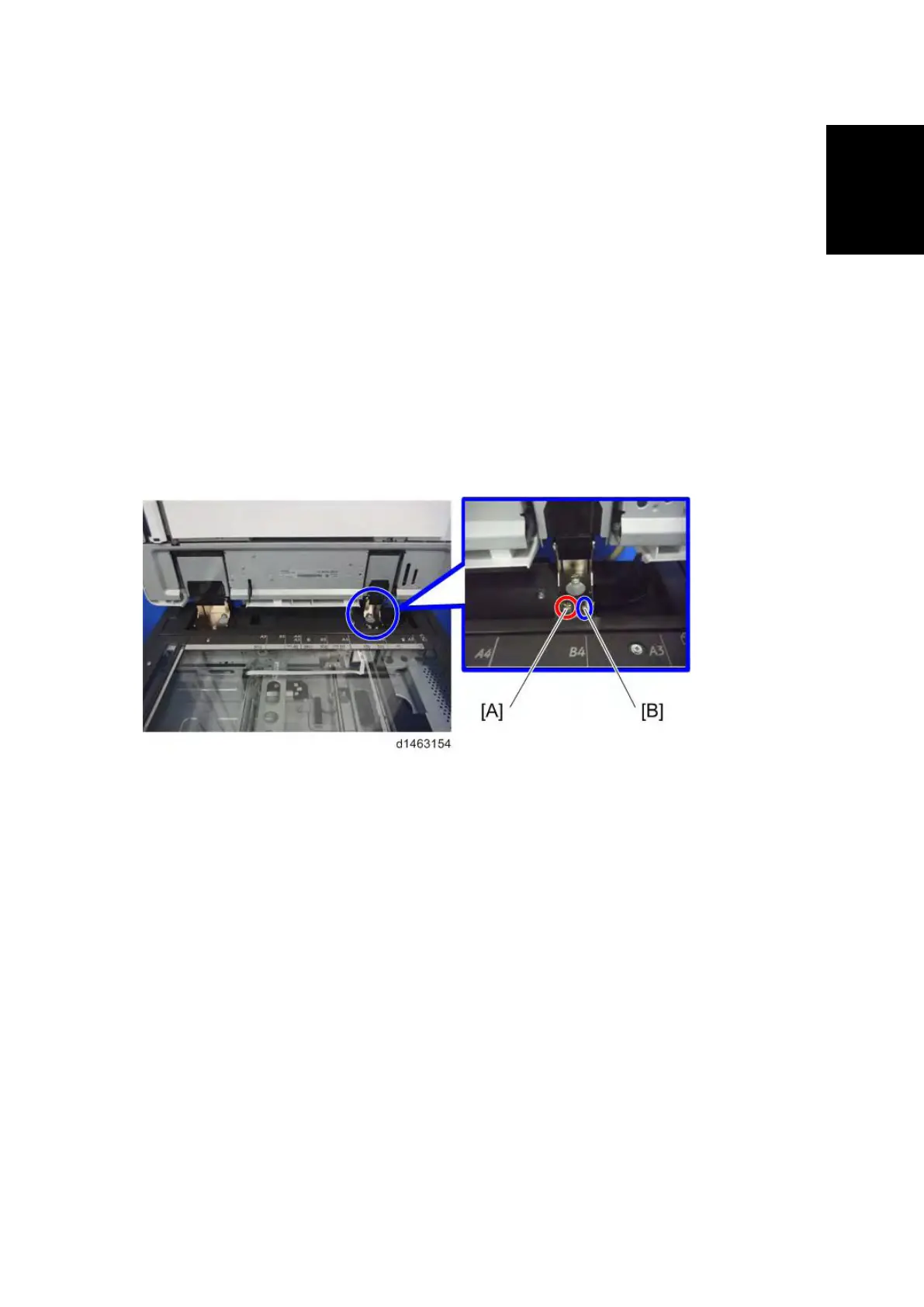

2. If not within the standard, change the position of the fixing screw [A] to the long hole [B] at the
right hinge.
1.2.5 CHECKING THE MAGNIFICATION
SP6-017-001 (DF Magnification Adj.)
1. Copy the original and make sure that the length of the line [B] is within 100±1mm.
2. If not within the standard, adjust with the SP mode.
