10、REAR COVER COMPONENT 100
CHK
ADH
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 5
2 1250303-010093 GB6177.1M6 (environmental color zinc) 2
3 1251513-001019 6.3 x 12 x 1.6 copper gasket 1
4 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 2
5 1224200-040000 ZT310 Electrical device box cover 1
6 1274200-238000 ZT310-R battery holder (gel battery) 1
7 1274100-057095
φ
×φ
×
＋φ
×
8 1244100-052000
Buffer rubber of flanging bushing (
φ
×φ
×
9 1240300-007000
－

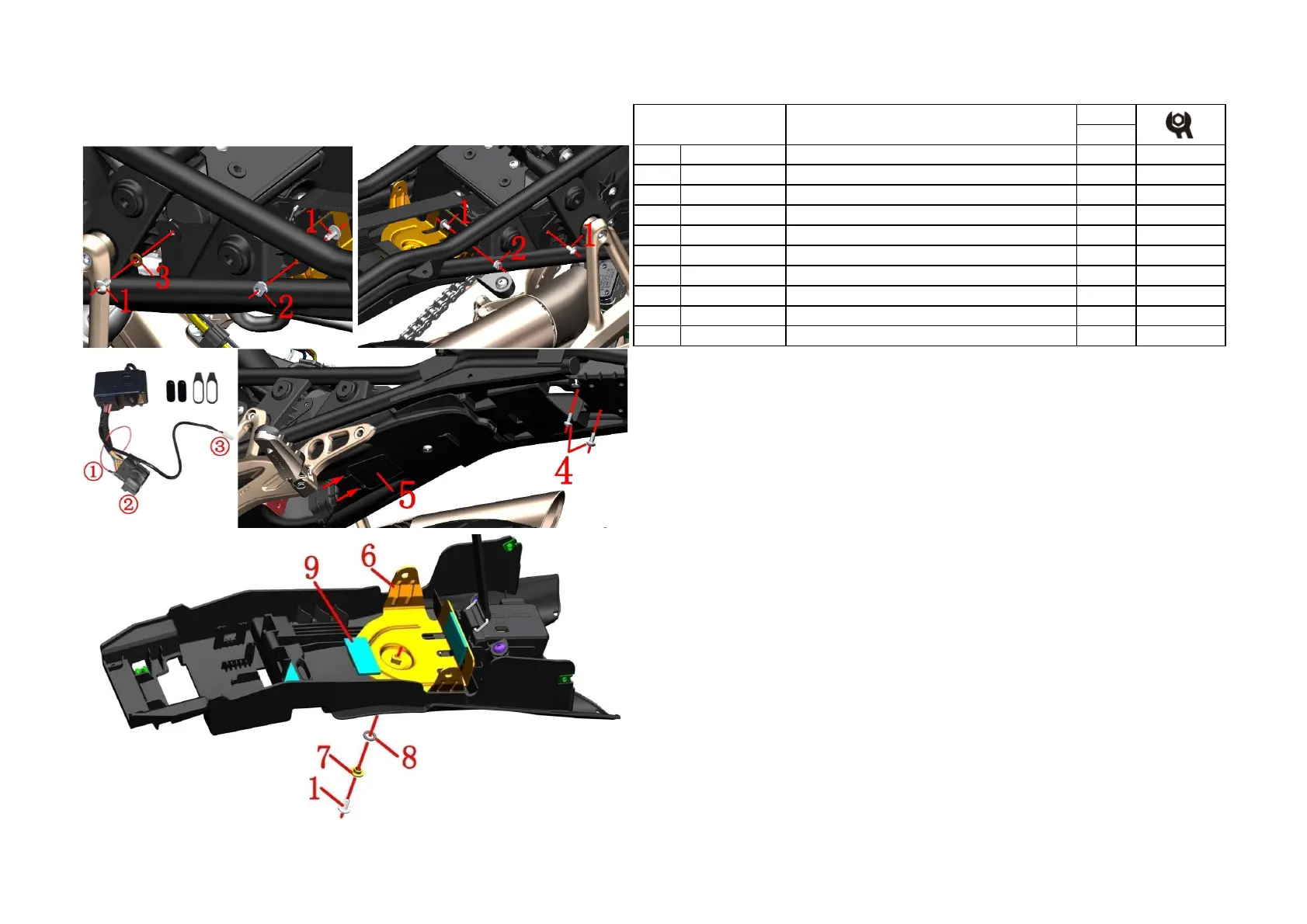

Fig. 14 REAR COVER
COMPONENT
Electrical device box component 1 (colloid battery)
PROCEDURE:
●Electrical device box component
Fix the bolt (1) on the left side of the battery holder and remove the nut ⑵.
Remove the bolts(1) on the left side of the front of the electrical component box Remove the gasket (3).
Fix the bolt (1) on the right side of the battery holder and remove the nut ⑵.
Remove the bolts(1) on the right side of the front of the electrical component box.
Remove the bolts (4) on the bottom of the rear frame of the frame.
Push the card in the direction of the arrow to snap the lower cover⑸.
Find and remove the connector ③ of the PKE antenna.
Hold the electric device box component in one hand and grasp the front part downwards with one hand.
Unplug the PKE cable connectors① and ② and remove the electrical device box component.
●Battery holder
Remove bolt(1) then remove bushing⑺ and the cushion rubber⑻. Remove battery holder ⑹.
Remove the battery pad ⑼ and clean the remaining adhesive.
CAUTION:
●Do not pull the cable directly when unplugging it.
●If you need to replace the PKE fuse, you can replace it by directly removing the lower cover of the electrical
device box.
●For PKE antenna disassembling, see "Fuel Tank Cover component 2" and "End cover Interior Trim
component" above.
●When refitting connector ②, check whether the metal contacts inside are bent. If necessary, straighten them
first.
