Zontes ZT310-T EURO IV User Manual

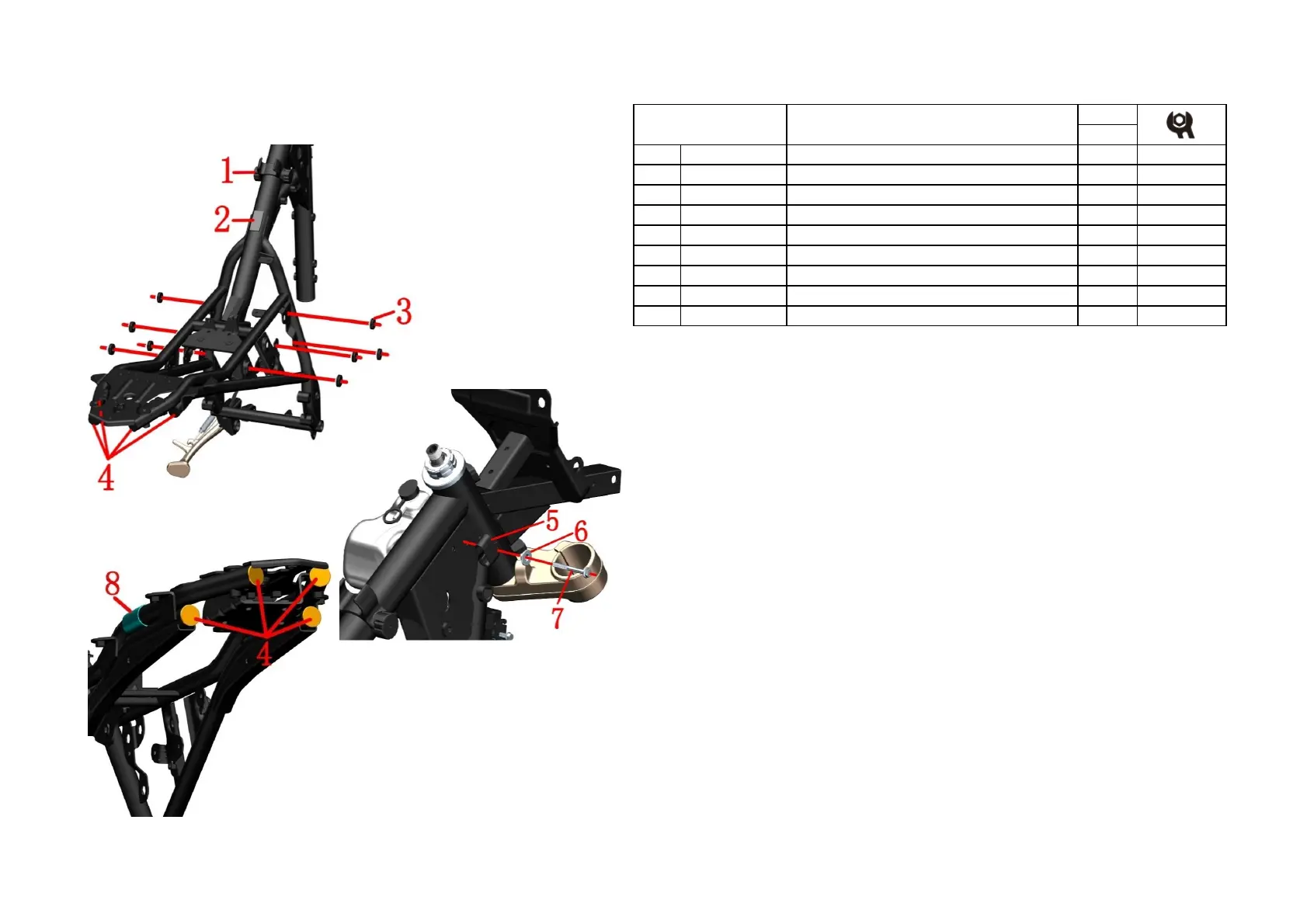

1、FRAME COMPONENT 10
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1 1244100-019000 ZT250
－
S Tank liner limit glue 1
2 1240300-007000 HJ125
－
6 Battery pad 1
3 1244100-002000 ZT250
－
S Side cover round glue 10
4 1244100-061000 ZT250 Frame waterproof rubber stopper 4
5 1224200-016000
ZT310
－
R Clamp
1
6 1274100-007000
ZT250
－
S Flanging bushing(φ6.4×φ9×6
＋
φ20×2)
1
7 1250105-236093 GB5789 M6×55
（
Environmental color
）
1
8 1240100-023000 battery anode protection glue 1 colloid battery
PROCEDURE:
●Tank liner limit glue
Hold the inner limiting rubber with both hands (1) and pull the cylindrical part at both ends to remove it.
●Side cover round glue
Remove the side cover round glue(3) with your hands directly.
●Frame waterproof rubber stopper
Remove the frame waterproof rubber stopper with your hands directly.
●Calmp
Remove the cable from the clamp, hold the vice water tank with one hand, the loosen the bolt(7) with the other
hand, remove the bushing(6) and clamp(5).
●Battery pad
Remove the battery pad (2) directly by hand and clean the remaining glue.
The battery anode protection glue(8) use for colloid battery models.
CAUTION:
●First remove the cushion, oil tank outside cover, oil tank liner, side cover and tail skirt and so on.
●All parts should be properly assembled in place.
FIG.3 FRAME&ELECTRONIC
PARTS COMPONENT
Frame plastic component
