7、FRONT FORK COMPONENT 52
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1264100-006000 ZT250-S pedal circlip 4
2 1274200-030000
ZT310-X windshield lower pressing block rotating shaft
4
3 1274200-112000 ZT310-T windshield left bracket 1
4 1274200-113000 ZT310-T windshield right bracket 1
5 1224100-010000 ZT250-S expansion nail 3
6 1224200-076000 ZT310-T hood middle decorative cover 1

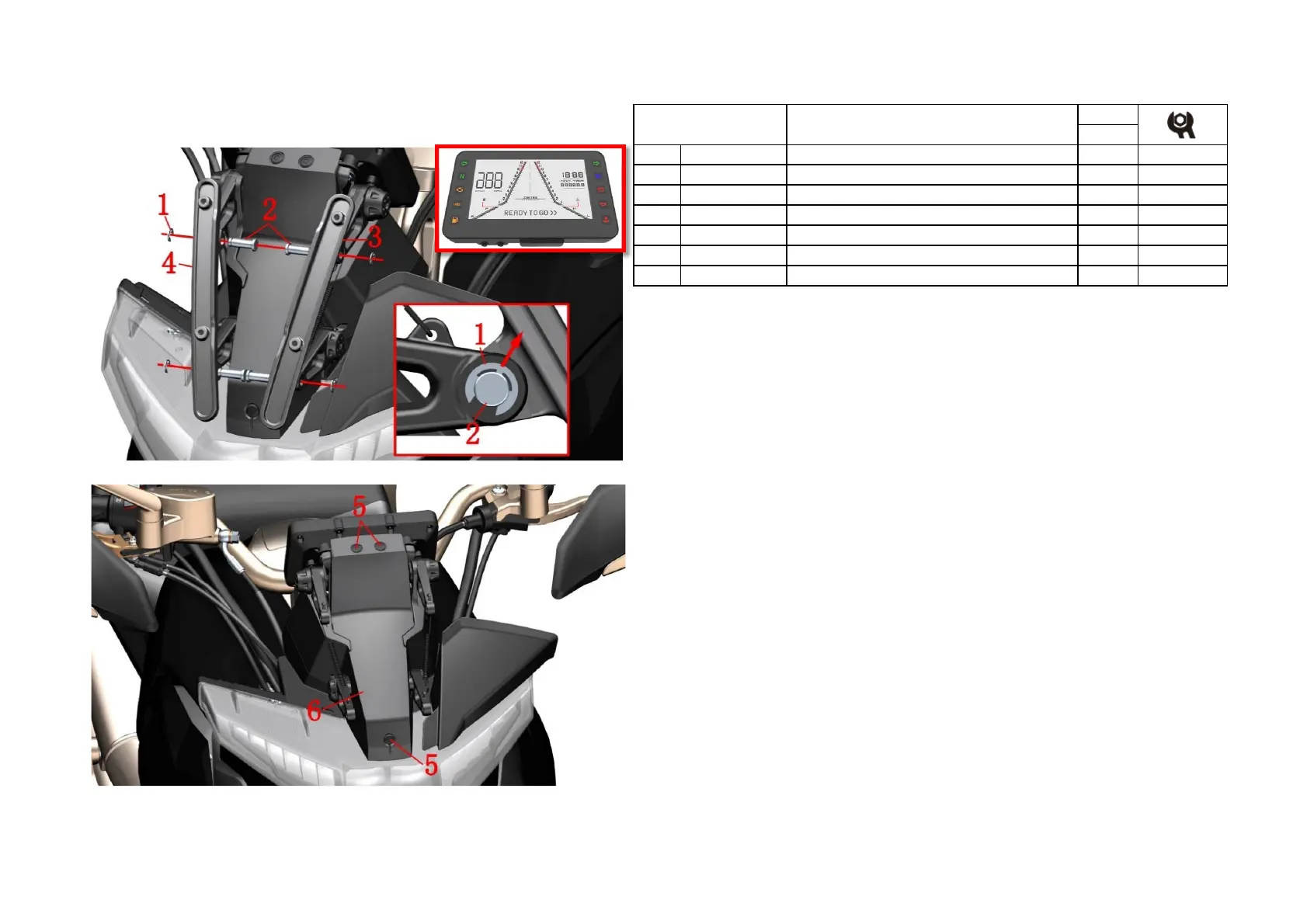

Fig. 9 FRONT FORK
COMPONENT
Windshield bracket component
(Electronic Instrument)
PROCEDURE:
●Windshield bracket
First remove the circlip (1) on the left side of the vehicle, remove the rotating shaft (2), and remove the left
bracket (3). Remove the right bracket (4) in the same way.
●The middle cover of the hood
Use a small Phillips screwdriver to push down the center of the expansion screw (5) and remove the expansion
pin. Remove the middle cover (6) of the hood.
CAUTION:
●The vehicle support should be fixed during the disassembly process to prevent accidents caused by dumping.
●Small circlips need to be properly kept.
