8、FUEL TANK COMPONENT 76
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224100-010000 ZT250-S expansion nail 2
2 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 2
3 1224200-053000 ZT310-R decorative cover grill 1

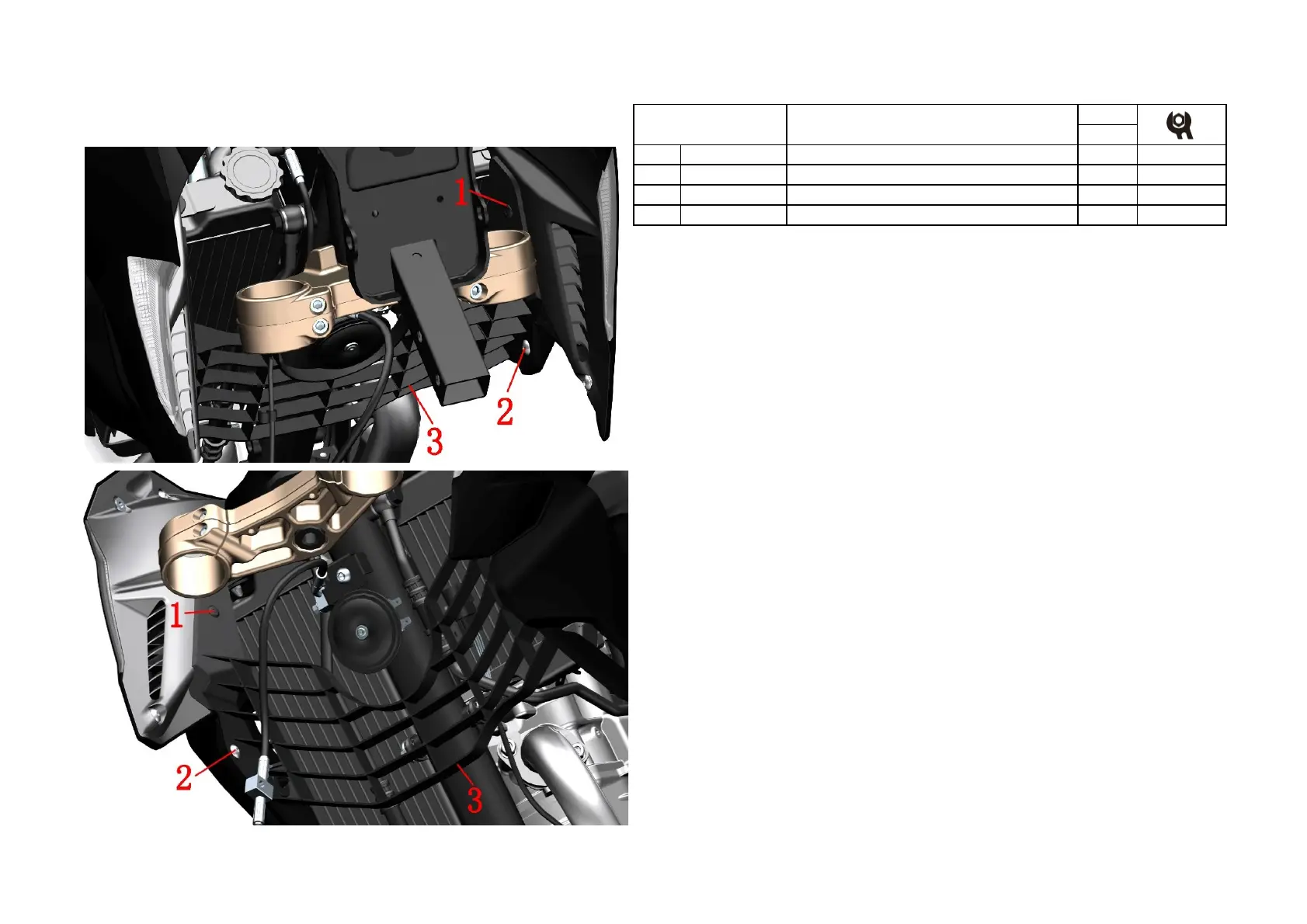

Fig. 3 FUEL TANK
COMPONENT
Decorative cover grill
PROCEDURE:
●Furniture cover grille
Remove the expansion screw (1) and the bolt (2).
Remove the decorative cover grille in one hand, and grasp the bottom of the fuel tank trim cover with one hand
and pull it out slightly, and remove the trim cover grille (3).
CAUTION:
●The material should be protected during the disassembly process to prevent damage to the paint surface.
