8、FUEL TANK COMPONENT 74
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224100-010000 ZT250-S expansion nail 4
2 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 2
A B
E

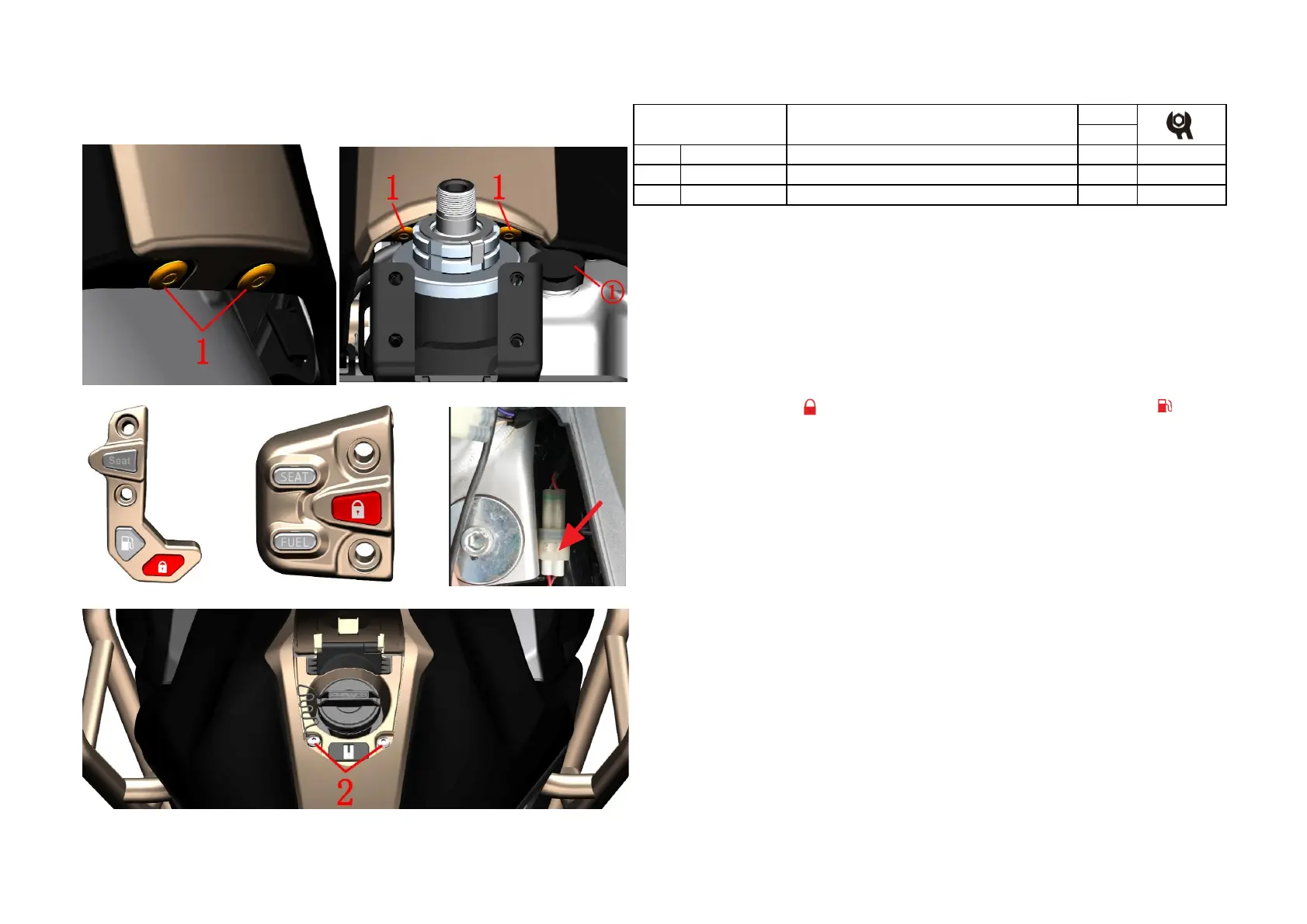

Fig. 1 FUEL TANK
COMPONENT
Fuel tank middle cover component
PROCEDURE:
●Middle cover component
Use a small Phillips screwdriver to push down the center of the expansion pin and remove the expansion pin (1)
at the rear of the middle cover component (Figure A).
Turn the front of the bike to the left and remove the expansion pin (1) on the right side of the front of the middle
cover (Figure B).
Turn the front of the bike to the right, open the sub tank cover ① and remove the expansion screw (1) on the left
side of the front part of the middle cover (Fig. B).
Short press the unlock button " "(Fig. C). After the power-on self-test is completed, short press" "(Fig. C)
to open the fuel tank cover.
Remove the bolt (2) (Figure E).
Grasp the head of the middle cover assembly and pull it up; grasp the tail of the middle cover assembly and pull
it up. Pay attention to the nylon cord ② of the fuel tank cap.
Locate the tank lock cable plug (Figure D) on the right side cover and the rear of the tank liner and remove the
middle cover component.
CAUTION:
●The material should be protected during the disassembly process to prevent damage to the paint surface.
●When removing the buckle, pay attention to the strength to prevent damage to the buckle.
