3、INTAKE SYSTEM COMPONENT 17
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1050954-009000 YH canister solenoid valve 1
2 1251100-101000 Non-standard bolt M6×12（304stainless steel） 2
3 1250303-010093 GB6177.1M6（environmental color） 1
4 1251300-063093 Plywood M6×11×15（environmental color） 2
5 1224200-158000
－
R Carbon tank II (with fuel pipe)
1
1244200-004000 TB41 Throttle valve desorption rubber tubing Delphi EFI
1244200-117000 ZT40 Throttle valve desorption rubber tubing Bosch EFI
●Carbon tank
Use a pair of pliers to clamp the pipe clamp at the outlet of the oil separator at the bottom of the tank
liner and remove the oil pipe.Remove the bolt(2) with the inner hexagon tool.Remove the carbon tank(5)
from the left of the frame and remove the plywood but(4).
●Desorption pipe
Clamp the pipe clamps at both ends of the desorption pipe with pliers and remove the desorption pipe(6).
●Canister solenoid valve
First remove the connector of the canister solenoid valve(1), then remove the nut(3) with the sleeve and
remove the solenoid valve.
6
1
CAUTION:
●It needs to remove the cushion,side cover oil tank outside cover and liner in advance.
●Regularly check the carbon canister and air filter element for poor ventilation. Otherwise, the oil supply may
affect the driving experience.
●There should be no folding or entanglement in the pipeline.

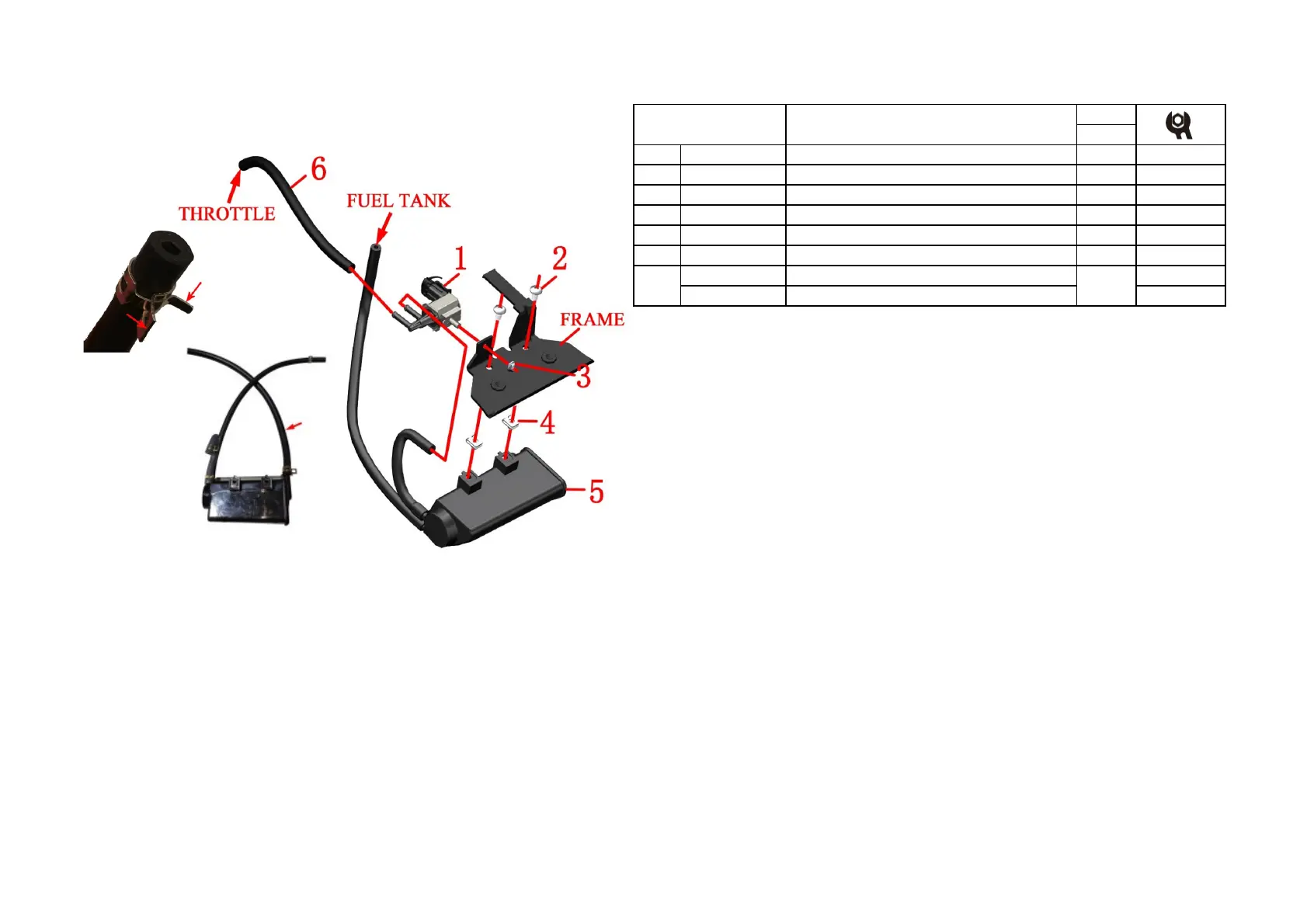

Fig.2 INTAKE SYSTEM
COMPONENT
Canister assembly
To Next Page
