Zontes ZT310-T EURO IV User Manual

13、LOWER SHROUD COMPONET 107
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 1
2 1250502-010093
GB96.1φ6
（
color zinc
）
1
3 1244100-004000
ZT250
－
S Flanging bushing buffer
3
4 1274100-007000
ZT250
－
S Flanging bushing(φ6.4×φ9×6
＋
φ20×2)
1
5 1274200-067000
ZT310
－
T front bracket of lower shroud
1
6 1224200-101000
ZT310
－
T lower shroud
1
5
PROCEDURE:
●Front bracket of lower shroud
Hold the front bracket of lower shroud tightly (5),remove bolt (1) and gasket (2).
●Lower shroud component
Remove 3 units of the flanging bushing (4) and the flange bushing buffer rubber (3) from lower shroud (6).
CAUTION：
●The shroud should be supported during disassembly to prevent fracture due to uneven force.

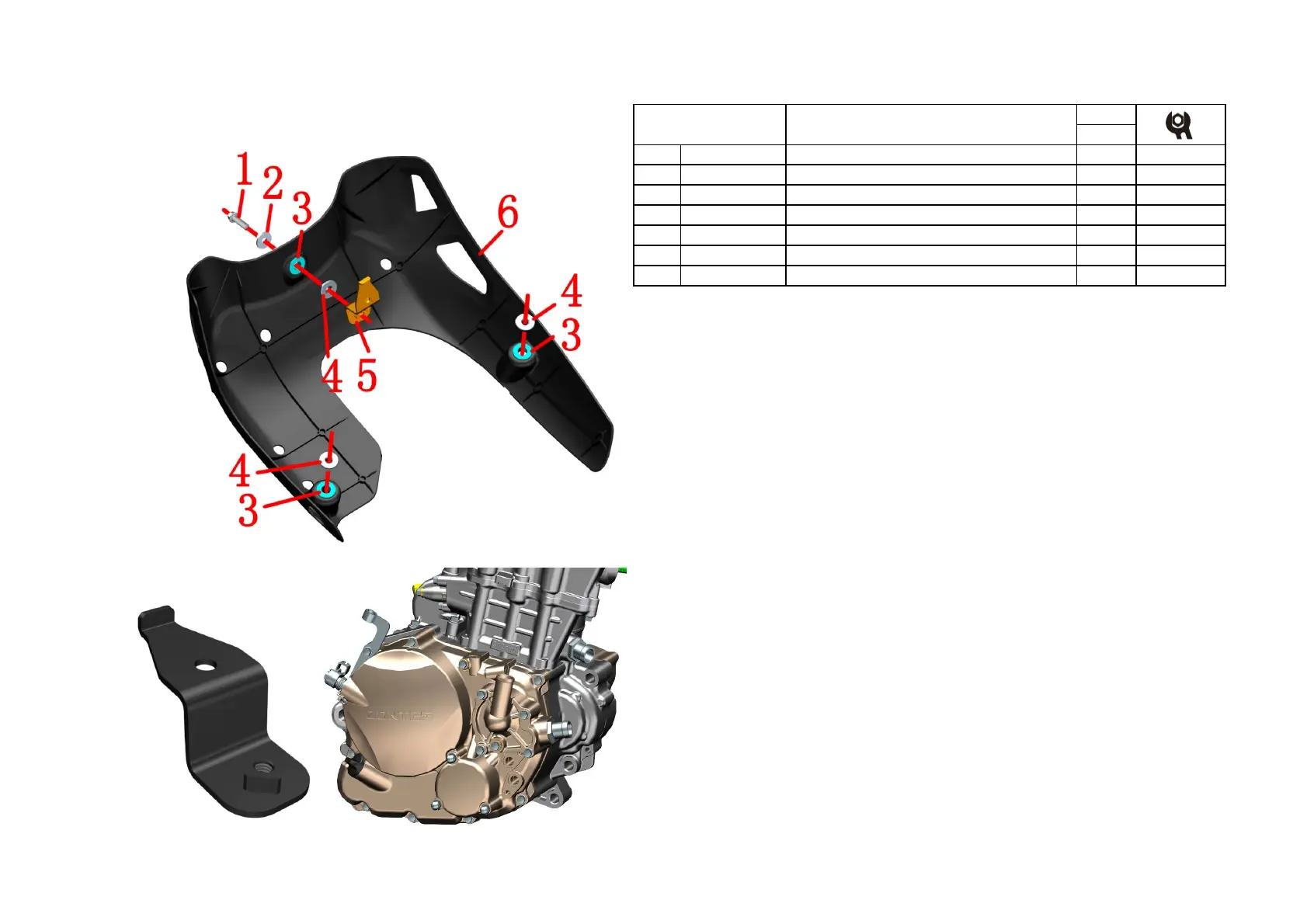

Fig.2 LOWER SHROUD
COMPONENT
Sliding clutch version lower shroud component
