7、FRONT FORK COMPONENT 64
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1244200-059021 ZT310-T left hand windshield hand gel 1
2 1250205-085000 GB70.1M6×70 (stainless steel) 2
3 1244200-077000 ZT310-T left hand protection decorative rubber strip 1
4 1244200-060021 ZT310-T right hand windshield hand gel 1
5 1244200-078000 ZT310-T right hand protection decorative rubber strip 1
6 1134200-009000 ZT310-T aluminum alloy left hand 1
7 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 4
8 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5 4
9 1244100-052000 Cuff bushing cushioning rubber (φ8.5×φ14×1) 4
10 1224200-087000 ZT310-T left hand windshield 1
11 1134200-007000 ZT310-T aluminum alloy right hand guard 1
12 1224200-088000 ZT310-T right hand windshield 1
PROCEDURE:
●Left hand guard components
Use a sharp tool to insert the larger end of the left hand gel (1), pick up the hand gel and tear it off. Clean the left
hand protector strip (3). Remove the bolt (2) with a hexagonal tool and remove the left hand component.
Remove the two bolts (7), remove the bushing (8), and the rubber pad (9). Separate the left hand guard (6) from
the left windshield (10).
●Right hand guard component
Follow the steps above to apply the right hand gel (4), the right hand guard rubber strip (5), the right hand guard
(11) and the right windshield (12).
CAUTION:
●The vehicle support should be fixed during the disassembly process to prevent accidents caused by dumping.
●Protective measures should be taken to prevent scratching of materials.
●Hand protection decorative rubber strip can be replaced by 3M double-sided tape.
●When reassembling, pay attention to align the limit boss of the hand guard with the groove of the direction
handle, and then tighten the bolt to prevent the hand guard from rotating.
Hand guard component

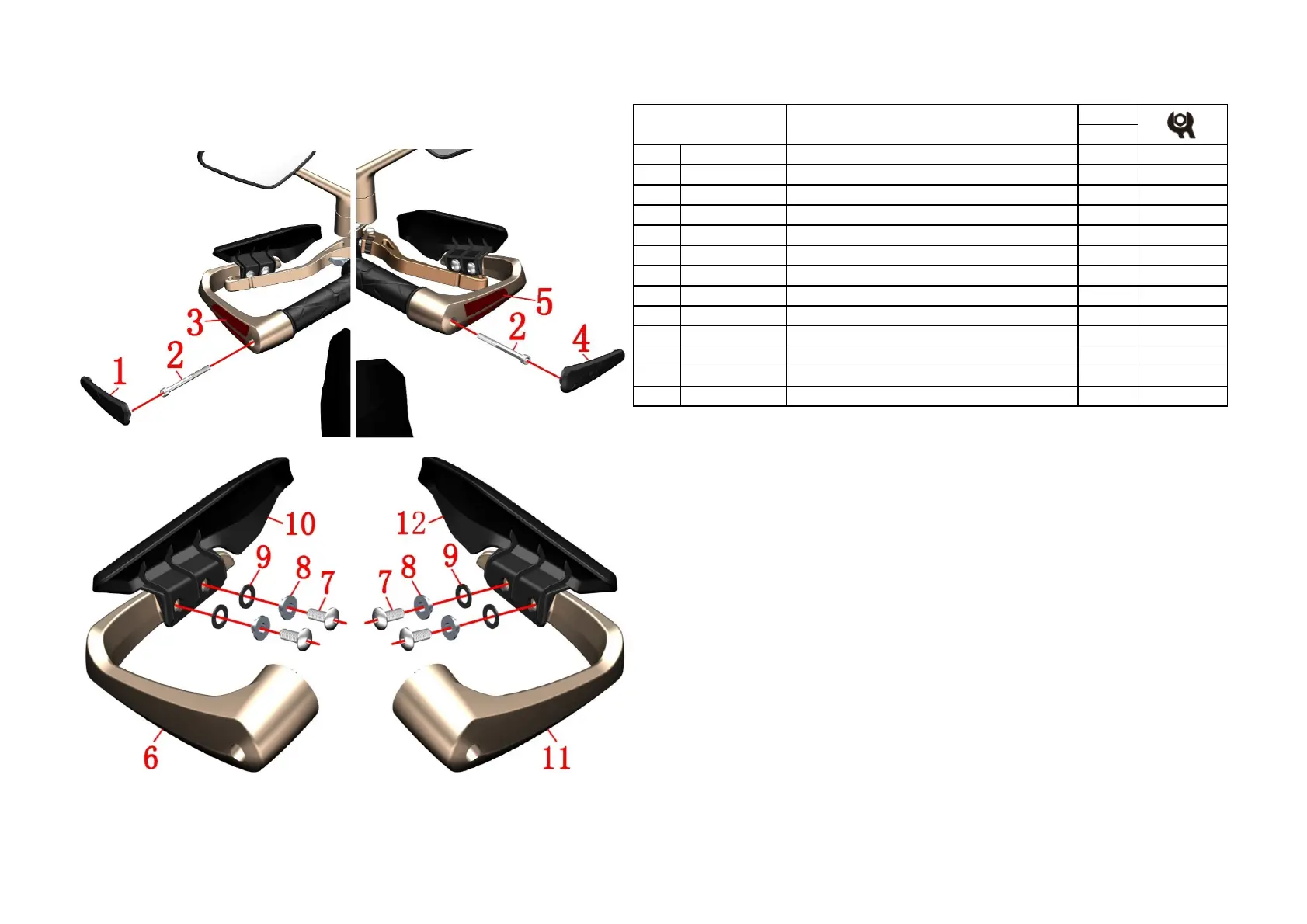

Fig. 21 FRONT FORK
COMPONENT
To Next Page
