Zontes ZT310-T EURO IV User Manual

3、INTAKE SYSTEM COMPONENT 16
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093
M6×22 Hexagon flange bolt
（
color zinc
）
2
2 1244200-117000 ZT40 Throttle valve desorption rubber tubing 1
3 1050954-035000
ZT310-R Fuel injector high pressure oil pipe unit 1
4 1051454-016000
45×2.5 Fluorine rubber O-ring 1
5 1050954-034000
ZT180MN Intake pipe assembly (Bosch) 1
6 1050954-023000
EV14 Fuel injector G48 1
7 1050968-002000
ZT1P58MJ Fuel injector fixator 1
8 1250105-138093
GB5789M6×20
（
color zinc
）
1
9 1051354-004000
Φ56×10 Hoop assembly 1
10 1050954-038000
Three-in-one valve body
⑽
1
11 1050954-025000
DLA-mini flangeless stepper motor 8mm 1
12 1050954-024000
CTS three-in-one sensor
1
after-sale
●
Throttle assembly
Use a wrench to remove the bolt (1), remove the throttle valve assembly, and remove the O-ring (4)
from the intake pipe assembly (5).Then press the anti-loose snap ring near the injector holder (7) and
remove the high pressure oil pipe,as shown in the lower right figure. Pull out the throttle valve desorption
rubber tube (2) from the throttle valve body, use a sleeve to remove the bolt (8) that fixes the injector
holder (8) to remove the holder, and remove the injector (6). Loosen the pipe clamp (9) between the
intake pipe assembly (5) and the three-in-one valve body (10), remove the bolts ① and ② with a cross-
shaped screw, and take out the stepping motor (11) and the three-in-one sensor (12).

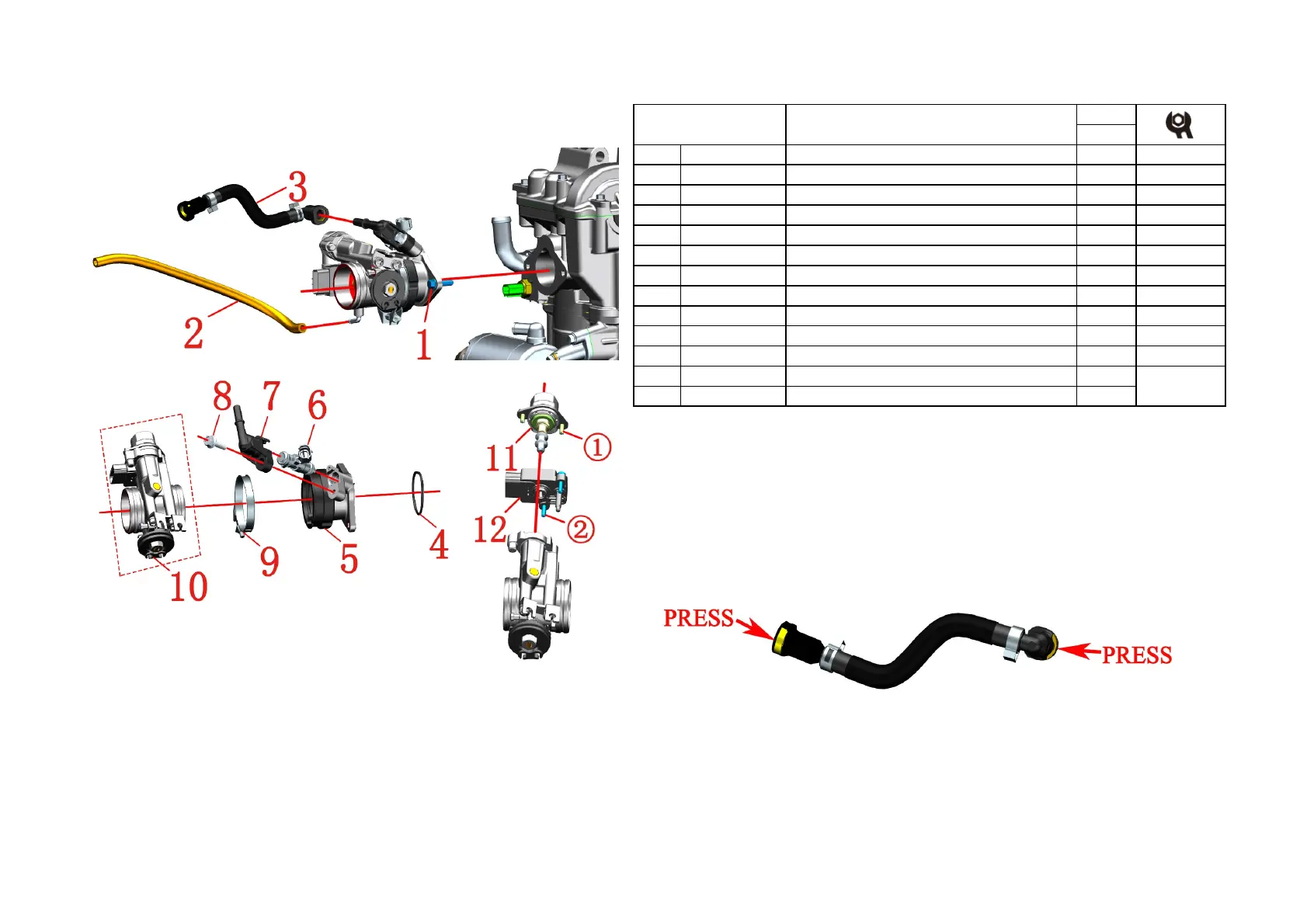

FIG.3 INTAKE SYSTEM
COMPONENT
Intake system component (Bosch EFI) 2
