7、FRONT FORK COMPONENT 51
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 4
2 1224200-072000 ZT310-T windshield left decorative cover 1
3 1224200-073000 ZT310-T windshield right decorative cover 1
4 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 4
5 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5+φ14×1.5 4
6 1244100-052000 Cuff bushing cushioning rubber (φ8.5×φ14×1) 4
7 1224200-071000 ZT310-T windshield 1
8 1251300-063093 Splint M6×11×15 (environmental color) 4

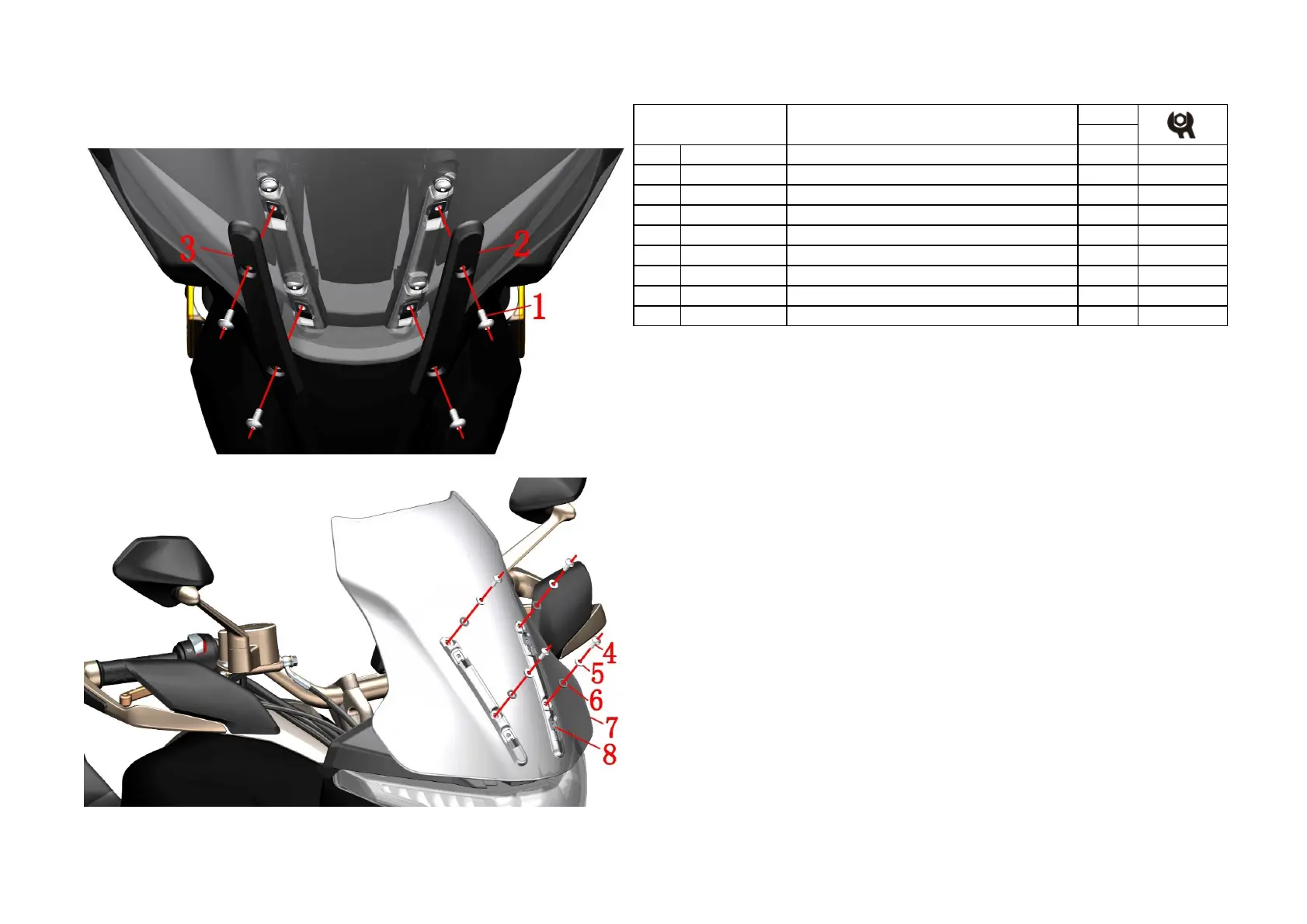

Fig. 8 FRONT FORK
COMPONENT
PROCEDURE:
●Windshield decorative cover
Remove the bolts (1) and remove the left decorative cover (2) and the right decorative cover (3).
●Windshield
Hold the windshield (7) in one hand, remove the bolts (4) in one hand, remove the flange bushing (5), and the
rubber pad (6); remove the windshield assembly. Remove the plate nut (8).
CAUTION:
●The vehicle support should be fixed during the disassembly process to prevent accidents caused by dumping.
●The windshield is easy to be scratched and must be protected.
●When reassembling, pay attention to the torque of the bolts should not be too large to avoid damage to the
windshield.
Windshield component
